Square D by Schneider Electric 9080GC6

B011NOMYWI

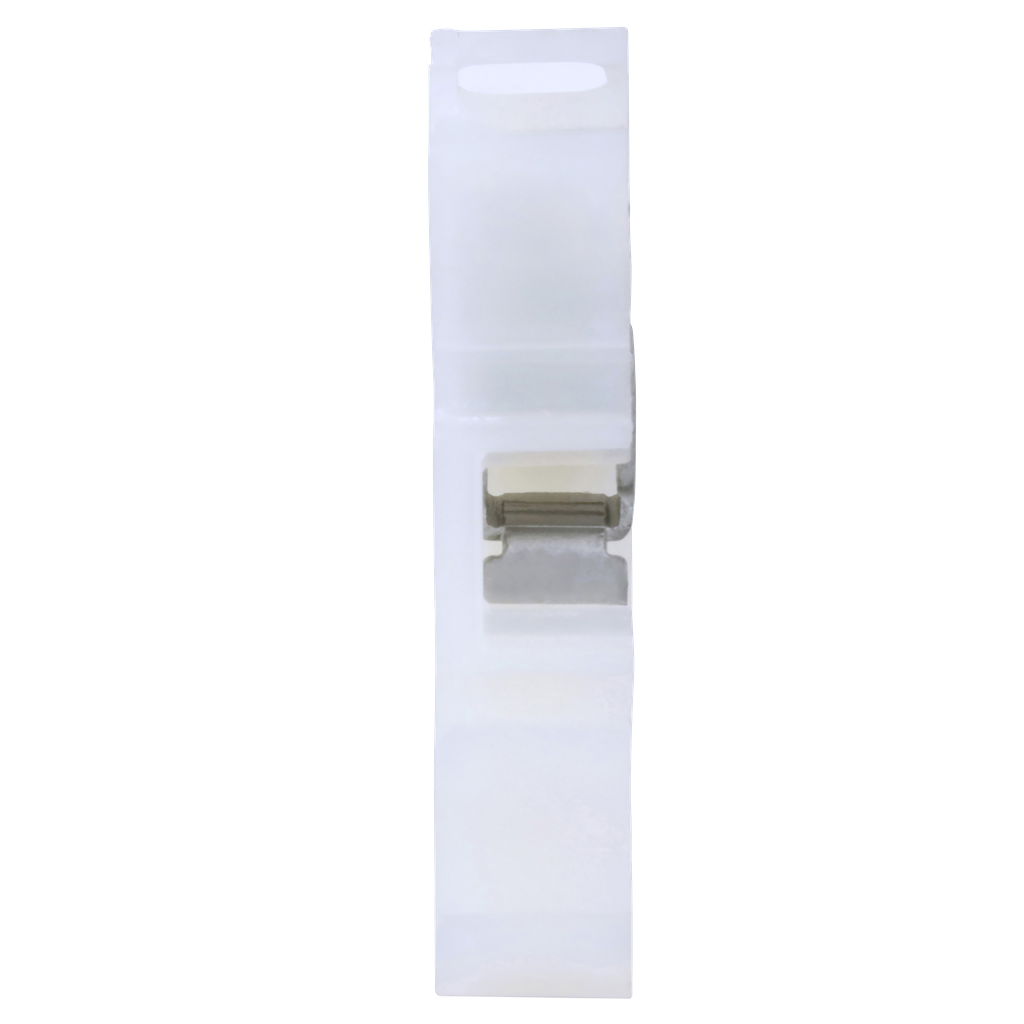

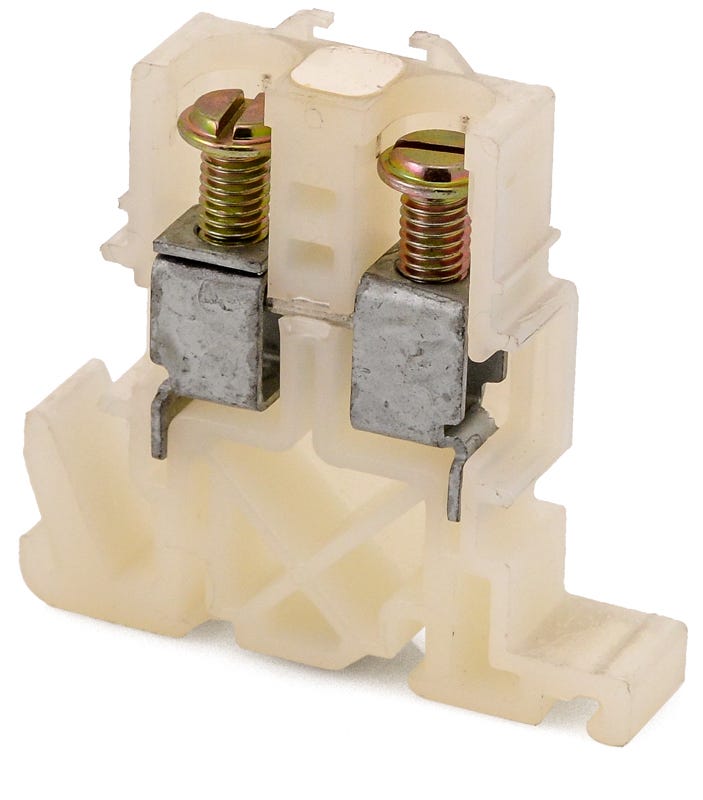

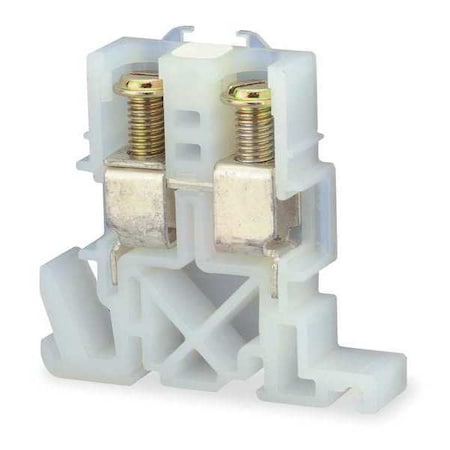

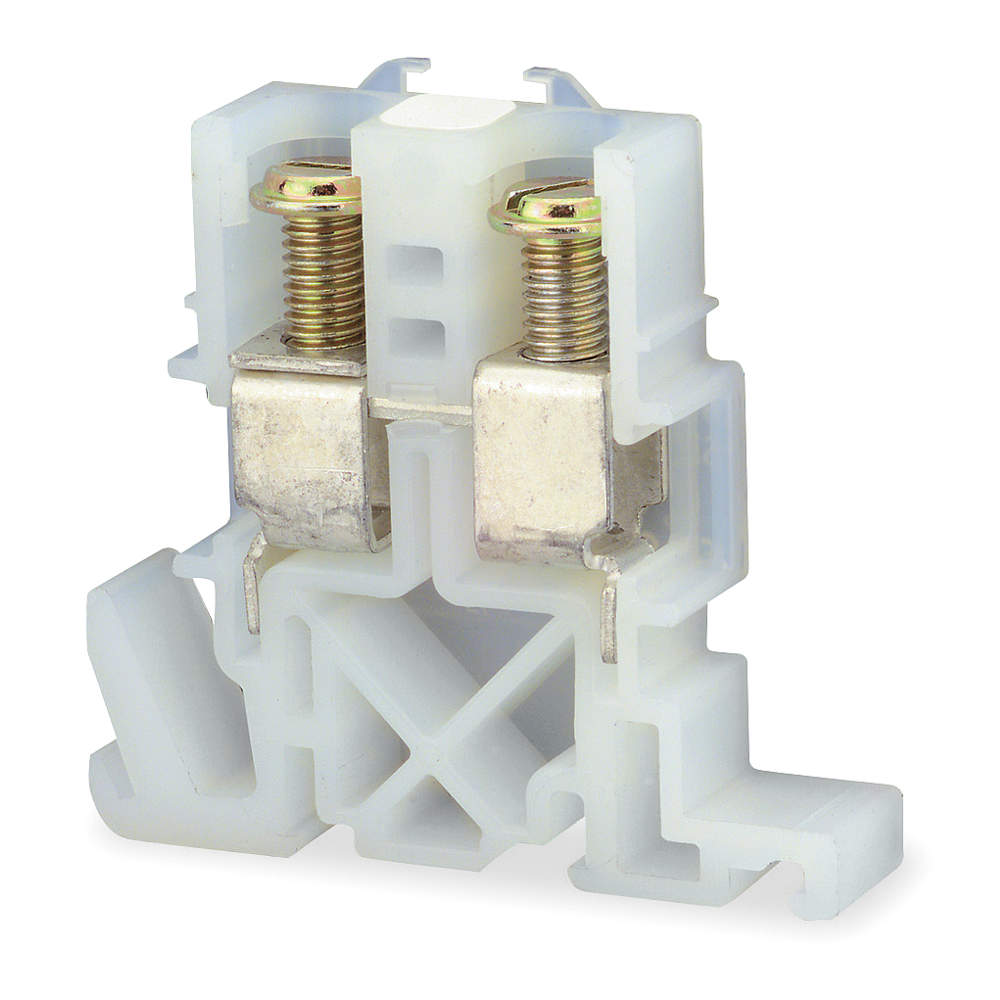

SQUARE D BY SCHNEIDER ELECTRIC 9080GC6 TERMINAL BLOCK, STANDARD, 18-4AWG

SQUARE D BY SCHNEIDER ELECTRIC 9080GC6 TERMINAL BLOCK, STANDARD, 18-4AWGzoom

Attributes

Key Value
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-257 ?F
Amperage85A
Amps110 A
Application9080G,GC6B
ApprovalUL Listed and CSA Certi.
Awg GaugeAWG 18...AWG 4 copper
BrandSquare D, Square D by S.
California Proposition .Lead and lead compounds.
Catalog Number9080GC6
Channel Size35mm/GH
China Rohs RegulationPro-active China RoHS d.
Colornatural
Color Familynatural
ConnectionLug zinc plated steel 3.
Connections - Terminals.AWG 18...AWG 4 copper)
Country of OriginMexico, 00 - Unknown
Current Rating110 A
Depth0.43 in, 1.99 in
ECCNEAR99
Electrical Connectionzinc plated steel box l.
End Barrier5B378
Eu Rohs DirectiveCompliant
For Channel Rail Size35 mm
For Fuse Diameter3 1/32 in
For Maximum Wire Size4 AWG
For Minimum Wire Size18 AWG
Gtin785901155065
Height2.13 in
ItemTerminal Block
Item TypeTerminal block;GC6B
Line Rated Current110-110 A UL || 85-85 A.
Localisation On Devicestandard
Made in USANo
ManufacturerSchneider Electric
MaterialNylon block;Tin plated .
Max. Wire Size4 AWG
Mercury FreeYes
Min. Wire Size18 AWG
MountingDin Rail
Mounting Support35 mm DIN rail || 9080G.
Mounting TypeDIN, Din Rail
Mpn9080GC6
Number of Connections2
Number of Levels1
Number of Poles1
Number of Positions1
Number Of Terminal Bloc.28 per foot
Overall Depth0.43 in
Overall Length2.13 in
Overall Width1.99 in
Pin Spacing10.92 mm
Poles1
Primary TypeDIN Rail Mount
Product CertificationsCE || CSA file 62144 cl.
Product CompatibilityGC6B
Product Or Component Ty.Terminal Block
Pvc FreeYes
Quantity Per Setset of 50
Range Of Product9080G
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Series9080G, 9080 Series
Size0.43
Special Featuresset of 50
StandardCE;CSA file 62144 class.
StandardsCE, CSA Approved, RoHS .
Terminal TypePass-Through
Toxic Heavy Metal FreeYes
TypeFeed-Through
UNSPSC39121410
UPC785901155065
Upc785901155065
UPC Code785901155065
Voltage600V, 600V AC
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width0.43 in, 1.99 in
Wire SizeAWG 18...AWG 4 copper, .
Wire Size Ranges18 AWG - 4 AWG
Wire Termination TypeBox Lug

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.com9080GC64.06124Square D4.06 @ 1
steinerelectric.com322964.73124Square D?4.73 @ 1
thumbzoomZoroG20817915.291979Square D0.055.29 @ 1
Graybar882502525.6672124Square D (Schneider Electric)5.6672 @ 1
thumbzoomNewark99F59905.9150In StockSQUARE D BY SCHNEIDER ELECTRIC5.91 @ 50
thumbzoommostelectric.com9080GC66.4419SQUARE D/TELEMECANIQUE6.44 @ 1
Grainger5B3797.114890SQUARE D7.1 @ 1
thumbzoomsustainablesupply.comC12036547.68124Square D0.057.68 @ 1
thumbzoommayerelectric.comSQD9080GC67.991In StockSQUARE D7.99 @ 1
us.rs-online.com700077578.161172Square D8.16 @ 1
thumbzoomcrescentelectric.com1658008.6319Square D by Schneider Electric8.63 @ 1
thumbzoomRaptor SuppliesAG7CHR10.72656124SQUARE D10.72656 @ 1
thumbzoomNational Supply Network6968255717.31124Square D17.31 @ 1
standardelectricsupply.com2182009239.0124Square D239.0 @ 1
