Magnecraft / Schneider 788XCXRM4L-12D

B07SLM5HH8

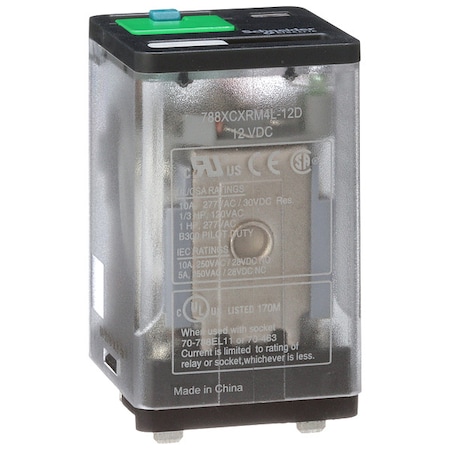

788XCXRM4L-12D, Blade Terminal Relay 3PDT 10A@250VAC 12VDC Coil Full-Feature Cover

788XCXRM4L-12D, Blade Terminal Relay 3PDT 10A@250VAC 12VDC Coil Full-Feature Coverzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 277V, 10 A @ 277 V
Base Type - Plug In Rel.Square
Body Depth2.09 in
Body Depth - Relay1.38", 1.38 in
Body Height1.4 in
Body Height - Relay2.09 in, 2.09"
Body Width1.38 in
Body Width - Relay1.40", 1.4 in
BrandSchneider Electric
Coil Voltage12 VDC
Coil Volts12V DC, 12VDC
Contact Current Rating10 A
Contact Form3PDT
Contact Form - Relay3PDT
Contact MaterialSilver Alloy
Contact Voltage Rating250 VAC
Control Voltage12
Country of Origin00 - Unknown
Current Rating10 A
Current Stock40
DC Contact Rating - Rel.10A @ 28V, 10 A @ 28 V
Family SeriesSchneider Miscellaneous
Flat Pin Width0.189 in
Gross Weight0.19 lbs
HP @ 120V1/3 hp, 1/3
HP @ 240V1/2
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number788XCXRM4L-12D
ManufacturerSchneider
Manufacturer Part NumberC883005M
Mounting - RelayPlug In
Mpn788XCXRM4L-12D
Net Weight0.19 lbs
Number of Pins - Relay11
Overall Depth2.09 in
Overall Height - Relay2.09 in, 2.09"
Power Consumption - Rel.1.4 W, 1.4W
Primary TypePower Relays
Push To TestLockable
Relay TypeElectromechanical
Series788R Series
SKUZO-G9988711
SocketMfr. No. 70-463-1, 70-1.
Socket Code - RelayC
StandardsUL Listed, CSA Certifie.
Status IndicatorLED and Mechanical Flag
SubCategoryElectrical
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com788XCXRM4L-12D18.015120Magnecraft / Schneider Electric18.015 @ 1
thumbzoomZoroG998871119.99154Schneider Electric0.1919.99 @ 1
thumbzoomGalco788XCXRM4L-12D-MGCR22.2719Schneider0.1922.27 @ 1
grainger.caWWG35KR7629.895949141In StockSCHNEIDER ELECTRIC0.1929.89594914 @ 1
thumbzoomsimsupply.comZO-G998871131.79140Schneider Electric31.79 @ 1
us.rs-online.com7056138642.381In StockSchneider Electric/Legacy Relays42.38 @ 1
thumbzoomNewark36X199247.2111SCHNEIDER ELECTRIC/LEGACY RELAY47.21 @ 1
thumbzoomRaptor SuppliesAH4TNY48.6047251In StockSCHNEIDER ELECTRIC48.604725 @ 1
