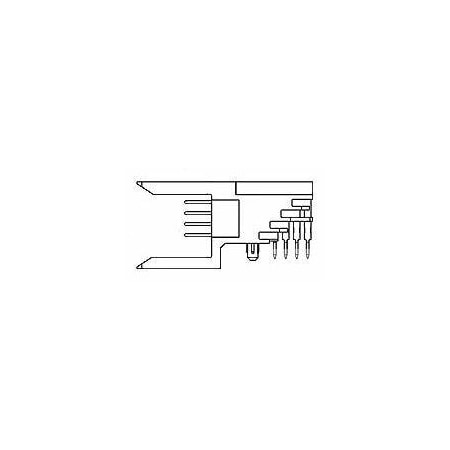

TE Connectivity 5223514-1

mpn5223514-1
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

TE Connectivity Part Number 5223514-1

TE Connectivity Part Number 5223514-1

zoom

Brand: TE Connectivity
PartNumber: 5223514-1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Application	Power, Signal
Base Product Number	5223514
Category	Connectors, Interconnec.
Color	Natural
Connection Material	Phosphor Bronze
Connector Style	Futurebus
Connector Terminates To	Printed Circuit Board
Connector Type	Header, Male Pins
Connector Usage	-
Contact Finish	Gold, Gold over Palladi.
Contact Finish Thickness	-
Contact Layout, Typical	-
Contact Plating Thickne.	0.05 ?m
Contact Type	Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HDR FUTUREBUS 24PO.
Detailed Description	24 Connector Header, Ma.
Digi-Key Part Number	5223514-1-ND
Features	Board Guide
Height	11.2 mm
Hole Center to Center	2 mm
Item	PCB Mount Header
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	5223514-1
Manufacturer Standard L.	16 Weeks
Material	Liquid Crystal Polymer
Material Flammability R.	UL94 V-0
Max. Temp.	125?C
Max. Voltage	30V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Board Edge, Through Hol.
Number of Columns	-
Number of Contacts	24
Number of Positions	24
Number of Positions Loa.	All
Number of Rows	4
Operating Temperature	-55?C ~ 125?C
Package	Tube
Package Quantity	1
Pitch	0.079" (2.00mm)
Product Status	Active
Series	Z-PACK, Signal
Terminal Finish	Tin Plated
Terminal Type	Through Hole - Press-Fit
Termination	Press-Fit
Voltage Rating	30V
Width	0.622 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Avnet	5223514-1	3.859	1960	25		TE Connectivity / AMP		3.859 @ 1960
	Waldom	TE CONNECTIVITY AMP BRAND 5223514-1	5.09	49	1393		TE CONNECTIVITY/AMP BRAND		5.09 @ 49
	Newark	19R1823	6.04	1960	In Stock		AMP - TE CONNECTIVITY		6.04 @ 1960
	us.rs-online.com	72135513	6.83	1960	In Stock		TE Connectivity		6.83 @ 1960
	Digi-Key	2270281	7.28489795918	49	1393		TE Connectivity AMP Connectors		7.28489795918 @ 49
	Hotenda	H716518	7.87	1	25		TE Connectivity AMP Connectors		7.87 @ 1
	Onlinecomponents.com	5223514-1	13.77	1	1848		TE Connectivity / AMP Brand		13.77 @ 1
	Zoro	G800939637	340.55	1	In Stock		Te Connectivity		340.55 @ 1
