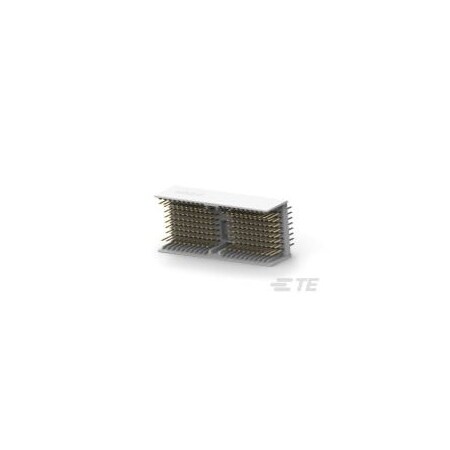

TE Connectivity 5646356-1

B00KTXM7W2

B011OO8UNY

B011OO8UNYzoom

Attributes

Key Value
AdvancedTCA Specified P.No
Alternate Part No.571-5646356-1
Backplane ArchitectureMezzanine
Base Product Number5646356
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2?mm?[?.078?in?]
Circuit ApplicationSignal
CompactPCI DesignationNone
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleD 22
Connector SystemBoard-to-Board
Connector TypeHeader, Male Pins
Connector UsageBackplane
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.5
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Mating Area Pla.Performance Based
Contact Mating Area Pla..76??m?[?30??in?]
Contact PlatingGold
Contact TypePin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)1.5 A
Data Rate?1
DescriptionCONN HEADER 220POS 2MM .
Detailed Description220 (176 + 44 Ground) P.
Digi-Key Part NumberA97818-ND
FeaturesBoard Guide
Housing ColorGray
Housing MaterialPolyester, Polyester - .
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5646356-1
Manufacturer Product Nu.5646356-1
Manufacturer Standard L.12 Weeks
Mating Alignment TypeMulti-Purpose Center
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Columns25
Number of Positions220 (176 + 44 Ground), .
Number of Positions Loa.All
Number of Rows10, 8 + 2
Number of Signal Positi.176
Operating Temperature-55?C ~ 125?C
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
PackageTube
PackagingTube
Packaging MethodTube
Packaging Quantity10
Part StatusActive
PCB Connector Assembly .PCB Mount Header
PCB Mount OrientationVertical
Pitch0.079" (2.00mm)
Product CategoryHard Metric Connectors
Product StatusActive
Product TypeHeaders
Rows LoadedA, B, C, D, E, F, G, H,.
SealableNo
SeriesZ-Pack HM, Z-Pack
TerminationPress-Fit
TradenameZ-Pack
UL Flammability RatingUL 94V-0
Voltage Rating750Vrms
