- mpnFD12CM2P
- brandname: U.S. Motors
- manufacturername: U.S. Motors

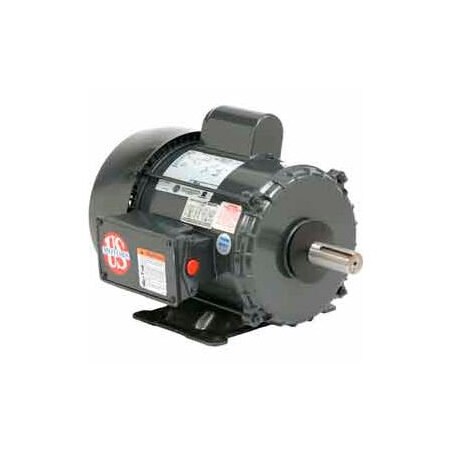

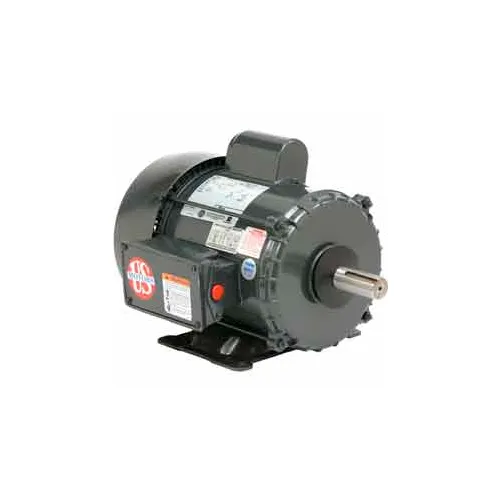

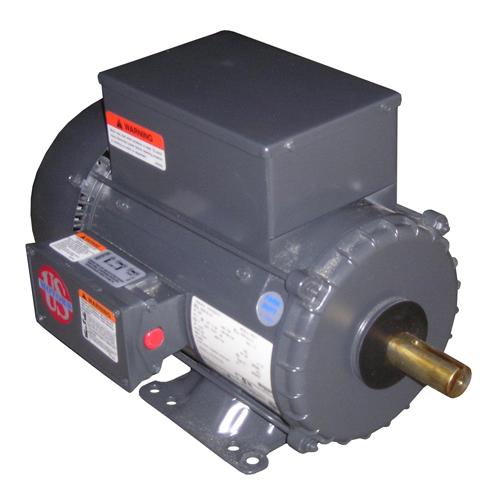

US Motors (Nidec) FD12CM2P Farm Duty - Auger Drive Motor - 1 ph, 1/2 hp, 1800 rpm, 115/230 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz
- Brand: US Motors (Nidec)
- PartNumber: FD12CM2P
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 9.0/4.5 |
| applications: | Agricultural |
| base rpm: | 1725 rpm |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| duty / condition type: | Continuous Duty |
| Efficiency | 63.7% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| enclosure type: | TEFC (Totally Enclosed . |
| Estimated Weight | 29.23 |
| Family Series | US Motors Motors |
| FL Amps | 9.0/4.5 |
| FL Efficiency | 63.7 |
| Frame | 56 |
| frame material: | Steel |
| frame size: | 56 |
| Frequency | 60 Hz |
| frequency rating: | 60 Hz |
| full load current: | 9.00 / 4.50 A |
| full load efficiency: | 63.70 % |
| Gross Weight | 26.57 lbs |
| harmonization code: | 8501.40.4040 |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Insulation Class | F |
| insulation class: | F |
| Item | Motor,1/2HP,1725RPM,115. |
| Item Number | FD12CM2P |
| Kilowatts | 0.4 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063CJY1150015B |
| Manufacturer Part Number | FD12CM2P |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063CJY1150015B |
| motor category: | Auger Drive Motor |
| motor horsepower: | 0.50 hp, 1/2 hp |
| motor phase: | 1 ph |
| motor poles: | 4-pole |
| motor supply voltage: | 115/230 V |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| mounting type: | Rigid Base |
| nema design class: | N |
| NEMA Frame | 56 |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | Manual |
| Package Quantity | 1 |
| Part Number | FD12CM2P |
| Phase | 1 |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| Service Factor | 1.15 |
| shaft diameter: | 0.63 in |
| Ship Weight | 27 lbs. |
| Speed (RPM) | 1725 |
| standards met: | NEMA |
| synchronous rpm: | 1800 rpm |
| Thermal Protection | Manual |
| thermal protection: | Manual |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230 |
| weight: | 26.57 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | FD12CM2P | 193.75 | 1 | In Stock | | U.S. Motors | 27.0 | 193.75 @ 1 |
 | National Supply Network | B468016 | 219.94 | 1 | In Stock | | US MOTORS | | 219.94 @ 1 |
 | Global Industrial | WBB468016 | 225.95 | 1 | In Stock | | US Motors | | 225.95 @ 1 |
 | motionindustries.com | 00534975 | 275.31 | 1 | In Stock | | US Motors (Nidec) | | 275.31 @ 1 |
 | motorsandcontrol.com | FD12CM2P | 314.03 | 1 | In Stock | | US Motors (Nidec) | 29.23 | 314.03 @ 1 |
 | Galco | FD12CM2P-USM | 321.51 | 1 | In Stock | | US Motors | 26.57 | 321.51 @ 1 |
 | Zoro | G908450157 | 321.99 | 1 | In Stock | 11 | U.S. Motors | | 321.99 @ 1 |
