Scotchlok MV10-14FLX

mpnMV10-14FLX
brandname: 3-M
manufacturername: 3-M

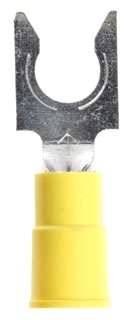

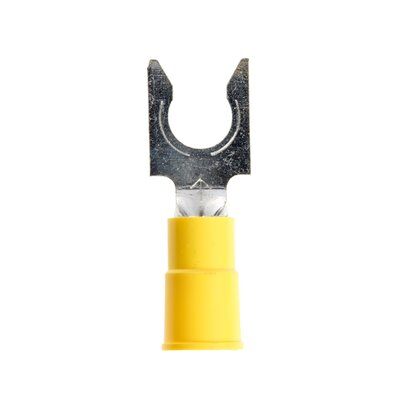

3M (MV10-14FLX) Locking Fork Vinyl Insulated, 50/Bottle

Brand: Scotchlok
PartNumber: MV10-14FLX
PackageQuantity: 50
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MV10-14FLX
Allowable Gauge Range	12 - 10
Alternate Mfr Part Numb.	00051128588284
Barrel Length Type	Brazed
Barrel Size	0.135 in ID
Barrel Type	Brazed
Base Product Number	MV10
Brand	3M
Category	Electrical Terminals, C.
Clearance	0.44 in
Color	Yellow
Color Family	Yellow
Colour	Yellow
Conductor Size	12 to 10
Conductor Type	Insulated
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	ETP Copper, Copper, ETP
Contact Plating	Tin
Country of Origin	US - United States, USA

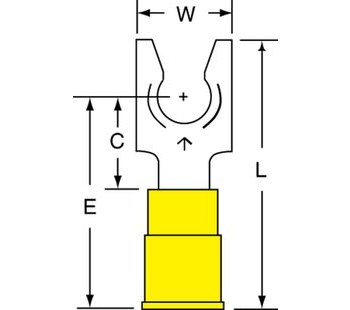

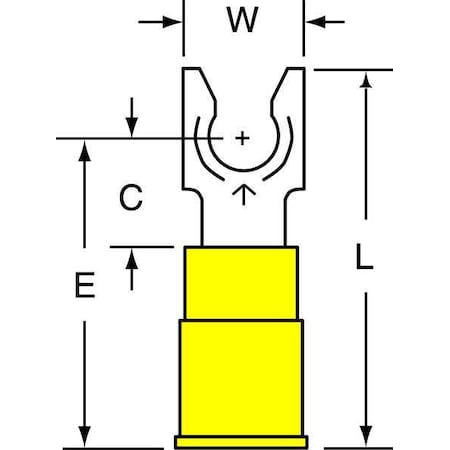

Dimensions	0.43 in W x 0.04 in THK
ECCN	EAR99
Fastening Mechanism	Locking
Features	Brazed Seam
Finish	Tin-Plated
Fork Width	0.43 in
Inside Diameter	0.135 in
Insulation	Insulated
Insulation Color	Yellow
Insulation Diameter	0.250" (6.35mm)
Insulation Length	0.99 in
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Fork Terminal
Length	1.24
Length - Overall	1.240" (31.50mm)
Length - Ring Center to.	0.440" (11.18mm)
Length - Termination	0.550" (13.97mm)
Manufacturer	3M
Material	Copper, ETP Copper, Vin.
Material - Insulation	Vinyl
Material:	PVC
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.25 in
Maximum Operating Tempe.	221 ?F
Maximum Voltage	600 V
Maximum Wire Size	10 AWG
Maximum Wire Size AWG	10AWG
Mfr	3M
Minimum Conductor Leg D.	12 AWG
Minimum Wire Size	12 AWG
Minimum Wire Size AWG	12AWG
Mounting Type	Free Hanging (In-Line)
No. of Pieces	50 Pc.
Number Of Terminals:	50 per bottle
Overall Length	1.24 in, 31.5mm, 1.240"
Overall Width	0.43 in
Package	Bulk
Package Quantity	50 per bottle, 500 per .
Packaging	50 per Package
Primary Type	Fork
Product Status	Active
Seam	Brazed
Series	MV, Scotchlok?, Scotchl.
Shop By	Closeouts
Shrouded/Unshrouded	Unshrouded
Standard:	UL and CSA
Standards	CSA Certified, UL Liste.
Stud Size	1/4in, 1/4 in, 1/4 in.,.
Stud/Tab Size	1/4 Stud
Sub Brand:	Scotchlok
Tab Size	0.145 in
Temperature Rating (Deg.	-40 to 221
Terminal Connection	Crimp
Terminal Size:	12 - 10 AWG
Terminal Type	Locking, Spring, Snap
Termination	Crimp
Thickness	1.02mm
Tongue Inside Opening	-
Tongue Width	0.43 in
Tongue Width - Wire Con.	0.43 in
Trade Name	Scotchlok
Type	Fork Tongue, Locking
Type:	Fork
UNSPSC	39121432
UPC	051128588284
UPC Code	51128588284
Voltage Rating	600 to 1000
Width	10.92mm
Width - Outer Edges	0.430" (10.92mm)
Wire Gauge	10-12 AWG
Wire Range	12 to 10 AWG
Wire Size	10-12 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
turtle.com	MMM MV10-14FLX	1.23	1	50		3M		1.23 @ 50
us.rs-online.com	70290394	1.414	50	50		3M		1.414 @ 50
RS Delivers	837-7279	1.4724	50	50		3M		1.4724 @ 50
Platt.com	0063599	1.65	1	300		3M		1.65 @ 50
grainger.ca	MMMMV10-14FLX	11.42418644	1	50		3M	0.36	11.42418644 @ 50
Zoro	G0279054	28.27	1	242		3M	0.25	28.27 @ 50
Dale-Electric	MV10-14FLX	45.26	1	50		3M		45.26 @ 50
rshughes.com	051128-58828	50.0	50	50		3M		50.0 @ 50
standardelectricsupply.com	2305594	50.42	1	50		3M		50.42 @ 50
gordonelectricsupply.com	MV10-14FLX	51.8	1	50	455	3-M		51.8 @ 50
Digi-Key	3865777	57.5914	1	50		3M		57.5914 @ 50
Raptor Supplies	AA8TMM	60.627411	1	50		3M		60.627411 @ 50
Newark	66W6116	80.68	1	50		3M		80.68 @ 50
electricalparts.com	MV10-14FLX	91.9856	1	50		3M		91.9856 @ 50
Graybar	25323493	159.208	1	50		3M		159.208 @ 50
