ARO P39124-100

B01M05MHQG

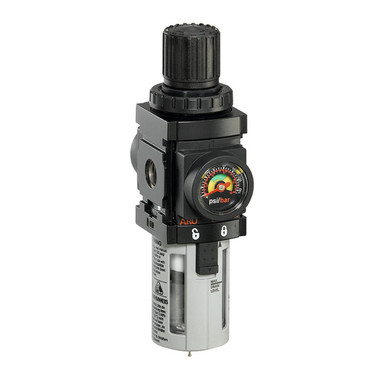

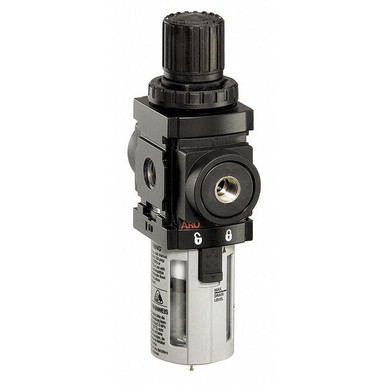

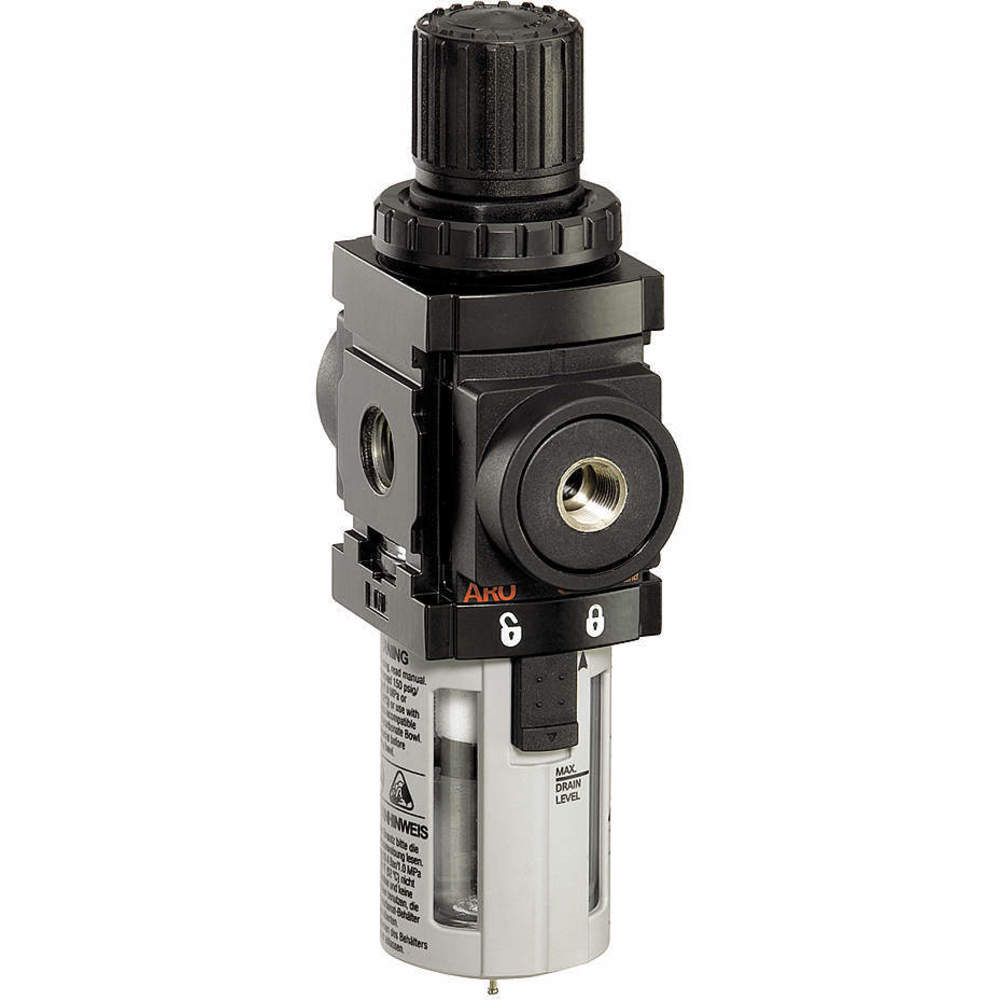

Filter/Regulator, 6.20 In. H, 2.91 In. W

Filter/Regulator, 6.20 In. H, 2.91 In. Wzoom

Attributes

Key Value
Adjustment KnobStandard
Adjustment MechanismKnob
Adjustment Range - Air .0 to 140 psi
Air Inlet Size1/4 in
Air Inlet TypeNPT
Air Outlet Size1/4 in
Air Outlet TypeNPT
Body MaterialAluminum
Bowl Material - Air Tre.Polycarbonate
Bowl Size0.5 oz.
Bowl Size - Air Treatme.0.5 oz
BrandAro
Connection Size - Air T.1/4 in NPT
Current Stock97
Differential Pressure I.No
Drain IncludedYes
Drain Part Compatibility104298
Drain TypeManual
Filter Bowl Capacity0.5 oz
Filter Bowl Guard Inclu.Yes
Filter Bowl MaterialPolycarbonate
Filter Element MaterialPolyethylene
Filter Rating5 micron
Filter Rating - Air Tre.5 micron
For Fluid TypeOil, Particles, Water
For Substance TypeOil, Particles, Water
Gauge Port Size1/8 in
IncludesPanel Nut
International ShippingNo
ItemFilter-Regulator
Item - Filter-RegulatorsFilter-Regulator
Max. Flow - Air Treatme.47 cfm
Max. Incoming Pressure .140 psi
Max. Temp.125 Degrees F
Maximum Flow Rate47 cfm
Maximum Operating Press.150 psi
Maximum Operating Tempe.125 Degrees F
Maximum Regulated Press.140 psi
Minimum Operating Tempe.23 Degrees F
Minimum Regulated Press.0 psi
Modular ConnectionModular Connection
MpnP39124-100
Number of Air Inlets1
Number of Air Outlets1
Overall Depth2 15/16 in
Overall Height6 3/16 in, 6.2 in
Overall Width2.91 in, 1 9/16 in
Pipe Size1/4" NPT
Pressure Drop33 psi
Pressure Gauge IncludedNo
Pressure Gauge Port Size1/8 in
Pressure Gauge Port TypeNPT
Regulator TypeRelieving
Series1000
Size - Air TreatmentCompact
SKUZO-G8532535
SubCategoryPneumatics
System LocationAir Line
UPC0663023054438

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomintlairtool.comP39124-10047.641In Stock77Ingersoll Rand0.6547.64 @ 1
thumbzoomZoroG853253548.191148Aro0.6448.19 @ 1
thumbzoomburtprocess.comP39124-10062.14160ARO62.14 @ 1
grainger.caAROP39124-10062.281412861In StockINGERSOLL RAND0.4962.28141286 @ 1
thumbzoomsimsupply.comZO-G853253563.95197Aro63.95 @ 1
thumbzoomsustainablesupply.comC168837165.621In StockARO0.6465.62 @ 1
AmazonTPB01M05MHQG80.321In Stock2Aro80.32 @ 1
AmazonUNKB01M05MHQG80.321In StockAro80.32 @ 1
thumbzoomRaptor SuppliesAD9CPZ99.6005791In StockARO99.600579 @ 1
