- mpnAOM3617T
- brandname: Baldor
- manufacturername: Baldor

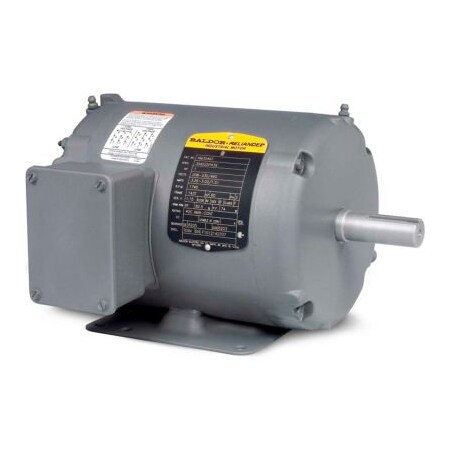

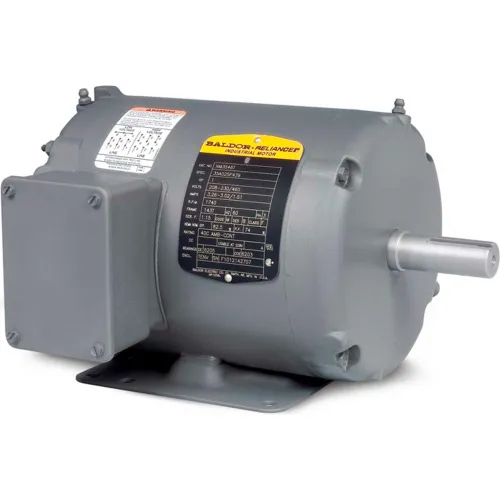

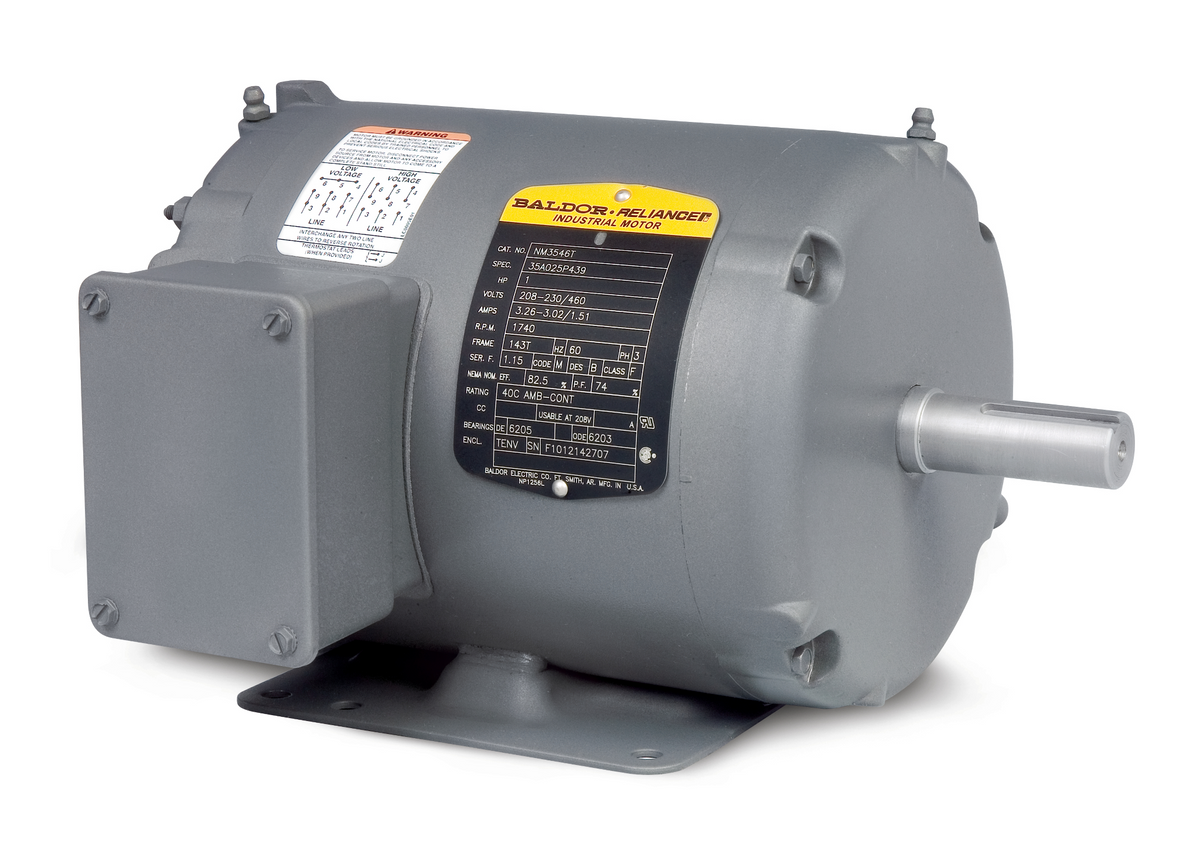

Baldor AOM3617T 1HP 850RPM 3PH 60HZ 182T 3623M TEAO F1
- Brand: Baldor Electric Motors
- PartNumber: AOM3617T
Attributes
| Key | Value |
|---|
| Amps | 2.2/4.2/4.4 |
| Application | HVAC |
| Approvals | CSA, UL |
| Bearings | Ball |
| Construction | Cast Iron |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 74.0% |
| Efficiency % | 74 % |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 62.00 |
| Family Series | Baldor Motors, AOM Seri. |
| FL Amps | 4.9-4.4/2.2 |
| FL Efficiency | 74 |
| Frame | 182T |
| Frame Type | 182T |
| Gross Weight | 58 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| Horsepower Rating | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | AOM3617T |
| Manufacturer | Baldor-Reliance, Baldor. |
| Manufacturer Model # | 36G256T755H1 |
| Manufacturer Part Number | AOM3617T |
| Maximum Ambient Tempera. | 40? C |
| Motor Construction | Steel |
| Motor Amperage (Full Lo. | 2.200 Amp, 4.400 Amp, 4. |
| Motor Enclosure Type | Totally Enclosed Air Ov. |
| Motor Frame Model | 182T |
| Motor Frequency | 60 Hz |
| Motor Horsepower | 1 hp |
| Motor Insulation Class | Class F Insulation |
| Motor Nema Design | Nema Design J |
| Motor RPM's | 900 RPM |
| Motor Voltage | 208 Volt, 230 Volt, 460. |
| Motor Voltage Phases | 3 Phase |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed, Foot Mount, Rig. |
| NEMA Frame | 182T |
| Net Weight | 58 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Poles | 8 |
| Number of Speeds | 1 |
| Overall Length | 13.62 ", 13.62" |
| Part Number | AOM3617T |
| Phase | 3, 3 Phase |
| Product Series | AOM |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 860, 860 RPM, 900 RPM |
| Series | HV3 Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 1.125" |
| Ship Weight | 62 lbs. |
| Speed (RPM) | 860 |
| Supply Voltage | 208-230/460 VAC |
| UPC Code | 781568121702 |
| Voltage | 208-230/460, 208V, 230V. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonUNK | B007ZQLN8A | 959.19 | 1 | In Stock | | Baldor Electric | | 959.19 @ 1 |
| AmazonTP | B0042GCJAM | 1024.52 | 1 | In Stock | 10 | Baldor | | 1024.52 @ 1 |
 | emotorpro.com | AOM3617T | 1135.24 | 1 | In Stock | | Baldor | 62.0 | 1135.24 @ 1 |
| factorysupplyoutlet.com | MJ24NH | 1243.59 | 1 | In Stock | | Baldor-Reliance | | 1243.59 @ 1 |
 | Walker Industrial | AOM3617T | 1256.15 | 1 | In Stock | | Baldor | | 1256.15 @ 1 |
 | galesburgelectric.com | AOM3617T | 1256.15 | 1 | In Stock | | Baldor | | 1256.15 @ 1 |
 | Galco | AOM3617T-BLDR | 1256.15 | 1 | In Stock | | Baldor | 58.0 | 1256.15 @ 1 |
 | Global Industrial | WBB388562 | 1284.0 | 1 | In Stock | | Baldor-Reliance | | 1284.0 @ 1 |
| motorsandcontrol.com | AOM3617T | 1308.48 | 1 | In Stock | | Baldor Reliance | 62.0 | 1308.48 @ 1 |
| us.rs-online.com | 71933919 | 1451.59 | 1 | In Stock | | Baldor-Reliance | | 1451.59 @ 1 |
 | pumpproducts.com | AOM3617T | 1486.83 | 1 | In Stock | | Baldor | | 1486.83 @ 1 |
 | cbtcompany.com | AOM3617T | 1488.54 | 1 | In Stock | | Baldor Reliance | | 1488.54 @ 1 |
| rspsupply.com | BALDOR AOM3617T | 1518.79 | 1 | In Stock | | Baldor | | 1518.79 @ 1 |
| kirbyrisk.com | 3128819 | 1647.05 | 1 | In Stock | | Baldor | | 1647.05 @ 1 |
| motionindustries.com | 00545741 | 1811.69 | 1 | In Stock | | Baldor-Reliance | | 1811.69 @ 1 |
 | Zoro | G405129884 | 2524.71 | 1 | In Stock | | Baldor-Reliance | | 2524.71 @ 1 |
 | Raptor Supplies | AJ6NVH | 3741.379434 | 1 | In Stock | | BALDOR MOTOR | | 3741.379434 @ 1 |
