Baldor-Reliance CDPT3605

B08J79FMC4

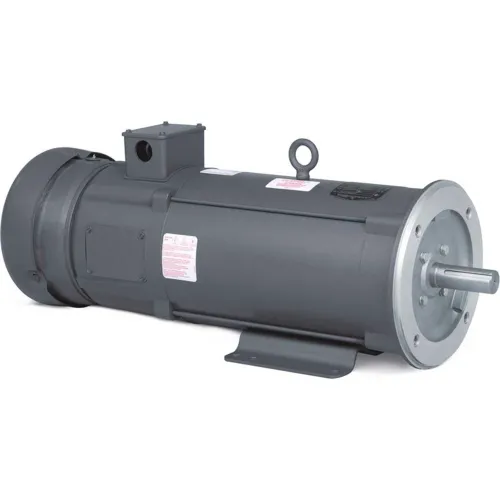

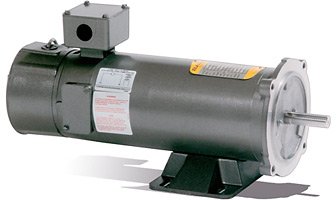

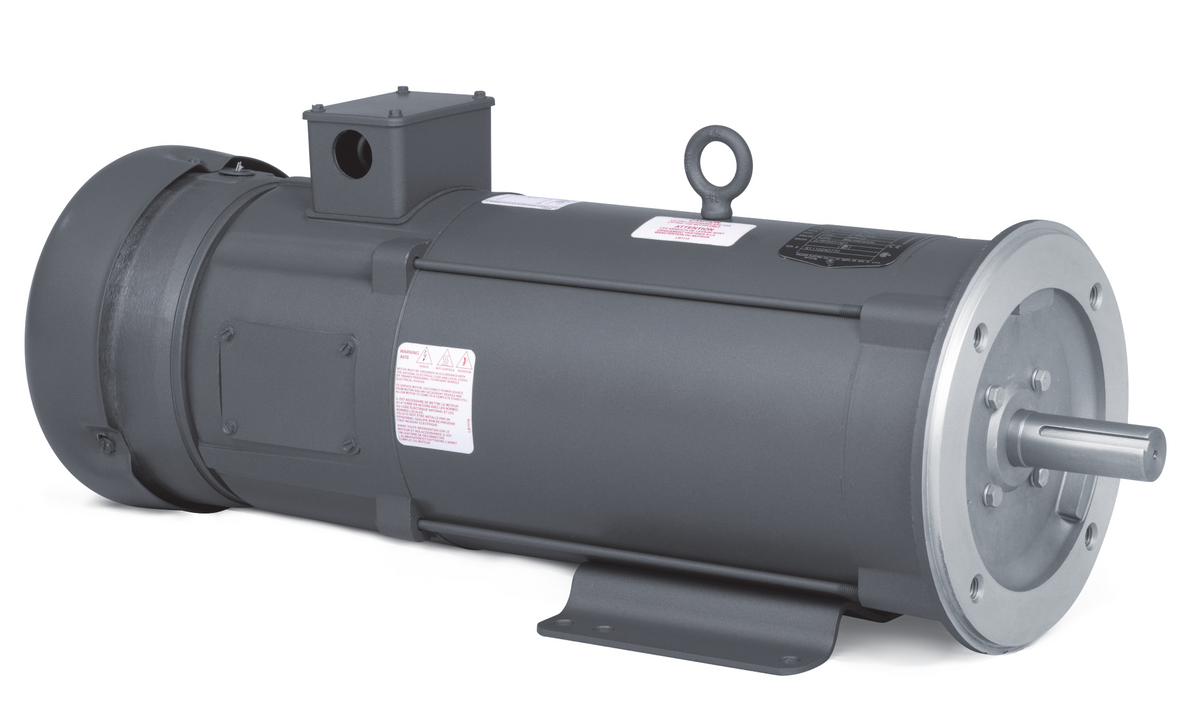

Baldor-Reliance CDPT3605 DC Electric Motor - Permanent Magnet, Brushed, 5 hp hp, 180 V, 1750 rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Frame

Baldor-Reliance CDPT3605 DC Electric Motor - Permanent Magnet, Brushed, 5 hp hp, 180 V, 1750 rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Framezoom

Attributes

Key Value
Amps24.5
ApprovalsCSA, UL
Armature Current24.5, 24.5 A
Armature Voltage180 V
Base RPM1,750 RPM
BearingsSealed
CommentsIntegral 50VDC per 1000.
CT Speed Range20:1
Drive End Flange TypeC-Face
Duty CycleContinuous
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight164.00
Family SeriesBaldor Motors, PERMANEN.
Frame1810ATC
Gross Weight164 lbs
Horsepower5 hp
HP5
Insulation ClassF
Item NumberCDPT3605
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #36P333Z509
Manufacturer Part NumberCDPT3605
Maximum Ambient Tempera.40? C
MountingFoot Mount, Rigid
Mounting TypeC-Face With Base
Net Weight164 lbs
Overall Length30.07"
Part NumberCDPT3605
PhaseDC
Product SeriesPERMANENT MAGNET SCR
Product TypeDC, Integral Tachometer
RotationReversible
RPM1750
Service Factor1.00
Shaft Diameter1.125"
Ship Weight164 lbs.
Speed (RPM)1750
Voltage180V
Volts180VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007ZQOD6E5846.21In Stock10Baldor Electric Company5846.2 @ 1
thumbzoomemotorpro.comCDPT36056635.721In StockBaldor164.06635.72 @ 1
thumbzoomGalcoCDPT3605-BLDR7342.431In StockBaldor164.07342.43 @ 1
thumbzoomWalker IndustrialCDPT36057342.431In StockBaldor7342.43 @ 1
thumbzoomGlobal IndustrialWBB9102307344.01In Stock15Baldor-Reliance7344.0 @ 1
motorsandcontrol.comCDPT36057648.361In StockBaldor Reliance164.07648.36 @ 1
thumbzoomapexindustrialautomation.comCDPT36058472.031In StockBaldor-Reliance8472.03 @ 1
thumbzoompumpproducts.comCDPT36058684.51In StockBaldor8684.5 @ 1
us.rs-online.com725125358740.961In StockBaldor-Reliance8740.96 @ 1
kirbyrisk.com31289829627.311In StockBaldor9627.31 @ 1
