Belden Universal DUJ-HD1500x750K

B007BF7640

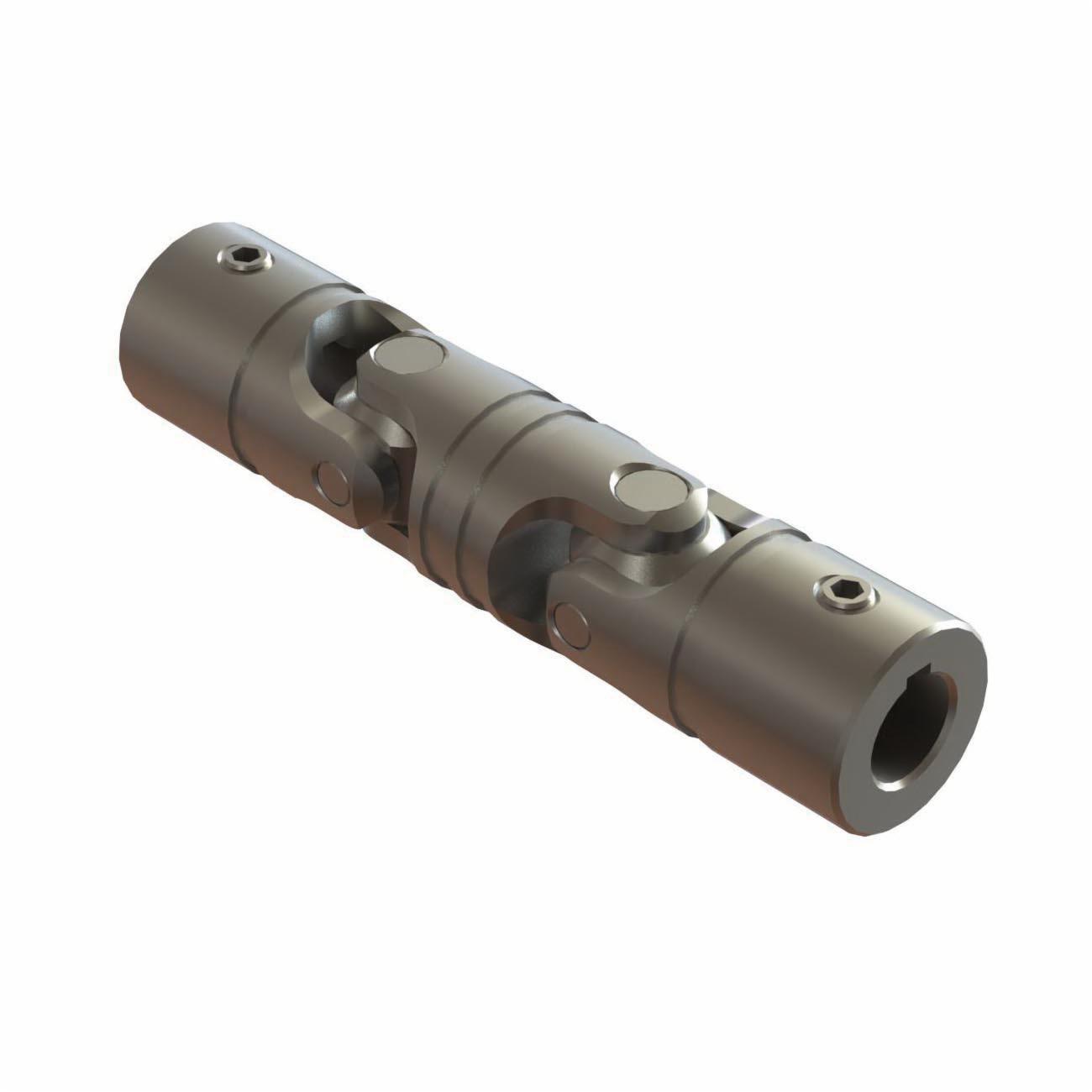

Belden DUJ-HD1500x750K Double Universal Joint, Setscrew, Alloy Steel, 3/4" Bore, 1-1/2" OD, 6-9/16" Overall Length, 3/16"x3/32" Keyways

Belden DUJ-HD1500x750K Double Universal Joint, Setscrew, Alloy Steel, 3/4" Bore, 1-1/2" OD, 6-9/16" Overall Length, 3/16"x3/32" Keywayszoom

Attributes

Key Value
Bore diameter B (in)0.750
Bore diameter B (mm)19.05
Hub depth (in)1.40
Hub depth (mm)35.60
I. D.Inch
Inch metricInch
Joint outside diameter .1.50
Joint outside diameter .38.10
Joint outside diameter .1 1/2 in
Keyway K (in)3/16 x 3/32
Keyway K (mm)4.76x2.38
Operating angle90
Overall length (in)6.56
Overall length (mm)166.70
Part designHeavy duty
Part materialAlloy steel
Part stylePin & block - friction .
Part typeDouble universal joint
Set screw5/16-18x5/16
Size code1500
Torque rating (in-lbf)1800
Torque rating (Nm)203
Ultimate torque (in-lbf)9000
Ultimate torque (Nm)1016.90
Yoke length (in)2.13
Yoke length (mm)54.00

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomPurvisDUJ-HD1500X750K272.121In StockBelden Universal272.12 @ 1
