Burndy YAZV102TC14

B00GPOXN6S

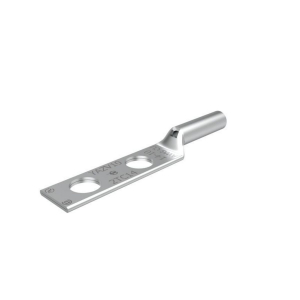

YAZV102TC14 - BURNDY TWO HOLE HYLUG

YAZV102TC14 - BURNDY TWO HOLE HYLUGzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYAZV102TC14
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
Conductor - Copper Str .14 AWG-10 AWG
Conductor - MaterialCOPPER
Conductor Size14-10 AWG
Conductor TypeCODE
Connector TypeLONG BARREL
Country of OriginUnited States, US - Uni.
Country of Origin (subj.Unknown
Dimension - B Length fr.11/16 in
Dimension - B Length in.0.69 in
Dimension - Bolt Hole S.0.27 in
Dimension - Bolt Size f.1/4
Dimension - Bolt Size i.0.25
Dimension - Hole Size f.1/4
Dimension - Hole Size i.0.27
Dimension - Hole Size mm6.9 mm
Dimension - L Length Ov.55 mm
Dimension - Length Over.2.16 in
Dimension - N inch0.31 in
Dimension - Outside Dia.0.21 in
Dimension - Pad Width i.0.41 in
Dimension - Strip Lengt.3/4
Dimension - Stud Size f.1/4
Dimension - Stud Size i.1/4
Dimension - Z inch0.34 in
ECCNEAR99
EU RoHS IndicatorYes
Family SeriesBurndy Terminals, YAZ S.
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
FinishTin-Plated
Finish TypeTin-Plated
Gross Weight0.01 lbs
Industry Standard(s)UL 486A-486B
InsulatedNon-Insulated
Item NumberYAZV102TC14
Item TypeLong Barrel, Skive, Tin.
Lug Wire Size14-10 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYAZV102TC14
MaterialCOPPER
Max Temp221 ?F
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYAZ
Rating - KVA35 kV
RoHS CompliantYes
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - RoHS Compli.CM
Stud Hole Spacing0.625 in.
Stud Size1/4 in.
Stud Spacing0.625
Sub BrandHYLUG
Terminal MaterialCOPPER
Terminal TypeRing
Tongue Width0.41 "
TypeLong Barrel, Skive, Tin.
UL ListedYes
UNSPSC39121405
UPC781810196878
UPC Code781810196878
Use WithCOPPER
Voltage - Maximum35000
Voltage Rating35, 35 kV
Volts600 V
Wire Size14-10 AWG
Wire Size (AWG)10 AWG, 11 AWG, 12 AWG,.
Wire Strip Length0.75 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comYAZV102TC148.091In StockBurndy8.09 @ 1
thumbzoomgordonelectricsupply.comYAZV102TC149.191In StockBURNDY9.19 @ 1
thumbzoomZoroG05841589.1915In Stock35Burndy9.19 @ 15
Graybar9950528610.22561In StockBurndy10.2256 @ 1
us.rs-online.com7149596610.861422BURNDY10.86 @ 1
thumbzoomGalcoYAZV102TC14-BURN11.231In StockBurndy0.0111.23 @ 1
thumbzoomcrescentelectric.com6734212.521In StockBurndy-US, a Hubbell affiliate12.52 @ 1
kirbyrisk.com184851513.981In StockBurndy13.98 @ 1
