- mpnC22802
- brandname: Cle-Line
- manufacturername: Cle-Line

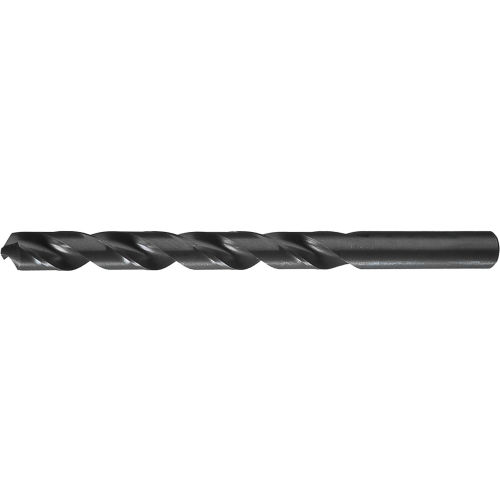

Cle-Line C22802 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 1.45 mm Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C22802
- Model: C22802
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0571 |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0571" |
| Diameter (Metric) | 1.45mm |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1.45 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0172mm |
| Drill Size - Decimal In. | 0.0571 in |
| Drill Size - Metric | 1.45 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 18 mm, 18.00 mm, 0.7087" |
| Flute Length (Metric) | 18.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Item? | 50CL52 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 7/32 in |
| Measurement System | Metric |
| Mfr. Model? | C22802 |
| Number of Flutes | 2 |
| Overall Length | 40.00 mm, 1.5748", 40 mm |
| Overall Length (Metric) | 40.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum; Cast Iron; St. |
| Primary Material Applic. | K; N; P, K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 1 7/16 in |
| Shank Length | 22 mm, 0.8661" |
| Shank Length (Metric) | 22.00mm |
| Shank Size | 1.45 mm Dia x 22 mm L, . |
| Shank Size (Metric) | 1.45mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 340, . |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 1.45mm |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22802 | 0.78 | 1 | 12 | | Cle-Line | | 0.78 @ 12 |
 | heavydutydepot.com | C22802 | 0.78 | 129 | 12 | | Cle-Line | | 0.78 @ 129 |
 | Zoro | G4942905 | 1.03 | 12 | 12 | 10 | Cle-Line | 1.35 | 1.03 @ 12 |
 | MRO Supply | 6124371 | 1.03 | 49 | 12 | | Cle-Line | | 1.03 @ 49 |
| grainger.ca | GNFC22802 | 1.16854766 | 1 | 12 | | CLE-LINE | 0.001 | 1.16854766 @ 12 |
 | usmegastore.com | C22802 | 1.37 | 1 | 12 | | Cle-Line | | 1.37 @ 12 |
| Grainger | 50CL52 | 1.45 | 1 | 12 | | CLE-LINE | | 1.45 @ 12 |
 | Global Industrial | WBB2545253 | 9.84 | 1 | 12 | | Cle-Line | | 9.84 @ 12 |
| AmazonSC | B00J9GP2QS | 14.28 | 1 | 12 | | Cle-line | | 14.28 @ 12 |
