- mpnC22918
- brandname: Cle-Line
- manufacturername: Cle-Line

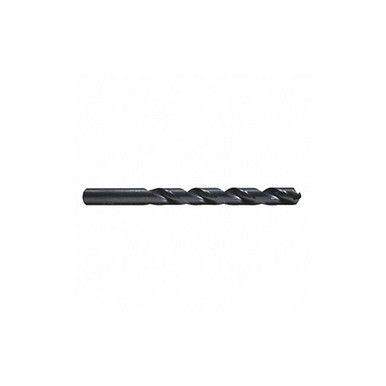

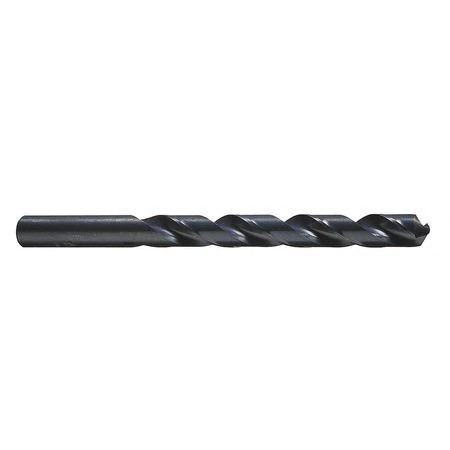

Cle-Line C22918 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 15.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22918
- Model: C22918
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Catalog Page | N/A |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 33 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5906 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.5906" |
| Diameter (Metric) | 15.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 15.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1774mm |
| Drill Size - Decimal In. | 0.5906 in |
| Drill Size - Metric | 15 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 4.4882", 114.00 mm, 114. |
| Flute Length (Metric) | 114.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Item? | 50AZ94 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2-23/64 in, 2 23/64 in |
| Measurement System | Metric |
| Mfr. Model? | C22918 |
| Mpn | C22918 |
| Number of Flutes | 2 |
| Overall Length | 169 mm, 6.6535", 169.00. |
| Overall Length (Metric) | 169.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | K; N; P, K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 15 mm |
| Shank Length | 2.1653", 55 mm |
| Shank Length (Metric) | 55.00mm |
| Shank Size | 0.5906", 15 mm Dia x 55. |
| Shank Size (Metric) | 15.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | C22918, ZO-G4952389 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 15.00mm, 15mm |
| UNSPSC | 27112801 |
| UPC | 697334229186, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22918 | 15.22 | 1 | In Stock | | Cle-Line | | 15.22 @ 1 |
 | Global Industrial | WBB2545184 | 17.25 | 1 | In Stock | | Cle-Line | | 17.25 @ 1 |
 | heavydutydepot.com | C22918 | 17.42 | 6 | In Stock | | Cle-Line | | 17.42 @ 6 |
 | usmegastore.com | C22918 | 18.12 | 1 | In Stock | | Cle-Line | | 18.12 @ 1 |
 | Zoro | G4952389 | 19.69 | 1 | In Stock | | Cle-Line | 0.38 | 19.69 @ 1 |
 | MRO Supply | 6124487 | 20.5 | 3 | In Stock | | Cle-Line | | 20.5 @ 3 |
 | simsupply.com | ZO-G4952389 | 26.79 | 1 | 33 | | Cle-Line | | 26.79 @ 1 |
| Grainger | 50AZ94 | 28.58 | 1 | In Stock | | CLE-LINE | | 28.58 @ 1 |
 | imsbolt.com | C22918 | 33.79 | 1 | In Stock | | CLE-LINE | | 33.79 @ 1 |
