- mpnC22929
- brandname: Cle-Line
- manufacturername: Cle-Line

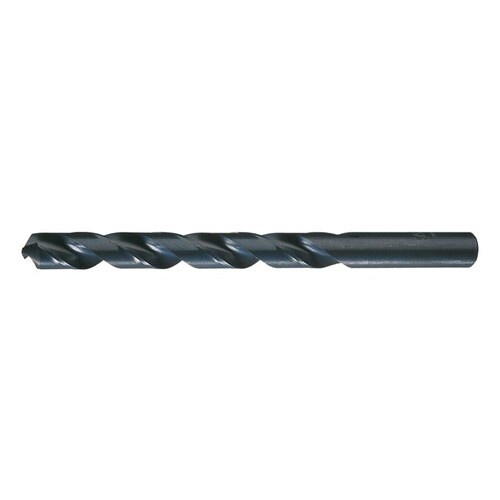

Cle-Line C22929 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 18.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22929
- Model: C22929
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7087 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.7087" |
| Diameter (Metric) | 18.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 18.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0012 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.2129mm |
| Drill Size - Decimal In. | 0.7087 in |
| Drill Size - Metric | 18 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 130.00mm, 130 mm, 5.118. |
| Flute Length (Metric) | 130.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1899 |
| Material | HSS |
| Maximum Drilling Depth | 3 53/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 191.00mm, 7.5197", 191 . |
| Overall Length (Metric) | 191.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 18 mm |
| Shank Length | 61 mm, 2.4016" |
| Shank Length (Metric) | 61.00mm |
| Shank Size | 18 mm Dia x 61 mm L, 0.. |
| Shank Size (Metric) | 18.00mm |
| Shank Type | Straight |
| SKU | C22929 |
| Standards | DIN 338 |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 18.00mm, 18mm |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22929 | 31.61 | 1 | In Stock | | Cle-Line | | 31.61 @ 1 |
 | heavydutydepot.com | C22929 | 31.61 | 4 | In Stock | | Cle-Line | | 31.61 @ 4 |
 | Global Industrial | WBB2545052 | 36.95 | 1 | In Stock | | Cle-Line | | 36.95 @ 1 |
 | usmegastore.com | C22929 | 37.84 | 1 | In Stock | | Cle-Line | | 37.84 @ 1 |
 | MRO Supply | 6124498 | 42.9 | 2 | In Stock | | Cle-Line | | 42.9 @ 2 |
 | Zoro | G4952291 | 44.19 | 1 | In Stock | 10 | Cle-Line | 0.57 | 44.19 @ 1 |
 | imsbolt.com | C22929 | 70.7 | 1 | In Stock | | CLE-LINE | | 70.7 @ 1 |
