- mpnC23468
- brandname: CLE-LINE
- manufacturername: CLE-LINE

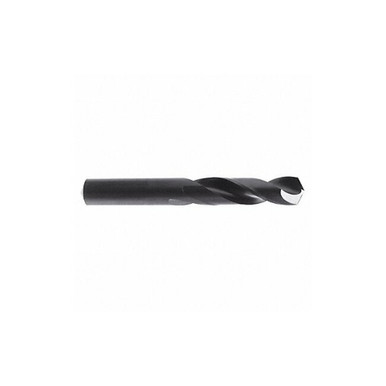

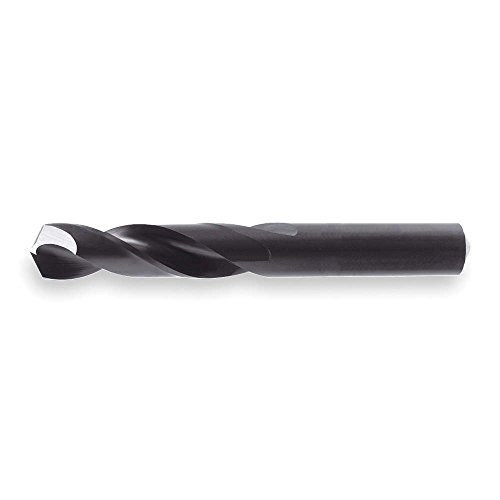

Screw Mach Drill, HSS, Blk Oxide, 3/16 in
- Brand: Cle-line
- PartNumber: C23468
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 797 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1875 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1875" |
| Diameter (Fraction) | 3/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 3/16 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0388 in |
| Drill Size - Decimal In. | 0.1875 in |
| Drill Size - Fraction | 3/16 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 1.1250", 1 1/8 in, 1-1/. |
| Flute Length (Metric) | 28.57mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/8 in |
| Measurement System | Imperial |
| Mpn | C23468 |
| Number of Flutes | 2 |
| Overall Length | 2.1875", 2-3/16 in, 2 3. |
| Overall Length (Metric) | 55.56mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1.0625", 1 1/16 in |
| Shank Length (Metric) | 26.99mm |
| Shank Size | 0.1875", 3/16 in Dia x . |
| Shank Size (Metric) | 4.76mm |
| Shank Type | Straight |
| Sizes Included | 3/16" |
| SKU | ZO-G0670765 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 3/16" |
| Type | General Purpose Heavy D. |
| UPC | 697334234685 |
