Dixon Valve & Coupling ST8OF8

mpnST8OF8
brandname: Dixon
manufacturername: Dixon

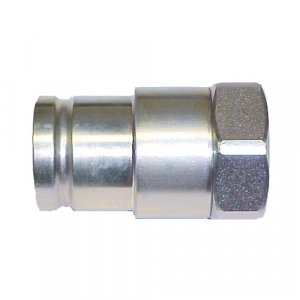

Dixon St8of8 1 Inch Snaptite Ff Nip 1-5/16 Inch-12 Orb 100570-8

Dixon St8of8 1 Inch Snaptite Ff Nip 1-5/16 Inch-12 Orb 100570-8

zoom

Brand: Dixon Valve & Coupling
PartNumber: ST8OF8
PackageQuantity: 1
Manufacturer: Dixon Valve & Coupling
Label: Dixon Valve & Coupling

Attributes

Key	Value
Body Size	1"
Brand	Dixon Valve & Coupling
Burst Pressure	19400 PSI (1300 bar)
Connection	Female ORB
Construction	Machined components are.
Data	1-7/8" Hex Size
Description:	1 ST PLUG, 1-5/16-12 OR.
Hex	1-7/8"
Interchange	Interchangeable with Sn.
Length	3.22", 3.22" (81.8mm)
Manufacturer	Dixon Valve & Coupling .
Material	Steel
Max Temp (?F)	250
Maximum OD	2.10" (53.3mm)
Maximum Operating Press.	7500 PSI (500 bar)
MFG Part #:	ST8OF8
Min. Temp (?F)	-40
MPN	ST8OF8
Note	Minimum burst pressure .
Options	Contact Anderson Proces.
Product	Plugs
Product Type	Simple product
PSI	7500 PSI
PSI (Burst)	19400 PSI
Series	ST-Series Snap-Tite 71
Supplier:	Dixon Valve & Coupling .
Temperature Range	-40?F to +250?F (-40?C .
Thread	ORB, Female ORB
Thread Size	1-5/16"-12
WARNING!	This product contains a.
Weight	1.600000
Weight Lb	1.6000

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	andersonprocess.com	ST8OF8	69.54	1	3	26	Dixon Valve & Coupling	1.6	69.54 @ 3
	Megadepot	ST8OF8	71.06	1	3		Dixon Valve	1.6	71.06 @ 3
	usmegastore.com	ST8OF8	71.06	1	3		Dixon Valve	1.6	71.06 @ 3
	heavydutydepot.com	ST8OF8	71.06	2	3		Dixon		71.06 @ 3
	kscdirect.com	DIX ST8OF8	76.19	1	3		Dixon Valve & Coupling Co		76.19 @ 3
	MRO Supply	2935167	85.77	1	3	14	Dixon	1.6	85.77 @ 3
	Wilson	ST8OF8	213.02	1	3		Dixon		213.02 @ 3
