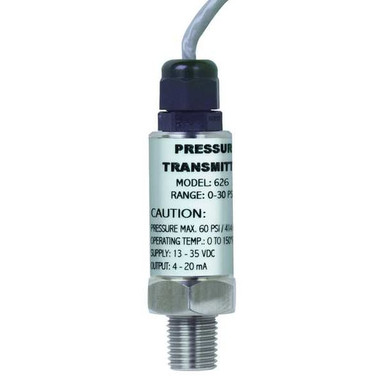

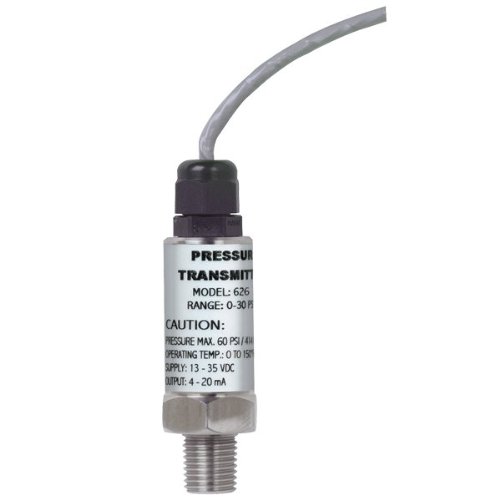

Dwyer 626-11-GH-P1-E1-S1

B007IAKLHC

Dwyer Ind'l Pr Transmitter, 626-11-GH-P1-E1-S1, 0-150 psig, 3' Cable, 4-20 mA, 2 Wire

Dwyer Indzoom

Attributes

Key Value
Accuracy0.25% FS; 0.20% RSS, 0..
Accuracy - Transmitter+/-0.25% Full Scale
Agency ApprovalsCE
Ambient Temperature-18 to 79 C
ApprovalsCE, NSF, UL
BrandDwyer Instruments
Cable Length3 ft
Compensated Temperature.0 to 175?F (-18 to 79?C)
Current Consumption38 mA maximum, 38mA
Current Stock9
Display Type4-1/2 Digit LCD
Electrical ConnectionCable
Electrical Connections3' Cable
Electrical Connections .3 ft Cable
Enclosure RatingNEMA 4X (IP66)
Enclosure TypeNEMA 4X
Family SeriesDwyer Instruments Senso.
Gross Weight0 lbs
International ShippingNo
IP RatingIP65, IP66
ItemPressure Transmitter
Item Number626-11-GH-P1-E1-S1
Lead Length (In.)36
Lead TimeExpected to ship in 1-2.
Loop Resistance0-1000 Ohms max. R max .
ManufacturerDwyer Instruments
Manufacturer Part Number626-11-GH-P1-E1-S1
Manufacturers Warranty .1 yr
Max Pressure150 psi
Max. Pressure (PSI)300 psi
Measurement Range0 to 150 psi
Measurement Unitspsi
Mounting OrientationMount in any position
Mounting Type1/4 in NPTM
Mpn626-11-GH-P1-E1-S1
Net Weight0.625 lbs
Operating Pressure0 to 150 psi
Operating Temp. - Trans.0 Degrees to 200 Degre.
Output4-20 mA
Output - Transmitter4 to 20mA DC
Output Signal4-20 mA
Overall Height3.5 in
Overall Length1.281 in
Overall Width5.5 in
Package TypeCylinder
Port Size0.25 in
Power Required13 to 30VDC
Power Required - Transm.13 to 30V DC
Power Requirements10-30 VDC
Pressure LimitsMaximum Pressure: 300 p.
Pressure Range0-150 psi
Process Connection1/4 " NPT Male, 1/4" Ma.
Process Connection Size1/4 in
Process Connection Size.1/4 in
Process Connection Type.MNPT
Product Series626
Range Units - Transmitt.psi
Range Values - Transmit.0 to 150
Response Time50 msec
SeriesIS626 Series
ServiceCompatible gases and li.
SKUZO-G0056506
Stability1.0% FS/year (Typ.)
StandardsCE; Optional: NSF/ANSI .
SubCategoryTest Instruments
Supply Voltage10-30 VDC
Temperature Limit0 to 200?F (-18 to 93?C)
Temperature Range0-200 ?F
TerminationCable
Thermal Effect?0.02% FS/?F. (includes.
Thermal Error+/-0.02%
Transmitter TypePressure Transmitter
TypeGauge
Voltage Rating10 to 30 V
Weight10 oz (283 g)
Wetted MaterialsType 316L SS
Wetted Materials - Tran.316 Stainless Steel, 31.
Wiring Entry - Transmit.1/2 in FNPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007IAKLHC139.91In Stock2DWYER INSTRUMENTS139.9 @ 1
thumbzoomGalco626-11-GH-P1-E1-S1-DWYR173.971In StockDwyer Instruments0.625173.97 @ 1
thumbzoomRadwell626-11-GH-P1-E1-S1180.01In StockDWYER180.0 @ 1
thumbzoomZoroG0056506182.99123Dwyer0.4182.99 @ 1
thumbzoomMegadepot626-11-GH-P1-E1-S1188.41In StockDwyer0.625188.4 @ 1
thumbzoomusmegastore.com626-11-GH-P1-E1-S1188.41In StockDwyer0.625188.4 @ 1
thumbzoomheavydutydepot.com626-11-GH-P1-E1-S1188.41In StockDwyer Instruments188.4 @ 1
thumbzoomNewark82AK9695189.31In StockDWYER189.3 @ 1
thumbzoomsustainablesupply.comC1758951197.321In StockDwyer Instruments0.4197.32 @ 1
thumbzoomsimsupply.comZO-G0056506213.119Dwyer Instruments213.1 @ 1
alliedcontrols.com626-11-GH-P1-E1-S1220.01In StockDwyer220.0 @ 1
Kele626-11-GH-P1-E1-S1235.561In StockDwyer Instruments235.56 @ 1
us.rs-online.com70328560291.7211Dwyer Instruments291.72 @ 1
thumbzoomcappusa.com2764049298.651In StockDwyer298.65 @ 1
thumbzoomRaptor SuppliesAC2CDT532.5960511In StockDWYER INSTRUMENTS532.596051 @ 1
