Fasco D1176

B0099AXDUG

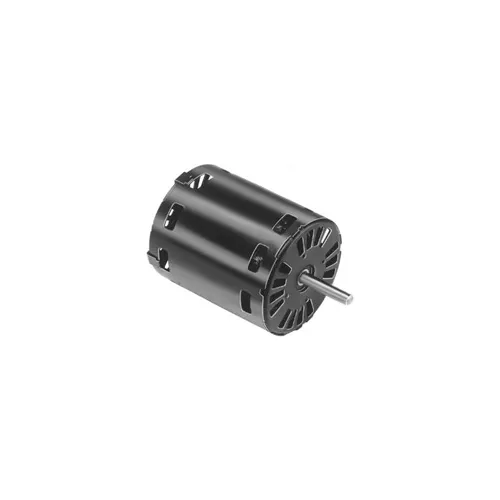

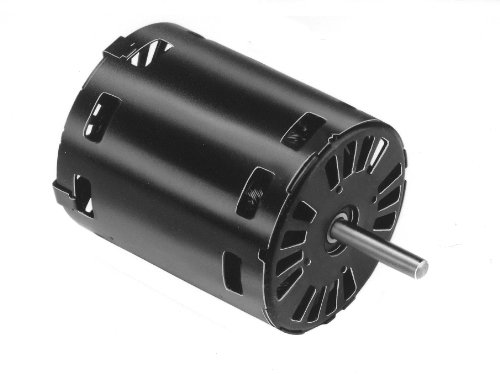

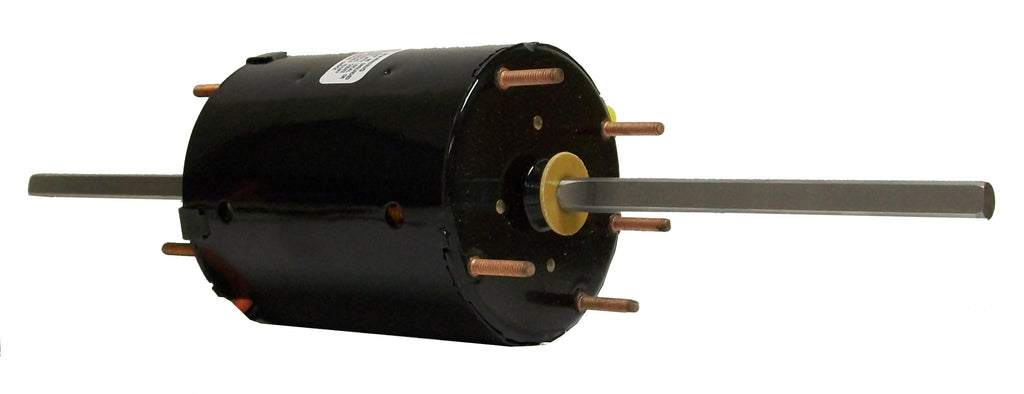

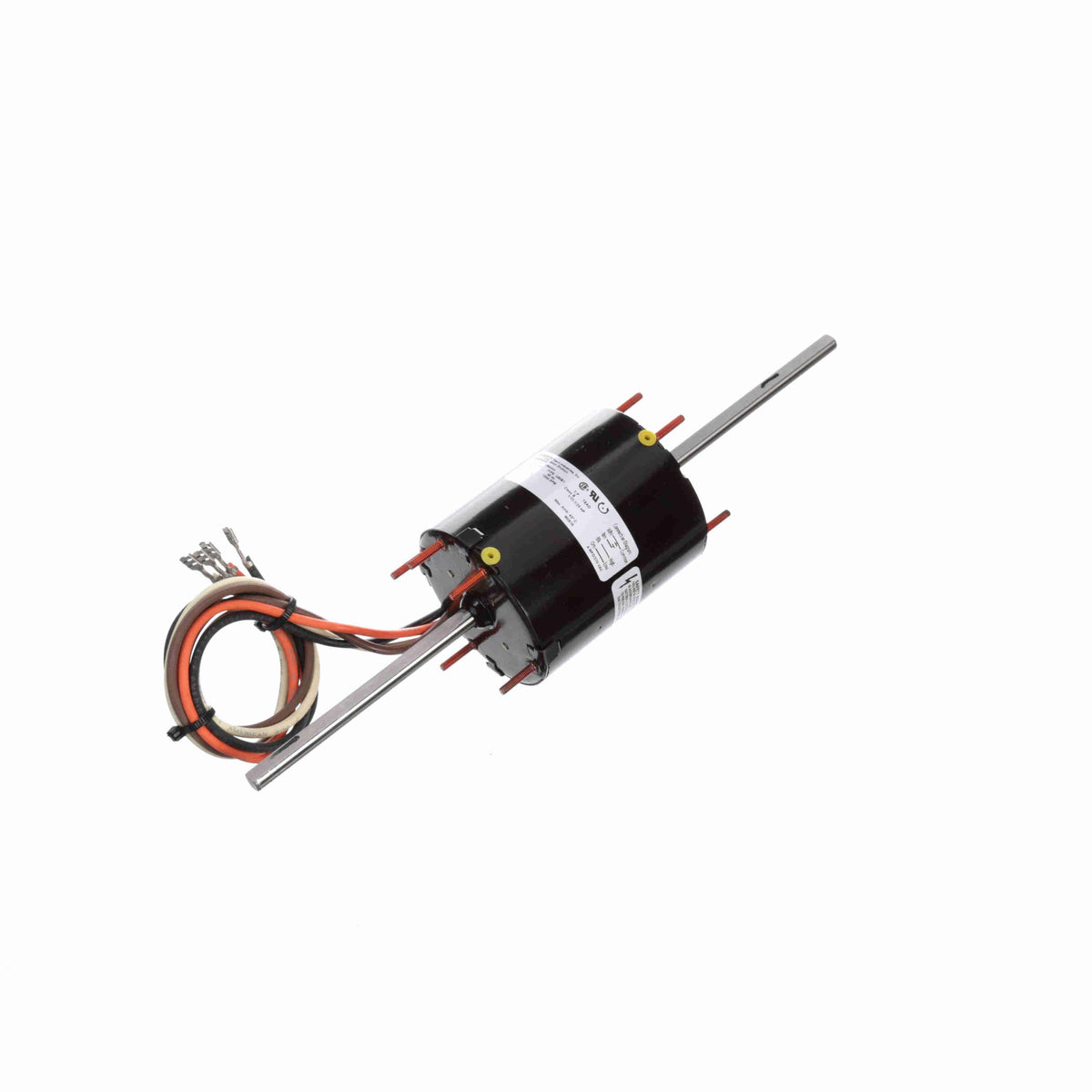

Fasco D1176 3.3" Frame Totally Enclosed Permanent Split Capacitor Window A/C Motor with?Sleeve Bearing, 1/15-1/25HP, 1550rpm, 115V, 60Hz, 0.9-0.8 amps

Fasco D1176 3.3" Frame Totally Enclosed Permanent Split Capacitor Window A/C Motor with?Sleeve Bearing, 1/15-1/25HP, 1550rpm, 115V, 60Hz, 0.9-0.8 ampszoom

Attributes

Key Value
Ambient temperature (?C)40
Amps.9/.8, 0.90/0.80
BearingsSleeve
BrandFasco
C-Dimension14.01 (in.)
Capacitor4MFD/370VAC
Catalog NumberD1176
CEN
Country of originMexico
Country of Origin (subj.United States
Cross Reference130096/202466
CSAY
Current0.90/0.80 A
DE Bearing TypeSleeve
DEM ReferenceFA#D1176
Drive end bearingSleeve
DutyAir Over
Electrical TypePermanent Split Capacit.
Electrical typePermanent Split Capacit.
EnclosureTotally Enclosed Air Ov.
Enclosure TypeTotally Enclosed Air Ov.
Frame3.3", 3.3
Frame length3.82 in
Frame MaterialSteel
Frame materialSteel
Frame Type3.3 (in. diameter)
Frequency60, 60 Hz
HP1/25, 1/15
Insulation classB
Insulation ClassB
IP Code-
KVA Code-
Max Ambient40?C
Motor Diameter3.3"
Motor Orientation-
Motor Shell Length4"
MountingExtended Studs
Mounting TypeExtended Studs
Number of speeds2
Number of Speeds2
ODE Bearing TypeSleeve
Opp drive end bearingSleeve
Output HP1/15-1/25 HP
Output KW0.05 kW
Overall Length14.01 in
Packaged height3.38 in
Packaged length17 in
Packaged width3.38 in
Phase1
Poles4
Product CategoryHVAC/R Motors > HVAC/R.
Product TypePSC (Permanent Split Ca.
RotationDouble Shafted, Counter.
RPM1550
RPM (Nameplate)1550
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service factor1
Service Factor1
Shaft Diameter3/8", 3/8 (in.), 0.375 .
Shaft extension4.875 in
Shaft Extension4.875 (in.)
Shaft Length4-7/8" x 4-7/8"
Shaft typeFlat
Shaft TypeFlat
Ship Weight5 lbs.
Speed1550 RPM
Speeds2
Starting methodAcross the line
Thermal protectionThermally Protected
Type of Overload Protec.Thermally Protected
ULRecognized
Voltage115 V
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ktool.netD1176118.171In StockFasco118.17 @ 1
AmazonTPB007VJZ9M2137.431In Stock2Fasco137.43 @ 1
thumbzoomindustrialstores.comD1176140.651In Stock10Fasco140.65 @ 1
thumbzoomfurnacepartsource.comD1176141.531In StockFasco141.53 @ 1
thumbzoommidwestapplianceparts.comD1176-FA-P167.191In StockFasco167.19 @ 1
thumbzoomemotorpro.comD1176209.281In StockFasco5.0209.28 @ 1
thumbzoomsustainablesupply.comC2091863211.841In StockFasco15.0211.84 @ 1
thumbzoomDreisilkerFA-RBC-D1176212.781In StockFasco212.78 @ 1
thumbzoomGlobal IndustrialWBB186299212.951In StockFasco212.95 @ 1
thumbzoomwaterpumpsnow.comD1176214.51In StockFasco2.0214.5 @ 1
thumbzoomNational Supply NetworkB186299222.251In StockFASCO222.25 @ 1
thumbzoomZoroG6978238241.451In Stock26Fasco241.45 @ 1
thumbzoomMRO Supply5762909256.261In StockFasco256.26 @ 1
uri.comD1176420.481In StockFasco4.5420.48 @ 1
thumbzoomVoomi SupplyD1176691.911In StockFasco691.91 @ 1
