Fasco Motors D1245

mpnD1245
brandname: FASCO
manufacturername: FASCO

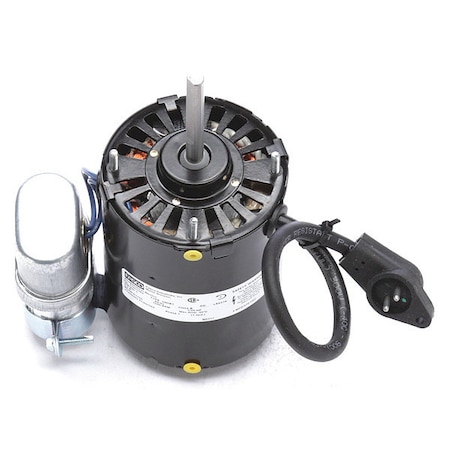

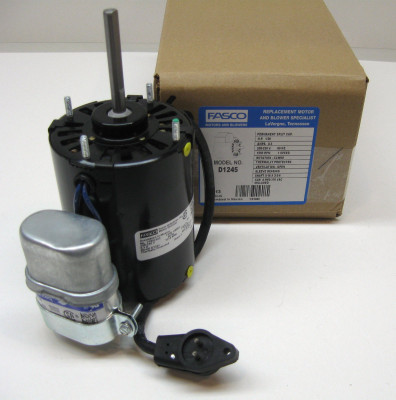

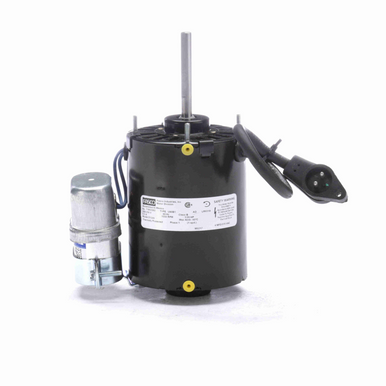

1/20hp 1550RPM CCW 3.3" Diameter 230 Volts (Keeprite) Fasco # D1245

1/20hp 1550RPM CCW 3.3" Diameter 230 Volts (Keeprite) Fasco # D1245

zoom

Brand: Fasco Motors
PartNumber: D1245
Model: d1245
PackageQuantity: 1
Manufacturer: Fasco Motors
Label: Fasco Motors

Attributes

Key	Value
Amps	0.3, 0.30
Bearings	Sleeve
Body Dia.	3.3"
Bolt Circle Dia.	2-13/16"
Brand	Fasco
C-Dimension	7.40 (in.)
Capacitor	4MFD/370VAC (Included)
Catalog Number	D1245
CE	N
Cross Reference	501909/7164-1853/7164-1.
CSA	Y
DE Bearing Type	Sleeve
DEM Reference	FA#D1245
Duty	Air Over
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Op.
Frame	3.3", 3.3
Frame Material	Steel
Frame Type	3.3 (in. diameter)
Frequency	60
HP	1/20 HP, 1/20
Insulation Class	B
IP Code	-
Item	Motor
KVA Code	-
Length Less Shaft	4 3/16 in
Manufacturers Warranty .	1 yr.
Max Ambient	40?C
Motor Application	OEM Replacement
Motor Design	Permanent Split Capacit.
Motor Diameter	3.3"
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Extended Studs
Motor Orientation	-
Motor Shaft Rotation	Counterclockwise Shaft .
Motor Shell Length	4"
Motor Sub Application	Condenser Fan
Motor Thermal Protection	Automatic
Mounting Type	Extended Studs
Nameplate RPM	1550 rpm
No. of Speeds	1
Number of Shafts	1
Number of Speeds	1
ODE Bearing Type	Sleeve
OEM Replacement Brand	Keeprite
Overall Length	7.4"
Phase	1
Product Category	HVAC/R Motors > HVAC/R.
Product Type	PSC (Permanent Split Ca.
Rotation	CCW Shaft End, Counterc.
RPM	1550
RPM (Nameplate)	1550
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
RPM Range	1501-1600
Service Factor	1
Shaft Dia.	0.313"
Shaft Diameter	5/16", 5/16 (in.)
Shaft Extension	2.82 (in.)
Shaft Length	2.82", 2-3/4"
Shaft Type	Flat
Ship Weight	5 lbs.
Speeds	1
Stud Size	#8-32
Type of Overload Protec.	Thermally Protected
UL	No
Volts	208-230, 230, 208

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4334121	150.99	1	In Stock		Fasco	5.0	150.99 @ 1
	cshincorporated.com	D1245	154.08	1	In Stock		Fasco	4.0	154.08 @ 1
	AmazonTP	B0099AYAI0	154.22	1	In Stock	10	Fasco Motors		154.22 @ 1
	ktool.net	D1245	167.75	1	In Stock		Fasco		167.75 @ 1
	midwestapplianceparts.com	D1245-FA-P	179.63	1	In Stock		Fasco		179.63 @ 1
	mccombssupply.com	D1245	180.13	1	1		Fasco		180.13 @ 1
	Dreisilker	FA-RBC-D1245	189.08	1	In Stock		Fasco		189.08 @ 1
	furnacepartsource.com	D1245	193.56	1	In Stock		Fasco		193.56 @ 1
	waterpumpsnow.com	D1245	195.8	1	In Stock		Fasco	2.0	195.8 @ 1
	Voomi Supply	D1245	200.61	1	In Stock		Fasco		200.61 @ 1
	emotorpro.com	D1245	205.57	1	In Stock		Fasco	5.0	205.57 @ 1
	sustainablesupply.com	C2092343	208.1	1	In Stock		Fasco	15.0	208.1 @ 1
