General Cable Industries C0550A.41.10

B0876CCJK2

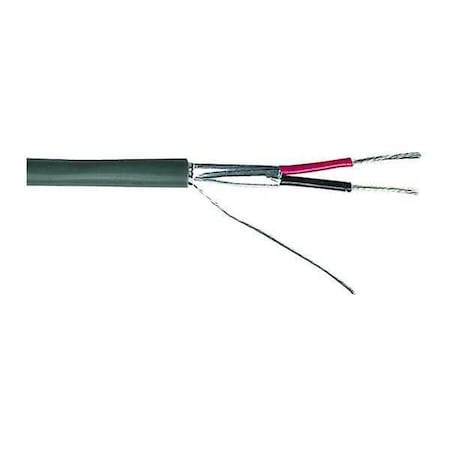

General Cable Industries Carol C0550A. 41.10 Power Limited Tray Cable - 2 Pole, 22 AWG, 7/30 TC, Gray, 1000' Reel

General Cable Industries Carol C0550A. 41.10 Power Limited Tray Cable - 2 Pole, 22 AWG, 7/30 TC, Gray, 1000zoom

Attributes

Key Value
ApplicationPower-Limited Circuits,.
Application - Communica.Alarm Systems, Audio Sy.
ApprovalsCSA, cULus, NEC, UL
Cable Sub-CategoryMulti-Paired
Cable TypeMulti-Pair
CategoryCables, Wires
CommentsUL 2464, NEC 800 CM, NE.
Conductor InsulationPoly-Vinyl Chloride (PV.
Conductor MaterialCopper, Annealed Tinned
Conductor Size22 AWG
Conductor Size - Data C.22 AWG
Conductor Strand7/0.0096"
Conductor TypeStranded
Country of Origin (subj.United States
Drain WireSingle
Family SeriesGeneral Cable Wire & Ca.
FeaturesDrain Wire
Fire Rating - Data CableCommercial
Gross Weight0 lbs
Insulation MaterialPVC, Color-Coded PVC
Insulation Thickness0.015 "
ItemPower Limited Cable
Item - Data CablePower Limited Cable
Item NumberC0550A.41.10
Jacket (Insulation) Dia.0.294" (7.47mm)
Jacket (Insulation) Mat.Poly-Vinyl Chloride (PV.
Jacket (Insulation) Thi.0.0420" (1.067mm)
Jacket ColorGray
Jacket MaterialPVC
Jacket Material - Wire .PVC
Jacket Thickness0.042 "
Length100.0' (30.5m), 1,000 '.
ManufacturerGeneral Cable
Manufacturer Part NumberC0550A
MfrGeneral Cable/Carol Bra.
NEC Article725 PLTC, 800 Communica.
NEC Article and Type725 PLTC
Net Weight0 lbs
Nominal Capacitance C-C32 pF/ft
Nominal Outside Dia.0.294"
Number of Conductors2, 4 (2 Pair Twisted)
Number of Pairs2
Operating Temperature-20?C ~ 105?C
Outer Diameter0.294 "
PackageBulk
Package Type - Data Cab.Reel in a Box
Part StatusActive
Plenum or Riser?General Purpose
Product SeriesPLTC
RatingsASTM B-33
RoHS CompliantYes
Series-
Shield Coverage100%
Shield MaterialFlexfoil?, Copper, Tinn.
Shield TypeFoil
ShieldedYes
Shielded / UnshieldedShielded
ShieldingOverall
Shielding MaterialAluminum Polyester Foil.
Solid / StrandedStranded
Spool Length1000 ft
StandardsNEC Article 725 Power-L.
Stranding7/0.0096
Suggested Voltage Ratin.300V
Temp. Range-4 Degrees to 221 Degr.
Temperature Rating-4-221 ?F
Total Number of Conduct.4 (2 Pair)
UsageCommunication, Control
Voltage300 V
Voltage Rating300 V
Wire Gauge22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoC0550A.41.10-GNCC0.881113General Cable0.88 @ 1
kirbyrisk.com24397860.906141000113General Cable0.90614 @ 1000
Digi-Key7313833102.291011General Cable/Carol Brand102.29 @ 1
thumbzoomZoroG5545793467.251113General Cable467.25 @ 1
Grainger19G431537.011130GENERAL CABLE537.0 @ 1
absupply.netGENERAL CABLE CMP. C0550A.41.10570.581113General Cable570.58 @ 1
