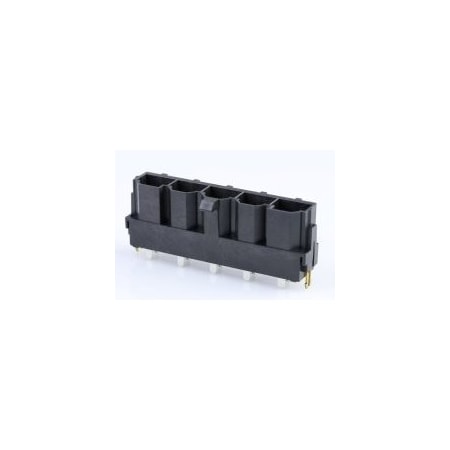

Molex 42819-5213

mpn0428195213
brandname: Molex
manufacturername: Molex

Headers & Wire Housings MiniFit Sr Hdr Vert 062 Clip 5 Ckt Gold

Brand: Molex
PartNumber: 42819-5213

Attributes

Key	Value
Alternate Mfr Part Numb.	42819-5213
Angle	Vertical
Applications	Automotive, General Pur.
Base Product Number	042819
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Copper Zirconium Alloy,.
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating	50 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 5POS 1.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM14563-ND
Family Name	Mini-Fit Sr.
Fastening Type	Locking Ramp
Features	Board Lock
Gender	Female
Housing Material	Thermoplastic
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.827" (21.00mm)
Insulation Material	Polyamide (PA46), Nylon.
Manufacturer	Molex
Manufacturer Product Nu.	0428195213
Manufacturer Standard L.	27 Weeks
Mated Stacking Heights	-
Material	Brass
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	5
Number of Contacts	5
Number of Positions	5
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40 to +105 ?C, -
Orientation	Vertical
Overall Contact Length	-
Package	Tray
Package Quantity	1
Pin Spacing	10.00 mm
Pitch	10.00 mm (0.394")
Pitch - Mating	0.394" (10.00mm)
Plating Material	Gold over Nickel
Primary Type	Soft Shell
Product Status	Active
Row Spacing - Mating	-
Series	Mini-Fit Sr 42819, 4281.
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder, Through Hole
Type	Vertical Header
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
us.rs-online.com	70374965	4.99	1	6		Molex Incorporated	4.99 @ 5
Waldom	MOLEX 42819-5213	6.61	10	4727		MOLEX	6.61 @ 10
jensentools.com	10189163	8.37	1	4727		Molex	8.37 @ 5
Zoro	G4050749	8.89	10	5		Molex	8.89 @ 10
NEP Electronics	42819-5213	9.1765	10	4727		Molex	9.1765 @ 10
Newark	92M0974	10.95	1	4110		MOLEX	10.95 @ 5
Hotenda	H1378144	11.16	1	216		Molex	11.16 @ 5
Digi-Key	3310040	12.83	1	5		Molex	12.83 @ 5
AmazonTP	B00MEKHMI2	18.14	1	5	2	Molex	18.14 @ 5
Radwell	42819-5213	24.0	216	5		MOLEX	24.0 @ 216
