- mpn0430450609
- brandname: Molex
- manufacturername: Molex

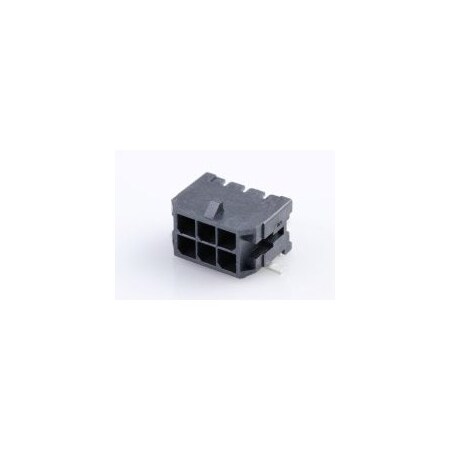

43045-0609, Conn Power HDR 6 POS 3mm Solder RA SMD 6 Terminal 1 Port Micro-Fit 3.0 T/R (25 Items)
- Brand: Molex / Waldom
- PartNumber: 43045-0609
- Model: 43045-0609
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 430450609 |
| Alternate Part No. | 538-43045-0609 |
| Angle | Right Angle |
| Application | Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 043045 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Finish Thicknes. | - |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Brass, Brass Alloy |
| Contact Plating | Tin |
| Contact Plating Thickne. | 0.254 ?m |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 8.5 A, 5 A |
| Current Rating (Amps) | Varies by Wire Gauge |
| Description | CONN HEADER SMD R/A 6PO. |
| Detailed Description | Connector Header Surfac. |
| Digi-Key Part Number | WM1827TR-ND - Tape & Re. |
| Family Name | Micro-Fit 3.0 |
| Fastening Type | Locking Ramp |
| Features | Glow-Wire Capable, Sold. |
| Flammability Rating | UL 94V-0 |
| For Use With | PCB Right-Angle Header |
| Hole Center to Center | 3 mm |
| Housing Material | Thermoplastic |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.290" (7.37mm) |
| Insulation Material | Liquid Crystal Polymer . |
| Manufacturer | Molex |
| Manufacturer Part No. | 43045-0609 |
| Manufacturer Product Nu. | 0430450609 |
| Manufacturer Standard L. | 11 Weeks |
| Mated Stacking Heights | - |
| Material | High Temperature Thermo. |
| Material Flammability R. | UL94 V-0 |
| Max. Temp. | 260?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Surface Mount, Right An. |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40 to +105 ?C, -40?C ~. |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel |
| Part # Aliases | 0430450609 |
| Pin Spacing | 0.118 " |
| Pitch | 3.00 mm (0.118"), 3 mm |
| Pitch - Mating | 0.118" (3.00mm) |
| Plating Material | Tin |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Header | Micro-Fit 3.0? Wire-to-. |
| Product Status | Active |
| Product Type | Header Assemblies |
| Row Spacing | 3 mm |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Series | Micro-Fit 3.0 43045, 43. |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire |
| Terminal Finish | Tin Plated |
| Terminal Type | Surface Mount |
| Termination | Solder |
| Termination Style | SMD |
| Tradename | Micro-Fit 3.0 |
| Type | Right Angle Header, Pin. |
| Voltage Rating | 600V, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Component Electronics | SMT-19678 | 1.15 | 1 | 100 | | Molex | | 1.15 @ 100 |
| Power and Signal Group | 0430450609 | 1.2951 | 1800 | 100 | | Molex | | 1.2951 @ 1800 |
 | jensentools.com | 10189288 | 1.4 | 1 | 100 | | Molex | | 1.4 @ 100 |
 | Newark | 67X4844 | 1.71 | 200 | 800 | | MOLEX | | 1.71 @ 200 |
 | NEP Electronics | 43045-0609 | 1.9853 | 1000 | 100 | | Molex | | 1.9853 @ 1000 |
| Mouser | 538-43045-0609 | 2.24 | 1 | 3714 | | Molex | | 2.24 @ 100 |
| Verical | 43045-0609 | 2.345 | 165 | 165 | | Molex | | 2.345 @ 165 |
| RS Delivers | 670-1939P | 2.6688 | 1 | 3910 | | Molex | | 2.6688 @ 100 |
 | Digi-Key | 4214671 | 2.7366 | 1 | 13299 | | Molex | | 2.7366 @ 100 |
| us.rs-online.com | 70090791 | 3.95 | 1800 | 100 | | Molex Incorporated | | 3.95 @ 1800 |
 | swatee.com | 43045-0609 | 5.07 | 1 | 3887 | | Molex | | 5.07 @ 100 |
 | Radwell | 43045-0609 | 6.0 | 1 | 100 | | MOLEX | | 6.0 @ 100 |
| AmazonTP | B07QQCXCZG | 59.04 | 1 | 100 | 1 | Molex / Waldom | | 59.04 @ 100 |
 | Zoro | G4039619 | 3330.0 | 1800 | 100 | | Molex | | 3330.0 @ 1800 |
