Molex / Waldom 70247-1054

B00GQR6F0A

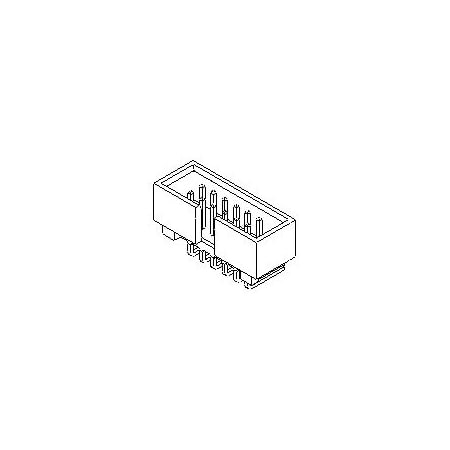

Molex / Waldom 70247-1054 Connector Headers and PCB Receptacles

Molex / Waldom 70247-1054 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationSignal, Wire-to-Board
ApplicationsAutomotive, General Pur.
Base Product Number070247
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.5.00?in (0.127?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.120" (3.05mm)
Contact MaterialPhosphor Bronze
Contact Plating Thickne.0.127 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2.5 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 10POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM14675-ND
Family NameC-Grid
Fastening TypePush-Pull
FeaturesKeying Slot
Flammability RatingUL 94V-0
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.350" (8.89mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerMolex
Manufacturer Product Nu.0702471054
Manufacturer Standard L.41 Weeks
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.UL94 V-0
Max. Temp.235?C
Max. Voltage250V DC
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits10
Number of Contacts10
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageTray
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Plating MaterialGold
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
Series70247 Series, 70247, C-.
ShroudingShrouded - 4 Wall
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Sub-CategoryPCB Headers
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Voltage Rating-
