Molex / Waldom 90122-0125

mpn90122-0125
brandname: Molex Incorporated
manufacturername: Molex Incorporated

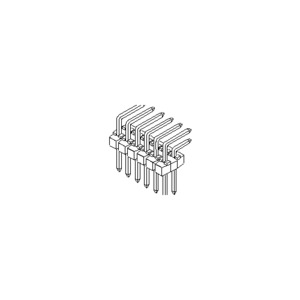

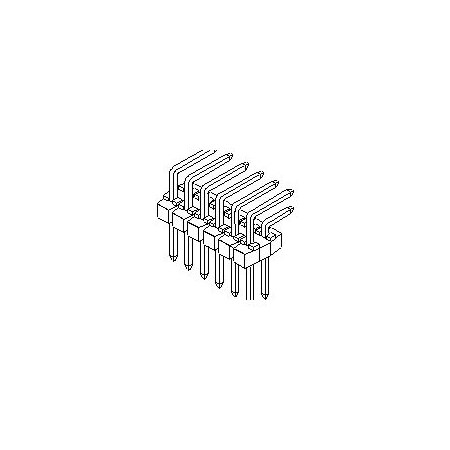

90122-0125, Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole C-Grid III Tray (50 Items)

Brand: Molex / Waldom
PartNumber: 90122-0125
Model: 90122-0125
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	901220125
Applications	Automotive, General Pur.
Base Product Number	090122
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating Thickne.	3.048 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 10POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM8160-ND
Family Name	C-Grid III
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.242" (6.14mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0901220125
Manufacturer Standard L.	17 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	230?C
Max. Voltage	350V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	10
Number of Contacts	10
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	C-Grid III 90122, 90122.
Shrouding	Unshrouded
Standards	UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Type	Right Angle Header
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	01AH1792	0.641	1	100	MOLEX	0.641 @ 100
Onlinecomponents.com	90122-0125	0.73	1	17040	MOLEX / WALDOM	0.73 @ 100
Waldom	MOLEX 90122-0125	0.75	75	8168	MOLEX	0.75 @ 100
RS Delivers	213-4841	0.7872	1	900	Molex	0.7872 @ 100
Digi-Key	760874	0.92759	2700	100	Molex	0.92759 @ 2700
jensentools.com	10198184	1.0	1	100	Molex	1.0 @ 100
us.rs-online.com	70375167	1.67	2700	100	Molex Incorporated	1.67 @ 2700
Zoro	G4051799	89.25	1	100	Molex	89.25 @ 100
