OSG 17526111

mpn17526111
brandname: OSG
manufacturername: OSG

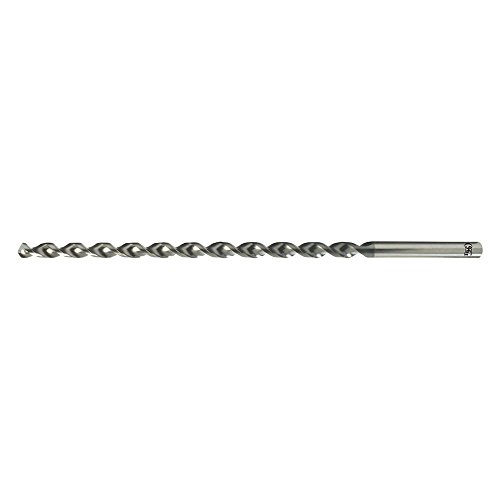

Screw Machine Drill, Taper, 45/64 in.

Screw Machine Drill, Taper, 45/64 in.

zoom

Brand: OSG
PartNumber: 17526111
Model: 17526111
PackageQuantity: 1
Manufacturer: OSG
Label: OSG

Attributes

Key	Value
Application	For Drilling Cast Iron,.
coating	WXL
Coolant Fed	Non-Coolant Through
coolant through	No
Cutting Direction	Right Hand
Decimal Equivalent	0.7031
Depth x Dia. Ratio	15xD
Depth:Dia. Ratio	15xD
diameter tolerance	+0 / -0.027mm
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	WXL
Drill Bit Material	Cobalt Steel
Drill Bit Point Angle	120 Degrees
Drill Bit Size	45/64 in
Drill Diameter Tolerance	+0.000mm/-0.027mm
Drill Length Class	Extra Long
flute angle	40 Degree
Flute Length	322.00 mm
flute length inch	12.677
Flute Type	Fast Spiral
Grade	General Purpose
Item	Extra Long Drill Bit
l x d ratio	15xD
material	Carbide
Maximum Drilling Depth	322.00 mm
Number of Flutes	2
Number of Pieces	1
Overall Length	372.00 mm
overall length mm	372.00
Point type	X Thinning
Shank Dia.	45/64 in
Shank Length	50.00 mm
unspsc	23291500

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	National Supply Network	81690992	507.91	1	In Stock		OSG		507.91 @ 1
	Zoro	G1764108	537.99	1	1		Osg	1.5	537.99 @ 1
	tmttoolbox.com	17526111	547.17	1	In Stock		osg		547.17 @ 1
	sustainablesupply.com	C2802823	576.0	1	In Stock		OSG	1.5	576.0 @ 1
	bscsource.com	17526111	587.19	1	In Stock		OSG		587.19 @ 1
