- mpnPLT2S-M702Y
- brandname: Panduit
- manufacturername: Panduit

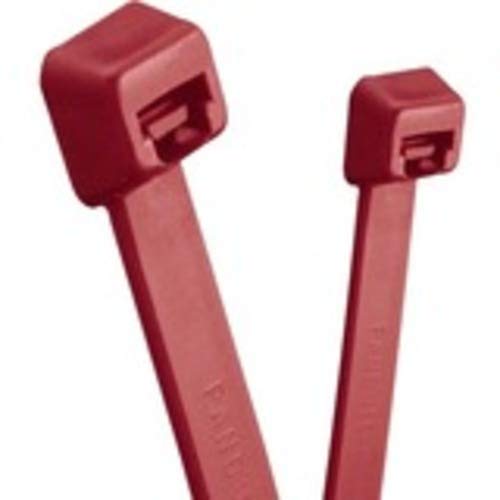

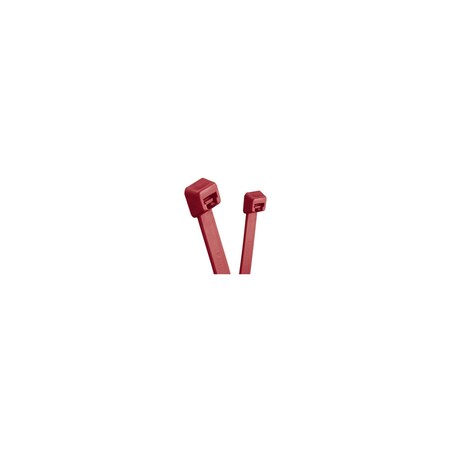

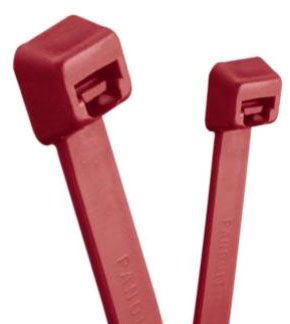

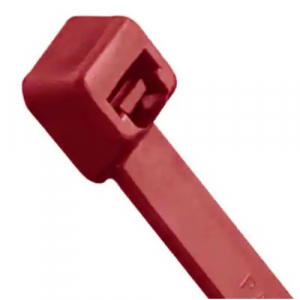

Panduit PLT2S-M702Y Cable Tie, Standard, 7.4" Length, Maroon (Pack of 1000)
- Brand: Panduit
- PartNumber: PLT2S-M702Y
- Model: PANPLT2SM702Y
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Approximate Length | 7 in |
| Body Thickness (In.) | 0.055 |
| Body Thickness (mm) | 1.4 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Brand Name | Panduit |
| Bundle Diameter | 1.88 in., 1.88"" (47.75. |
| Cable Tie Duty | Standard |
| Category | Cables, Wires - Managem. |
| Color | Maroon |
| Color Family | Red |
| Country of Origin | CR - Costa Rica |
| Country of Origin (subj. | Unknown, Costa Rica |
| Design | One-Piece Locking Wedge |
| ECCN | EAR99 |
| Environment | Plenum |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Family / Style | Pan-Ty? |
| Family Series | Panduit Cable Ties, Pan. |
| Features | Flame Retardant, Plenum. |
| For Use With | GTS-E, GS2B-E, GTH-E, G. |
| Gross Weight | 5.7 lbs |
| Heat Stabilized | No |
| Height (in) | 0.052 " |
| Indoor/Outdoor | Plenum |
| Item | Cable Tie |
| Item Number | PLT2S-M702Y |
| Length | 7.400 in, 7.40, 7.4 in,. |
| Length (In) | 7.4 " |
| Length - Actual | 0.617' (187.96mm, 7.40". |
| Length - Approximate | 7.5 |
| Locking Style | Locking |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PLT2S-M702Y |
| Manufacturer Website Ad. | http://www.panduit.com |
| Material | Fluoropolymer, HALAR, E. |
| Max Bundle Diam. (in) | 1.88 " |
| Maximum Bundle Diameter. | 1.88 |
| Maximum Bundle Diameter. | 48 |
| Maximum Installation Te. | 32 |
| Maximum Operating Tempe. | 125 |
| Maximum Operating Tempe. | 257 |
| Mfr | Panduit Corp |
| Minimum Bundle Diameter. | 0.24 |
| Minimum Bundle Diameter. | 6.1 |
| Minimum Installation Te. | -20 |
| Minimum Installation Te. | -4 |
| Minimum Loop Tensile St. | 50 lb |
| Minimum Loop Tensile St. | 50 |
| Minimum Loop Tensile St. | 222 |
| Minimum Operating Tempe. | -60 |
| Minimum Operating Tempe. | -76 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Nominal Length | 7.5 " |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Package | 1000 per Pkg |
| Package Quantity | 1000 |
| Package Type | Bulk |
| Packaged Quantity | 1000 |
| Part Status | Active |
| Plenum Rated | Yes |
| Product Line | Pan-Ty |
| Product Name | Pan-Ty Cable Tie |
| Product Series | Pan-Ty Cable Ties |
| Product Thickness | 0.052 in |
| Product Type | Cable Tie |
| Resistance Properties | Heat and UV Resistant |
| Series | PAN-TY? PLT, PAN-TY PLT. |
| Size | Standard |
| Standards Met | UL Recognized (File #E5. |
| Tensile Strength | 50 lbs (22.68 kg), 50 l. |
| Tensile Strength (lb) | 50 lbs |
| Thickness | 3/64", 50 mil |
| Thickness (in) | 0.052 " |
| Type | General Purpose |
| Unit of Measure | Pack of 1000 pcs |
| UNSPSC | 39121703 |
| UPC Code | 074983447381 |
| Weather Resistant | No |
| Weight Capacity | 50 lbs |
| Width | 0.190"" (4.83mm), 0.19,. |
| Width (in) | 0.19 " |
| Wire/Cable Tie Type | Standard, Locking |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PLT2S-M702Y | 1.28 | 1 | 1000 | | PANDUIT | | 1.28 @ 1000 |
| Digi-Key | 4569028 | 1.44898 | 1000 | 6000 | | Panduit Corp | | 1.44898 @ 1000 |
 | Galco | PLT2S-M702Y-PNDT | 1.51 | 1000 | 1000 | | Panduit | 5.7 | 1.51 @ 1000 |
 | Platt.com | 0699191 | 1.77 | 1 | 1000 | | Panduit | | 1.77 @ 1000 |
| Airline Hydraulics | PANDUIT PLT2S-M702Y | 1.82 | 1 | 1000 | | Panduit Corp | | 1.82 @ 1000 |
| us.rs-online.com | 70327463 | 1.87 | 1000 | 1000 | | Panduit | | 1.87 @ 1000 |
 | PCNation | 6WU604 | 1099.78 | 1 | 1000 | | PANDUIT | 6.0 | 1099.78 @ 1000 |
 | alldataresource.com | 326471 | 1180.52 | 1 | 1000 | | Panduit | | 1180.52 @ 1000 |
 | primebuy.com | PLT2S-M702Y | 1292.0 | 1 | 1000 | | Panduit | | 1292.0 @ 1000 |
 | Zoro | G0785187 | 1318.67 | 1 | 1000 | 26 | Panduit | 5.67 | 1318.67 @ 1000 |
| CDW | 1934946 | 1319.99 | 1 | 1000 | | Panduit | | 1319.99 @ 1000 |
 | gordonelectricsupply.com | PLT2S-M702Y | 1590.0 | 1 | 1000 | 12 | PANDUIT | | 1590.0 @ 1000 |
 | Newark | 52K3089 | 1644.28 | 1 | 1000 | | PANDUIT | | 1644.28 @ 1000 |
 | jensentools.com | 10016954 | 1678.74 | 1 | 1000 | | Panduit | | 1678.74 @ 1000 |
| steinerelectric.com | 241525 | 1812.68 | 1 | 1000 | | Panduit | | 1812.68 @ 1000 |
| Graybar | 25054929 | 1866.6368 | 1 | 1000 | | Panduit | | 1866.6368 @ 1000 |
