- mpnPV18-P47-MY
- brandname: Panduit
- manufacturername: Panduit

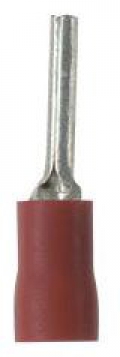

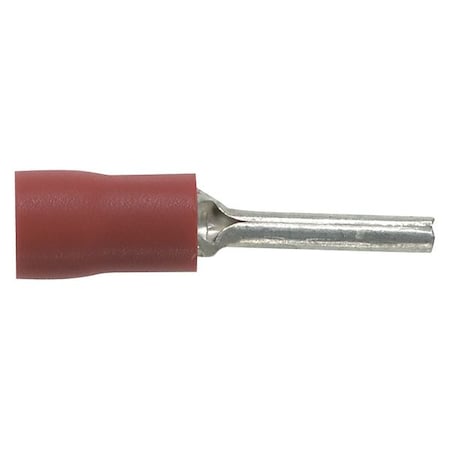

Panduit PV18-P47-MY-Inch Pin Terminal, 22 - 18 AWG, Vinyl Insulated, .49-Inch Pin Length (1,000-Pack)
- Brand: Panduit
- PartNumber: PV18-P47-MY
- Model: PV18-P47-MY
- Size: 1000-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Alternate Part No. | 644-PV18-P47-MY |
| Approvals | UL |
| Base Product Number | PV18 |
| Brand | Panduit |
| Category | Connectors, Interconnec. |
| Color | Red |
| Connection Material | Tin-Plated Copper |
| Contact Finish | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| Gender | Male |
| Gross Weight | 1.8 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.150" (3.81mm) |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Pin Terminal |
| Item Number | PV18-P47-MY |
| Length | 24.6 mm, 0.490 in |
| Length - Overall | 0.970" (24.64mm) |
| Length - Pin | 0.490" (12.45mm) |
| Length - Termination | - |
| Manufacturer | Panduit |
| Manufacturer Part No. | PV18-P47-MY |
| Manufacturer Part Number | PV18-P47-MY |
| Material | Copper, Vinyl, Copper |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Max. Voltage | 600V |
| Maximum Bundle Diameter | 1 mm |
| Mfr | Panduit Corp |
| Mounting Angle | Straight |
| Mounting Method | Wire |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 1,000 |
| Pin Diameter | Circular - 0.071" (1.80. |
| Pin Length (In.) | 0.47 |
| Plating Material | Tin |
| Product | Pin Terminals |
| Product Category | Terminals |
| Product Series | Pan-Term Disconnects |
| Product Status | Active |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Series | - |
| Stud/Tab Size | 1.8 mm x 12.4 mm |
| Terminal Material | Copper |
| Terminal Type | Pin |
| Termination | Crimp |
| Termination Style | Crimp |
| Unit Weight | 798.323 g |
| Volts | 600 V |
| Volts AC | 600 |
| Wire Gauge | 18-22 AWG, 22-18 |
| Wire Range | 22 to 18 AWG |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.313 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| i-components | PV18-P47-MY | 0.181 | 1 | 130229 | | Panduit | | 0.181 @ 1000 |
| Onlinecomponents.com | PV18-P47-MY | 0.297 | 1 | 3500 | | PANDUIT | | 0.297 @ 1000 |
 | French Gerleman | PANDPV18P47MY | 0.4 | 1 | 1000 | | Panduit | | 0.4 @ 1000 |
| us.rs-online.com | 72260324 | 0.44974 | 1000 | 1000 | | Panduit | | 0.44974 @ 1000 |
 | Galco | PV18-P47-MY-PNDT | 0.45 | 1000 | 1000 | | Panduit | 1.8 | 0.45 @ 1000 |
 | Platt.com | 0037003 | 0.48 | 1 | 1900 | | Panduit | | 0.48 @ 1000 |
| Airline Hydraulics | PANDUIT PV18-P47-MY | 0.49 | 1 | 1000 | | Panduit Corp | | 0.49 @ 1000 |
| Digi-Key | 4578050 | 0.49101 | 1 | 1850 | | Panduit Corp | | 0.49101 @ 1000 |
 | Newark | 45AC6162 | 0.529 | 1 | 1000 | | PANDUIT | | 0.529 @ 1000 |
 | swatee.com | PV18-P47-MY | 0.56 | 1 | 1000 | | Panduit | | 0.56 @ 1000 |
 | Carlton Bates Company | 07498342028 | 330.0 | 1 | 1000 | | PANDUIT | | 330.0 @ 1000 |
 | Zoro | G0789813 | 398.12 | 1 | 1000 | 106 | Panduit | 1.8 | 398.12 @ 1000 |
 | gordonelectricsupply.com | PV18-P47-MY | 429.0 | 1 | 1000 | 12 | PANDUIT | | 429.0 @ 1000 |
 | turtle.com | PAN PV18-P47-MY | 481.38 | 1 | 1000 | | Panduit | | 481.38 @ 1000 |
