SOLA-HD SLD-15-3030-15T

B00DED4GVE

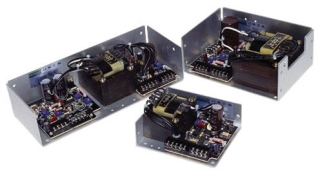

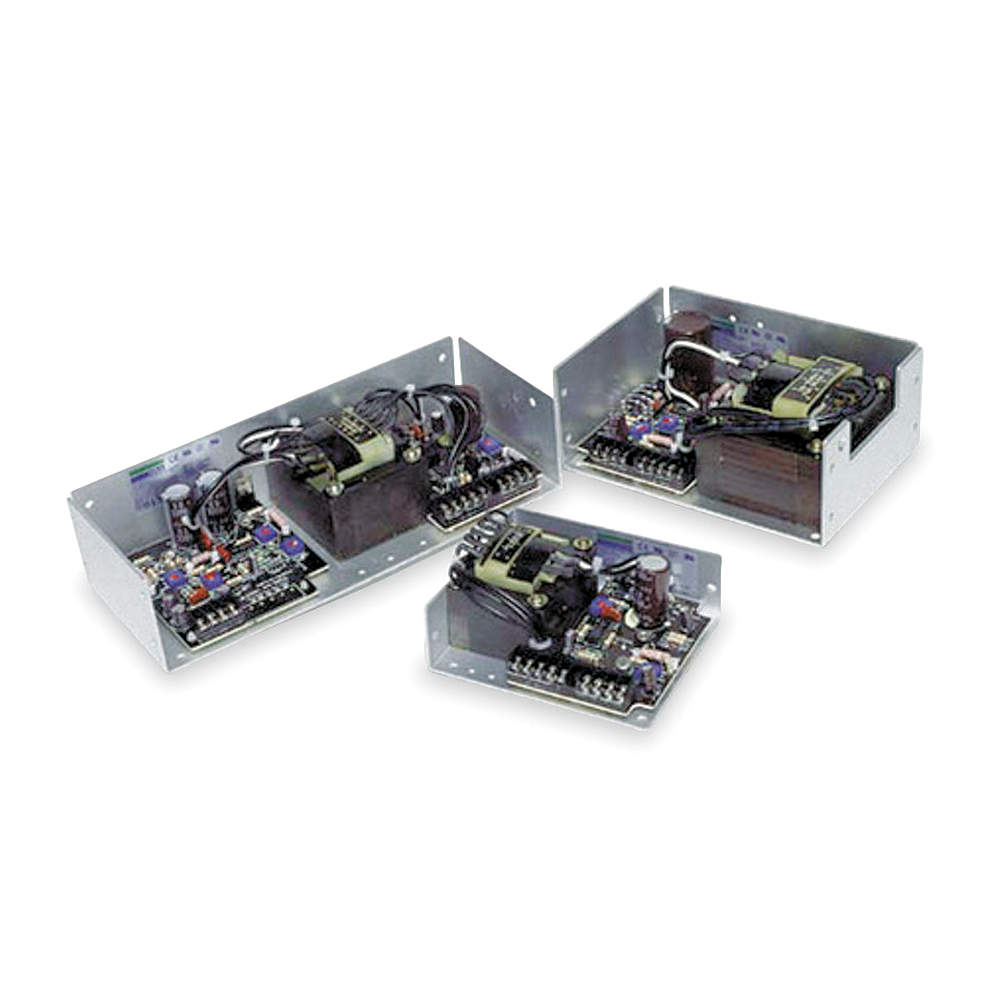

Linear Power Supplies 15V @ 3A / -15V @ 3A

Linear Power Supplies 15V @ 3A / -15V @ 3Azoom

Attributes

Key Value
Alternate Part No.663-SLD15-3030-15T
ApplicationIndustrial control circ.
ApplicationsITE (Commercial)
Approval AgencyCSA, cURus
ApprovalsCE, CSA, UL
Base Product NumberSLD-15
BrandSolaHD, Sola / Hevi-Duty
Case MaterialMetal Case
Case TypeI3
Catalog NumberSLD-15-3030-15T
CategoryPower Supplies - Extern.
Commercial/MedicalCommercial
ConfigurationOpen Frame
Current - Output 13 A
Current - Output 23 A
Current Stock3
Delivery RestrictionsDue to size or weight o.
Depth2.75 in
DescriptionAC/DC CONVERTER +/-15V .
Detailed DescriptionOpen Frame AC DC Conver.
Digi-Key Part Number2106-SLD-15-3030-15T-ND
Dimensions229 mm L x 124 mm W
Efficiency-
Efficiency %50 %
EncapsulatedNo
EnclosureNo
Family SeriesSolaHD Power Supplies, .
FeaturesAdjustable Output, Remo.
Gross Weight8 lbs
Height70 mm, 4.87 in
Hold Up Time50 msec
Hz47 to 63 Hz
In. Voltage100-240
Input Frequency47 Hz to 63 Hz, 47 to 6.
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage (AC)100-240 VAC
Input Voltage Range100-240 VAC
Input Volts-AutorangingNo
International ShippingNo
ItemDc Power Supply
Item NumberSLD-15-3030-15T
Lead TimeExpected to ship in 1-2.
Length229 mm
Line Regulation0.05 %
Load Regulation0.05 %
ManufacturerSolaHD, Sola/Hevi-Duty
Manufacturer Part No.SLD-15-3030-15T
Manufacturer Part NumberSLD15303015T
Manufacturer Product Nu.SLD-15-3030-15T
MfrSolaHD
Minimum Load Required-
MountingPanel
Mounting StylePanel
Mounting TypePanel Mount, Chassis Mo.
MpnSLD15303015T
Net Weight1.26 lbs
Nominal Input Voltage (.120 VAC, 240 VAC
Nominal Output VDC12 VDC
Number of Outputs2 Output, 2
Number of PhasesSingle
Open Frame/EnclosedOpen Frame
Operating Temp. Range0 Degrees to 50 Degree.
Operating Temperature32-122 ?F, 0 to +50 ?C,.
OperationLinear
Out. Voltage15 VDC, -15 VDC
Output Amps3
Output Current3 A, 3A@15V, 3A@-15V
Output NoiseLess Than 3mV
Output Power15-244 W
Output VDC12 VDC
Output Voltage+/-15V DC, 15 VDC, -15 .
Output Voltage Adj.Yes
Output Voltage Range15 to 34 Vdc depending .
Output Voltage-Channel 115 VDC
Overload CapabilityAutomatic current limit.
Overload ProtectionYes
Overvoltage ProtectionNo
PackageBulk
Parallel OperationNo
Phase (Input)1
Phase - ElectricalSingle
Power45 W
Power (Watts)90W
Power Factor CorrectionNo
Power Rating45W
Primary TypeAC-DC
ProductLinear Supplies
Product CategoryLinear Power Supplies
Product HeaderSilver Line Series Line.
Product SeriesSilver Line
Product StatusNot For New Designs
Remote On/Off ControlNo
Remote SensingYes
Response Time50 ms
SeriesSilver Line, Silverline.
Short Circuit ProtectionYes
Size / Dimension9.00" L x 4.87" W x 2.7.
SKUZO-G1356835
Special FeaturesRemote Sense
Standard Number-
StandardsUL Listed, CE Certified.
StyleLinear
SubCategoryElectrical
Temp. Range0 to 50?C
TypeOpen Frame, Embedded
UPC783472601028
Voltage - Input100 ~ 240 VAC
Voltage - Output 115V
Voltage - Output 2-15V
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 5-
Voltage - Output 6-
Voltage Rating100, 120, 220, 230, 240.
Width9 in, 124 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Straight Road ElectronicsSLD15303015T153.813In StockSola/Hevi-Duty153.81 @ 3
Onlinecomponents.comSLD-15-3030-15T181.6513SOLA181.65 @ 1
thumbzoomsustainablesupply.comC1205409200.751In StockSola7.75200.75 @ 1
thumbzoomCarlton Bates Company78347260102202.691In StockSOLAHD202.69 @ 1
thumbzoomWalker IndustrialSLD15303015T231.731In Stock10SolaHD231.73 @ 1
Hawk ElectronicsSLD15303015T233.21In StockSola HD233.2 @ 1
thumbzoomDigi-Key10071952243.4152SolaHD243.4 @ 1
thumbzoomZoroG1356835243.99112Solahd7.75243.99 @ 1
thumbzoomMRO Supply1011924252.122In StockSolaHD252.12 @ 2
standardelectricsupply.com2261087262.631In StockSola/Hevi-Duty262.63 @ 1
thumbzoomsimsupply.comZO-G1356835274.6413Solahd274.64 @ 1
thumbzoomgordonelectricsupply.comSLD-15-3030-15T279.01In Stock380SOLA-HD279.0 @ 1
thumbzoomPlatt.com0461816298.391In StockSola Hevi-Duty298.39 @ 1
us.rs-online.com70211593310.29113SolaHD310.29 @ 1
thumbzoomGalcoSLD-15-3030-15T-SOLA343.81In StockSolaHD8.0343.8 @ 1
RS Delivers891-3478345.7561In StockSolaHD345.756 @ 1
thumbzoomRaptor SuppliesAE4FQJ347.0042161In StockSOLA/HEVI-DUTY347.004216 @ 1
kirbyrisk.com517807351.161In StockSolahd351.16 @ 1
thumbzoomswatee.comSLD-15-3030-15T352.6313Sola/Hevi-Duty352.63 @ 1
thumbzoomcrescentelectric.com459308523.281In StockSolaHD523.28 @ 1
