Square D 9080GF6

B007IA9W72

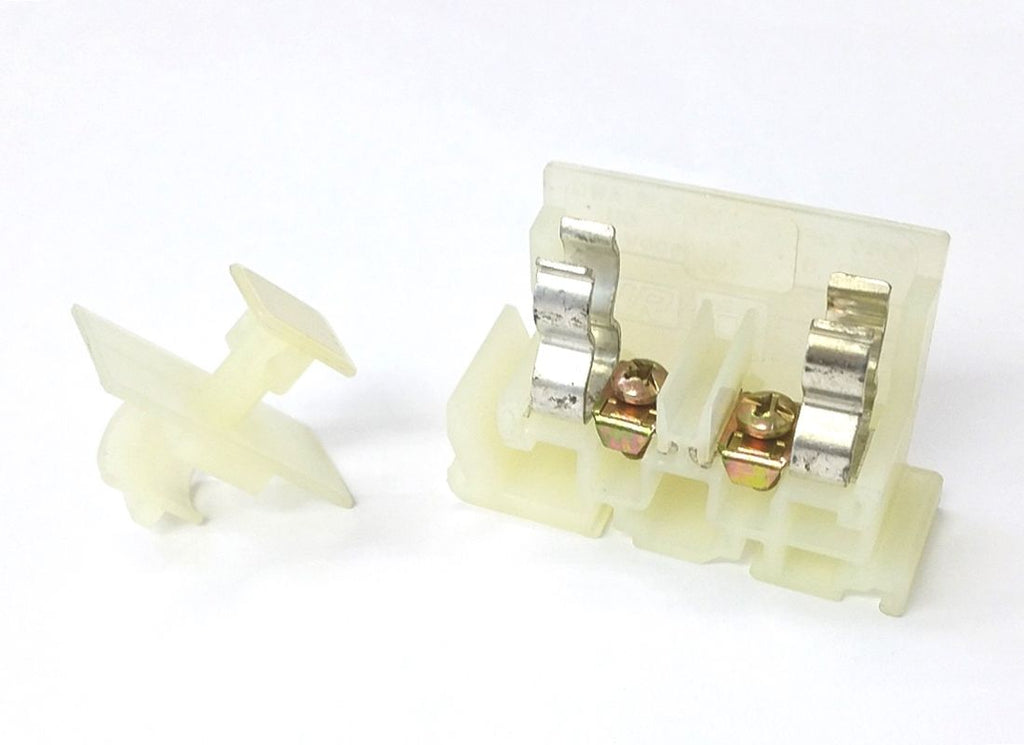

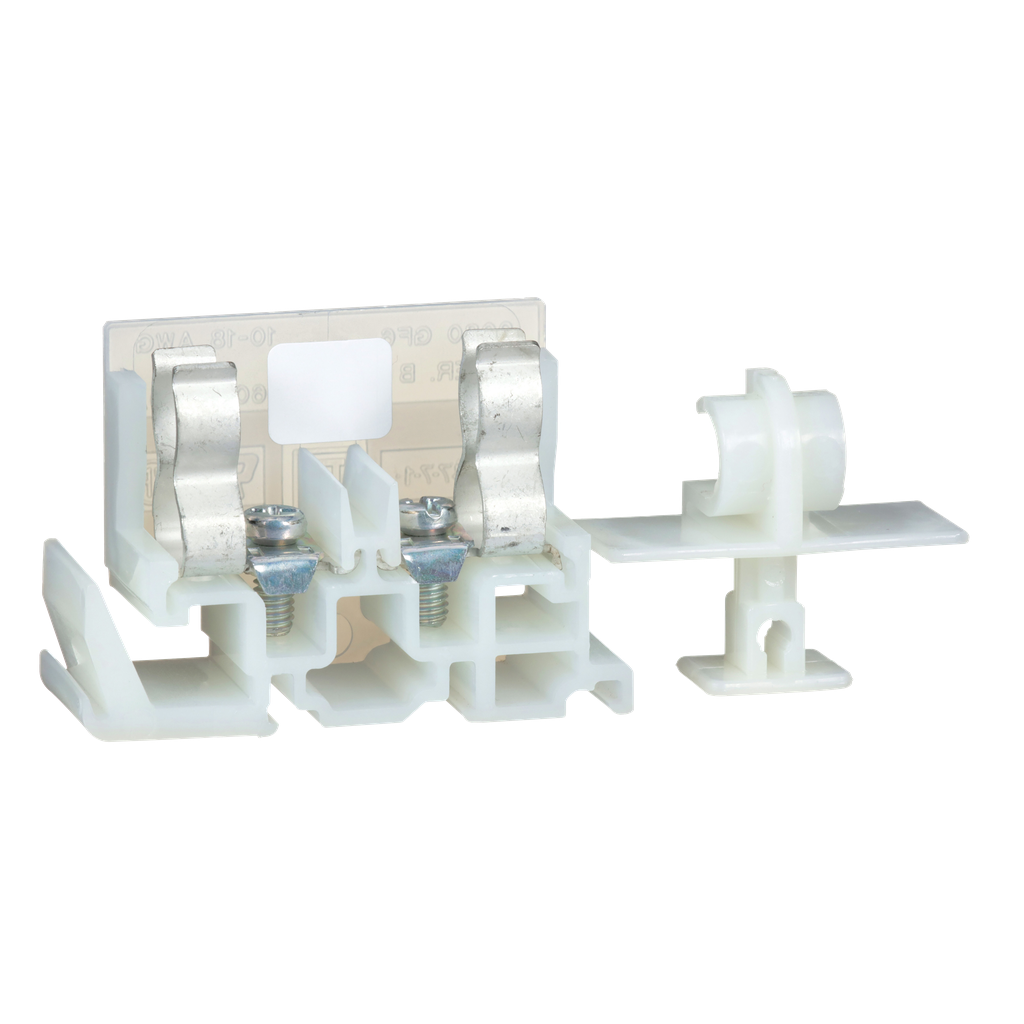

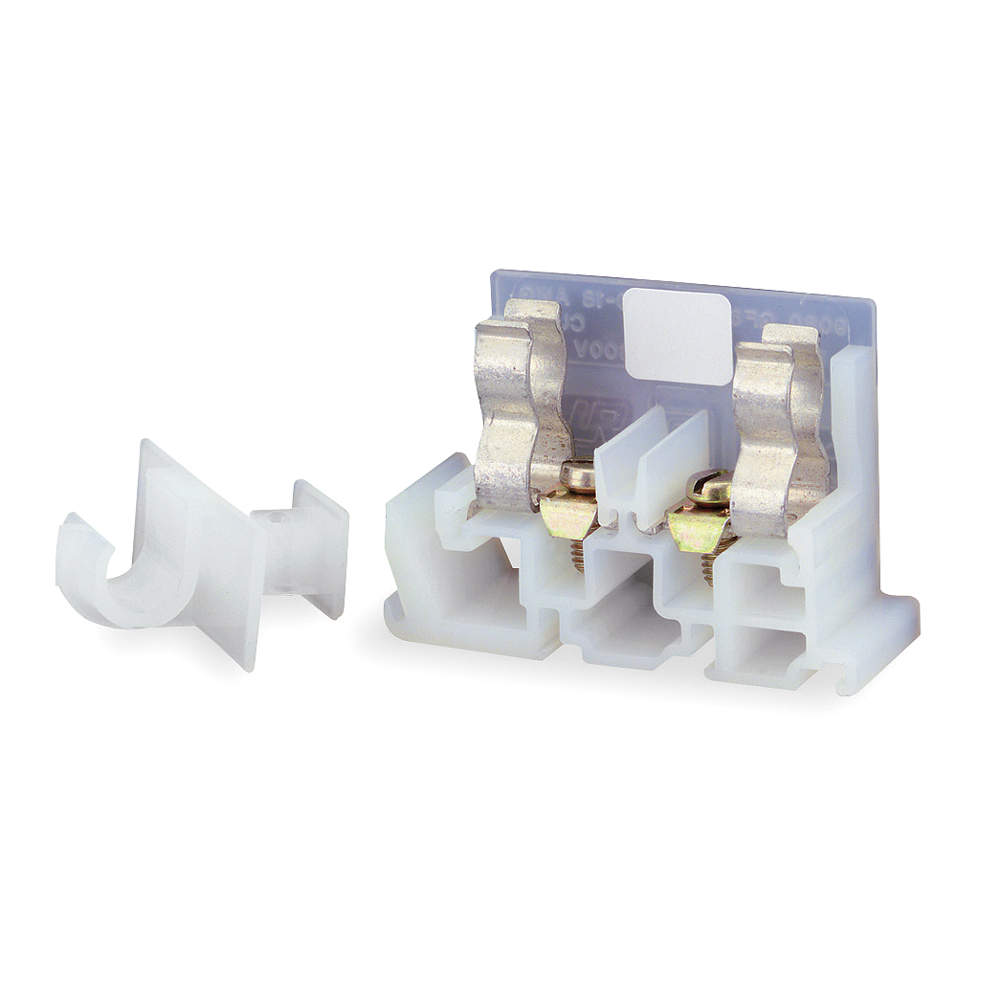

Square D SQD9080GF6 SQ D 9080GF6 TERMINAL BLOCK 600V, Black

Square D SQD9080GF6 SQ D 9080GF6 TERMINAL BLOCK 600V, Blackzoom

Attributes

Key Value
Amp Range of Fuse Block.0 to 30A
Application9080G,GF6B
BrandSquare D
Catalog Number9080GF6
CategoryConnectors, Interconnec.
Circuit Protection TypeFuse
ColorWhite, Natural
Color FamilyNatural
ConditionNew
ConnectionClamp terminal zinc pla.
Connection TypePressure Plate
connector gender-
Country of OriginMX - Mexico, Mexico
Current30 A
Current - UL30 A
current rating30.00 a
DescriptionTERMINAL BLOCK 600V 30A.
Detailed DescriptionTerminal Block Connecto.
Digi-Key Part Number4008-9080GF6-ND
Disconnect TypeFuse
ECCNEAR99
Estimated Lead Time (in.3
Family SeriesSquare D Terminal Blocks
Features-
For Fuse Series9080
For Fuse Size1-1/2" L x 13/16" dia.
For Maximum Wire Size10 AWG
For Minimum Wire Size18 AWG
Fuse Block DesignOpen
Fuse Block or Fuse Hold.Fuse Block
Fuse Block or Holder AC.600VAC
Fuse Block or Holder DC.Not Rated
Fuse SizeN/A
Fuse Type-
Fuse UL ClassMidget
Gross Weight0 lbs
GTIN00785901155034, 7859011.
Height2.19"
Housing ColourNatural
Housing MaterialNylon
ItemFuse Block
Item Number9080GF6
item per pack1
Item TypeTerminal block;GF6B
Length2.2 in
Length (Straight Wirewa.2.2 in
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number427634
Manufacturer Product Nu.9080GF6
Manufacturer Standard L.1 Weeks
MaterialNylon block;Tin plated .
Material - InsulationPolyamide (PA), Nylon
Material Flammability R.-
Maximum Operating Tempe.221 Degrees F
Maximum Voltage600V AC/DC
MfrSchneider Electric
Minimum Operating Tempe.-40 Degrees F
MountingDin Rail
Mounting StyleBolt Down
Mounting TypeDIN
Net Weight0 lbs
Number of Connections2
number of contacts2
Number of Levels1
Number of Poles1
Number of Positions2
Overall Depth0.75 in
Overall Length2.2 in
Overall Width2.19 in
packagebox
Packagebox
Pieces per Foot16
Product StatusActive
RoHS CompliantYes
Sensor Block IndicatorNone
SeriesSquare D, 9080 Series, .
Size0.75
Spacing55.63 mm
Special FeaturesFingersafe DIN 57470, M.
StandardCSA file 62144 class 62.
StandardsUL94V2
Stripping Length-
Terminal - Width19.0mm
Termination StyleScrew
TypeDisconnect
UNSPSC39121410
UPC785901155034
UPC Code785901155034
Voltage - IEC-
Voltage - UL600V
Voltage Rating600 V AC/DC
voltage rating600.0 v
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width0.75"
Wire Entry PositionSide
Wire Gauge or Range - A.10-18 AWG
Wire Gauge or Range - m.-
Wire Size10 AWG, AWG 18...AWG 10.
Wire Size Ranges18 AWG - 10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommarvac.com961082.9915Square D2.99 @ 1
Radwell9080-GF68.7110In StockSCHNEIDER ELECTRIC8.71 @ 10
thumbzoomZoroG094975111.151314Square D0.0511.15 @ 1
steinerelectric.com3229311.171In StockSquare D?11.17 @ 1
thumbzoomGalco9080GF6-SQD11.481In StockSquare D11.48 @ 1
thumbzoomindustrialrefrigerationparts.com9080GF612.111In StockSquare D2.012.11 @ 1
Graybar8825027012.42081In StockSquare D (Schneider Electric)12.4208 @ 1
thumbzoomDigi-Key1715812913.66910In StockSchneider Electric13.669 @ 10
thumbzoomTedss202500469014.991In StockSQUARE D14.99 @ 1
thumbzoommostelectric.com9080GF615.081In StockSQUARE D/TELEMECANIQUE15.08 @ 1
thumbzoomsustainablesupply.comC120365018.281In StockSquare D0.0518.28 @ 1
thumbzoommayerelectric.comSQD9080GF618.691In StockSQUARE D18.69 @ 1
thumbzoomblackhawksupply.com9080GF620.091In StockSquare D20.09 @ 1
thumbzoomcrescentelectric.com5832620.1711294Square D20.17 @ 1
us.rs-online.com7032968924.0116Square D24.0 @ 1
thumbzoomRaptor SuppliesAG7CHM27.02869651In StockSQUARE D27.0286965 @ 1
thumbzoomNational Supply Network6968241727.621In StockSquare D27.62 @ 1
grainger.caSQD9080GF627.68949891In StockSQUARE D0.0527.6894989 @ 1

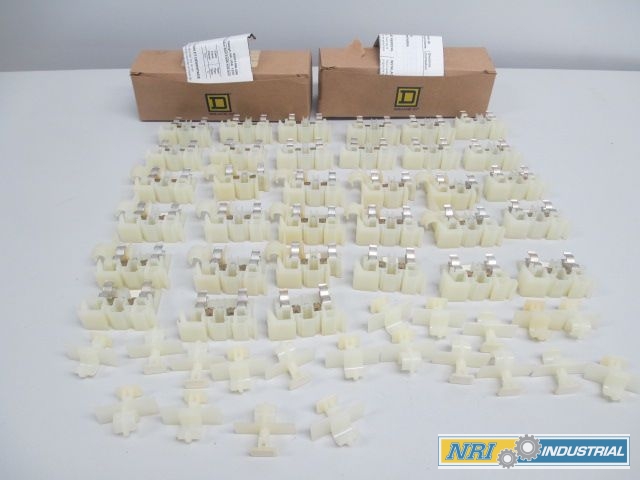

thumbzoomNRI IndustrialD24034130.111In StockSQUARE D30.11 @ 1
thumbzoomgordonelectricsupply.com9080GF690.01In Stock10SQUARE D90.0 @ 1
thumbzoomNewark11R7948105.071In StockSQUARE D BY SCHNEIDER ELECTRIC105.07 @ 1
standardelectricsupply.com968608112.21In StockSquare D112.2 @ 1
