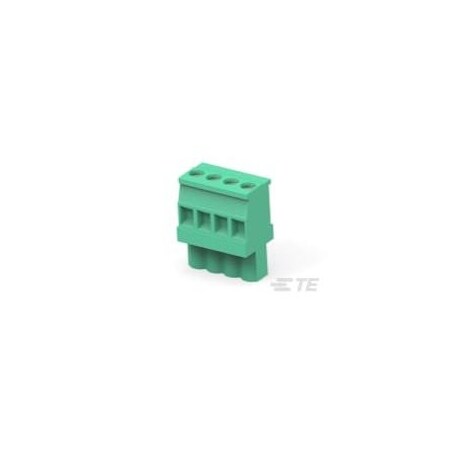

TE Connectivity 1-284041-1

B00KSNEKB4

TE Connectivity Part Number 1-284041-1

TE Connectivity Part Number 1-284041-1zoom

Attributes

Key Value
Applies ToWire/Cable
Base Product Number284041
Block TypeNone
CategoryConnectors, Interconnec.
Centerline5.08 mm [ .2 in ]
ColorGreen
Connector StylePlug
Contact Base MaterialPhosphor Bronze
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Tin
Contact Mating FinishTin
Contact Tail Length-
Current - IEC-
Current - UL15 A
Current Rating (Max) (A)15
DescriptionTERM BLOCK PLUG 11POS 5.
Detailed Description11 Position Terminal Bl.
Digi-Key Part Number1-284041-1-ND
FeaturesRetention Latches (Non-.
Header Orientation-
Housing ColorGreen
Housing MaterialPA 6.6, Polyamide (PA66.
Ingress Protection-
Insulation Height0.984" (25.00mm)
InterlockWithout
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-284041-1
Manufacturer Standard L.18 Weeks
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions11
Number of Rows1
Operating Temperature-40?C ~ 110?C
PackageBulk
Package Quantity1
Pitch0.200" (5.08mm)
Plug Wire Entry270?
Positions Per Level11
Product StatusActive
Screw FlangeWithout
Screw MaterialBrass
Screw Plating MaterialNickel
Screw SizeM3
Screwless Terminal BlockNo
SeriesBuchanan
Side StackableYes
Stacked LevelsWithout
Termination StyleScrew - Rising Cage Cla.
Torque - Screw0.79 Nm (7.0 Lb-In)
TypePlug, Female Sockets
Voltage (VAC)300
Voltage - UL300 V
Wire Entry AngleSide
Wire Gauge or Range - A.12-30 AWG
Wire Gauge or Range - m.0.05-3mm?
Wire Range.05 to 3 mm? [ 30 to 12.
Wire Strip Length6-7.5mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1-284041-17.3210200TE CONNECTIVITY/AMP BRAND7.32 @ 10
thumbzoomDigi-Key182732711.0410200TE Connectivity AMP Connectors11.04 @ 10
thumbzoomZoroG005797698105.510In StockTe Connectivity105.5 @ 10
