- mpnU10L9C
- brandname: U.S. Motors
- manufacturername: U.S. Motors

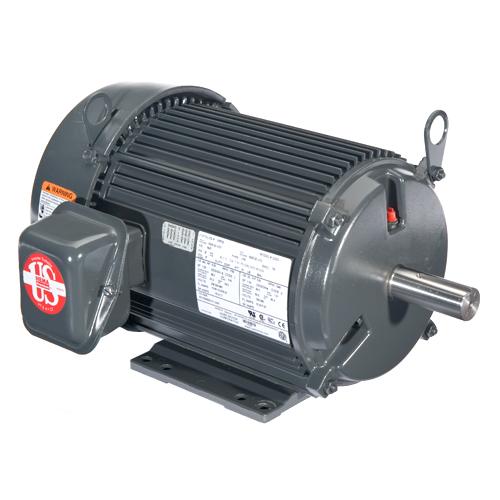

US Motors U10L9C
- PartNumber: U10L9C
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 13 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 84% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 143.00 |
| Family Series | US Motors Motors |
| FL Amps | 13 |
| FL Efficiency | 84 |
| Frame | 215T |
| Frequency | 60 Hz |
| Gross Weight | 130 lbs |
| Hertz | 60 |
| Horsepower | 10 hp |
| HP | 10 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,10/2.5HP,2 SP. |
| Item Number | U10L9C |
| Kilowatts | 7.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C867 |
| Manufacturer Part Number | U10L9C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C867 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 215T |
| Net Weight | 0 lbs |
| Nominal Voltage | 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1, 2 |
| Part Number | U10L9C |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,755 RPM, 870/1755 |
| Service Factor | 1.15 |
| Ship Weight | 130 lbs. |
| Speed (RPM) | 1755 |
| Voltage | 460V |
| Voltage (AC) | 460 VAC |
| Volts | 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0400660 | 1447.0 | 1 | In Stock | | U.S. Motors | 130.0 | 1447.0 @ 1 |
 | motorsandcontrol.com | U10L9C | 1921.1 | 1 | In Stock | | US Motors (Nidec) | 143.0 | 1921.1 @ 1 |
 | Galco | U10L9C-USM | 1971.74 | 1 | In Stock | | US Motors | 130.0 | 1971.74 @ 1 |
 | emotorpro.com | U10L9C | 2029.18 | 1 | In Stock | | U.S. Motors | 130.0 | 2029.18 @ 1 |
| motionindustries.com | 02899264 | 2893.93 | 1 | In Stock | | US Motors (Nidec) | | 2893.93 @ 1 |
