- mpnT32V2BFC
- brandname: US Motors
- manufacturername: US Motors

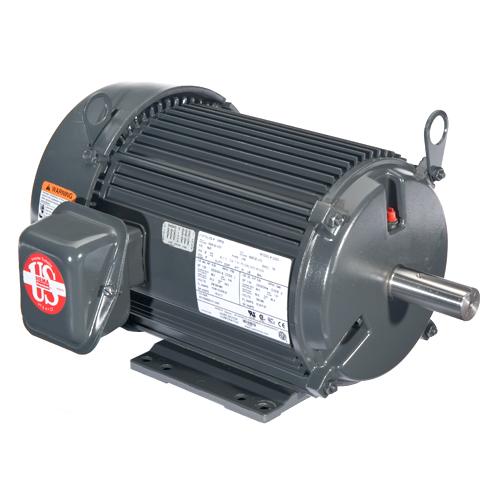

U.S. Motors US Motors Inverter Duty, 1 1/2 HP, 3-Phase, 1725 RPM Motor, T32V2BFC
- Brand: US Motors
- PartNumber: T32V2BFC
- PackageQuantity: 1
- Binding: Kitchen
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| AMP | 2.5, 5, 5.1 |
| Amps | 5.1-5.0/2.5 |
| Bearings | Ball |
| CE Approved | No |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Cast Iron |
| Condensing | No |
| Construction | Cast Iron |
| CSA Certified | Yes |
| Diameter | 6-3/10 in |
| Drive End Flange Type | C-Face |
| Efficiency | 76% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 37.40 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| FL Amps | 5.1-5.0/2.5 |
| FL Efficiency | 76 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 34 lbs |
| Height | 12 in |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Indoor Outdoor | Indoor/Outdoor |
| Installation Type | Flanged |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item | Motor,3PH,1.5HP,1800,20. |
| Item Number | T32V2BFC |
| Kilowatts | 1.1 kW |
| Length | 18-1/2 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | J063WFC0175015B |
| Manufacturer Part Number | T32V2BFC |
| Material | Steel |
| Maximum Ambient Tempera. | 40? C |
| Model Number | J063WFC0175015B |
| Motor Enclosure | Totally Enclosed Fan-Co. |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 18-1/2 in x 12 in x 12 . |
| Overload Protection | None |
| Part Number | T32V2BFC |
| Phase | 3, Three Phase |
| Power Source | Electric |
| Product Type | Motor, General Purpose,. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM Range | 1400 and Above |
| Service Factor | 1.15 |
| Shaft Length | 2-3/50 in |
| Shaft Size | 5/8 in |
| Ship Weight | 34 lbs. |
| Speed (RPM) | 1725 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMT32V2BFC |
| UL Listed | No |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460, 208-230/. |
| Weight | 34 |
| Width | 12 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0400055 | 339.99 | 1 | In Stock | | U.S. Motors | 26.0 | 339.99 @ 1 |
 | Global Industrial | WBB465977 | 398.95 | 1 | In Stock | | US Motors | | 398.95 @ 1 |
 | emotorpro.com | T32V2BFC | 422.16 | 1 | In Stock | | U.S. Motors | 34.0 | 422.16 @ 1 |
 | Galco | T32V2BFC-USM | 444.51 | 1 | In Stock | | US Motors | 34.0 | 444.51 @ 1 |
 | motorsandcontrol.com | T32V2BFC | 444.51 | 1 | In Stock | | US Motors (Nidec) | 37.4 | 444.51 @ 1 |
 | National Supply Network | B465977 | 448.84 | 1 | In Stock | | US MOTORS | | 448.84 @ 1 |
 | Guardian | 04089363 | 586.12 | 1 | In Stock | | US Motors | | 586.12 @ 1 |
 | bscsource.com | T32V2BFC | 870.49 | 1 | In Stock | | US Motors | | 870.49 @ 1 |
| motionindustries.com | 02899217 | 941.06 | 1 | In Stock | | US Motors (Nidec) | | 941.06 @ 1 |
| ferguson.com | 9585674 | 985.94 | 1 | In Stock | | US Motors | | 985.94 @ 1 |
