WAGO 256-410

mpn256-410
brandname: WAGO
manufacturername: WAGO

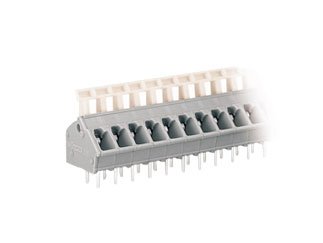

WAGO 256-410 10 Position 5/5.08 mm Pin Spacing 28-12 AWG 2 Solder Pin PCB Terminal Strip - 20 item(s)

WAGO 256-410 10 Position 5/5.08 mm Pin Spacing 28-12 AWG 2 Solder Pin PCB Terminal Strip - 20 item(s)

zoom

Brand: WAGO
PartNumber: 256-410
Model: 256-410
PackageQuantity: 1
Manufacturer: WAGO
Label: WAGO

Attributes

Key	Value
Actuator	Push-button
Approvals	CSA, UL
Brand	WAGO
Catalog Number	256-410
Color	gray
Composition	Polyamide
Conductor Range	12-28 AWG Conductor Ran.
Connection	CAGE CLAMP
Connection Actuation	Pushbutton
Connection Type	Spring Clamp
Country of Origin	Switzerland
CSA Current	15 A
CSA Max Wire Size	12 AWG
CSA Voltage	300 VAC
CSA Wire Range (AWG)	28-12 AWG
Current Rating	24 A
Depth	17.6 mm / 0.693 inches
Depth UOM	Inch
Family Series	Wago Terminal Blocks, 2.
Gross Weight	0 lbs
GTIN	4044918757331
Height	22.2 mm / 0.874 inches
Height UOM	Inch
IEC Current	24 A
IEC Max Wire Size (mm2)	2.5 mm2
IEC Voltage	630 VAC
IEC Wire Range (mm2)	0.08-2.5 mm2
Item Number	256-410
Item Type	PCB terminal block
Made in USA	No
Manufacturer	WAGO
Manufacturer Part Number	51143530
Material	Polyamide (PA66)
Mounting Type	PCB Mount
Net Weight	0.0213 lbs
Number of Levels	1
Number of Poles	10
PCB Contact	THT
Pin Length	4 mm
Pin Spacing	5-5.08 mm
Pluggable	No
Product Series	256
RoHS	Yes
RoHS Indicator	Yes
Temperature Range	-76-221 ?F
UL Current	15 A
UL Max Wire Size	12 AWG
UL Voltage	300 VAC
UL Wire Range (AWG)	28-12 AWG
Voltage Rating	250
Weight	9.692
Weight UOM	Grams
Width	2.083
Width UOM	Inch
Wire Entry Position	Side

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Heilind Electronics	256-410	4.1006	40	266		WAGO		4.1006 @ 40
	Future Electronics	1037645	4.524	20	20		WAGO		4.524 @ 20
	Platt.com	0300151	5.14	1	20		Wago		5.14 @ 20
	Galco	256-410-WAGO	5.68	20	20		Wago	0.0213	5.68 @ 20
	crescentelectric.com	1075911	5.86	1	20		WAGO		5.86 @ 20
	Newark	79K2076	8.12	20	20		WAGO		8.12 @ 20
	Misumi USA	256-410	11.63	1	20		WAGO		11.63 @ 20
