Weg Electric 02036ET3E256JM-S

B07C9BC3V7

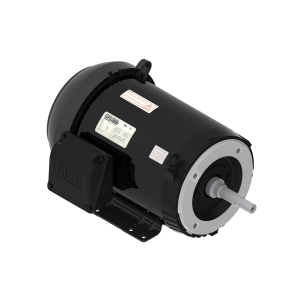

WEG Electric, 02036ET3E256JM-S, 20HP, 3600RPM, 3PH, 208V;230V;460V, 254/6JM Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor.

WEG Electric, 02036ET3E256JM-S, 20HP, 3600RPM, 3PH, 208V;230V;460V, 254/6JM Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor.zoom

Attributes

Key Value
Amperage Rating50.2 to 45.4/22.7 A
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Degree of ProtectionIP55
Description:MOTOR 20HP 2P 254/6JM W.
Dimensions24.843 in L
Drive End Flange TypeC-Face
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight256.00
Family SeriesWEG Electric Motors
FL Amps22.7
FL Efficiency91
FlangesFlange C
Frame254/6JM, 256JM, 254JM
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower20 hp
HP20
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number02036ET3E256JM-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number02036ET3E256JM-S
MaterialRolled Steel
MFG Part #:02036ET3E256JM-S
Model13373887
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
NEMA Frame254/6JM
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating20 hp
Part Number02036ET3E256JM-S
Phase3, 3 ph
Product TypePump
Replaces02036EP3E256JM-S
RotationCW/CCW
RPM3600, 3400 - 3600, 3,60.
Service Factor1.15
Speed3515 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating29.5 ft-lb
UPC:7909265993047
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Volts208/230/460
Weight258.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com02036ET3E256JM-S1474.01In StockWEG235.01474.0 @ 1
thumbzoommotorsandcontrol.com02036ET3E256JM-S2198.721In StockWEG Electric256.02198.72 @ 1
thumbzoomWalker Industrial02036ET3E256JM-S2223.751In Stock17WEG2223.75 @ 1
kscdirect.comWEG 02036ET3E256JM-S2241.791In StockWEG ELECTRIC CORP2241.79 @ 1
thumbzoomMRO Supply25204652268.871In StockWEG2268.87 @ 1
thumbzoomGalco02036ET3E256JM-S-WEG2435.251In StockWEG Electric2435.25 @ 1
thumbzoomindustrialrefrigerationparts.com02036ET3E256JM-S2511.881In StockWEG258.02511.88 @ 1
thumbzoomRadwell02036ET3E256JM-S2700.01In StockWEG2700.0 @ 1
thumbzoomDealers Electric02036ET3E256JM-S2707.091In StockWeg256.02707.09 @ 1
thumbzoomPurvis02036ET3E256JM-S2710.011In StockWEG2710.01 @ 1
