Alpha Wire 2824/2 WH001

B00KSVU4Z2

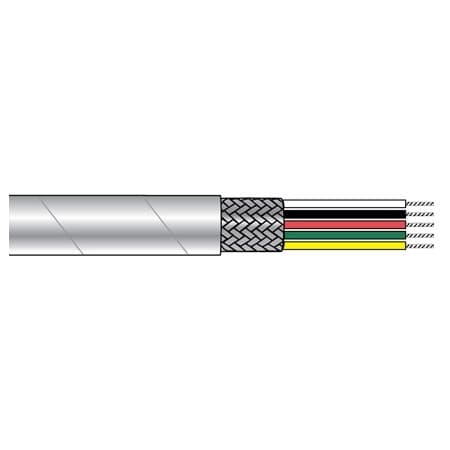

Alpha Wire Part Number 2824/2 WH001

Alpha Wire Part Number 2824/2 WH001zoom

Attributes

Key Value
Cable TypeMulti-Conductor, Commun.
CategoryCables, Wires
Conductor InsulationPolytetrafluoroethylene.
Conductor MaterialCopper, Silver Coated
Conductor Strand19/34
Country of Origin (subj.Unknown
Features-
Insulation MaterialPolytetrafluoroethylene.
Jacket (Insulation) Dia.0.146"" (3.71mm)
Jacket (Insulation) Mat.Polytetrafluoroethylene.
Jacket (Insulation) Thi.0.0118"" (0.300mm)
Jacket ColorWhite
Jacket MaterialPolytetrafluoroethylene.
Length1000.0' (304.8m), 1000 .
MfrAlpha Wire
NotificationMay contain up to 5 spl.
Number of Conductors2
Operating Temperature-55?C ~ 200?C
PackageSpool
PackagingCoil
Part StatusActive
Quantity4
Ratings-
Series2824/2 Series, -
Shield Coverage90%
Shield MaterialCopper, Silver Coated
Shield TypeBraid
ShieldingShielded
Stranding19x34
UsageCommunication, Control
Voltage600V
Wire Gauge22 AWG
Wire Size22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomalldataresource.comA2824/2-FT9.021In StockAlpha Wire9.02 @ 1
thumbzoomDigi-Key2824/2WH001-ND4574.621In StockAlpha Wire4574.62 @ 1
thumbzoomNewark86K71916968.911In StockALPHA WIRE6968.91 @ 1
us.rs-online.com704791347358.471In StockAlpha Wire7358.47 @ 1
Radwell28242WH0017424.261In StockALPHA WIRE7424.26 @ 1
thumbzoomZoroG21266627570.381In Stock30Alpha Wire7570.38 @ 1
thumbzoomAI Consolidated2824-2-WH001-ALPHA-WIRE7722.771In StockAlpha Wire12.07722.77 @ 1
