- mpnAOM3704T
- brandname: Baldor
- manufacturername: Baldor

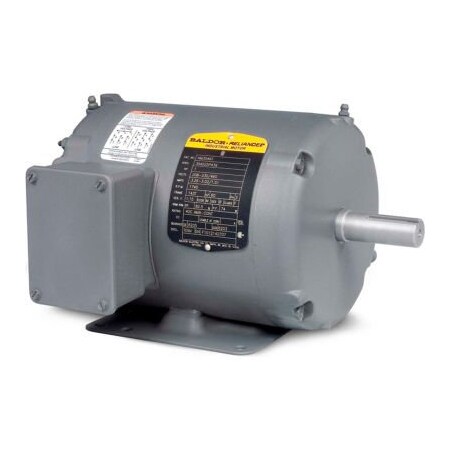

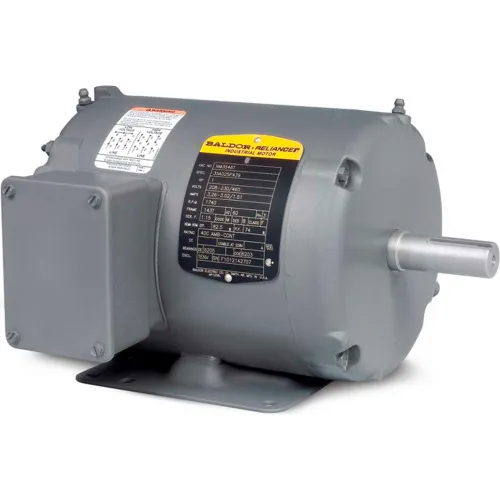

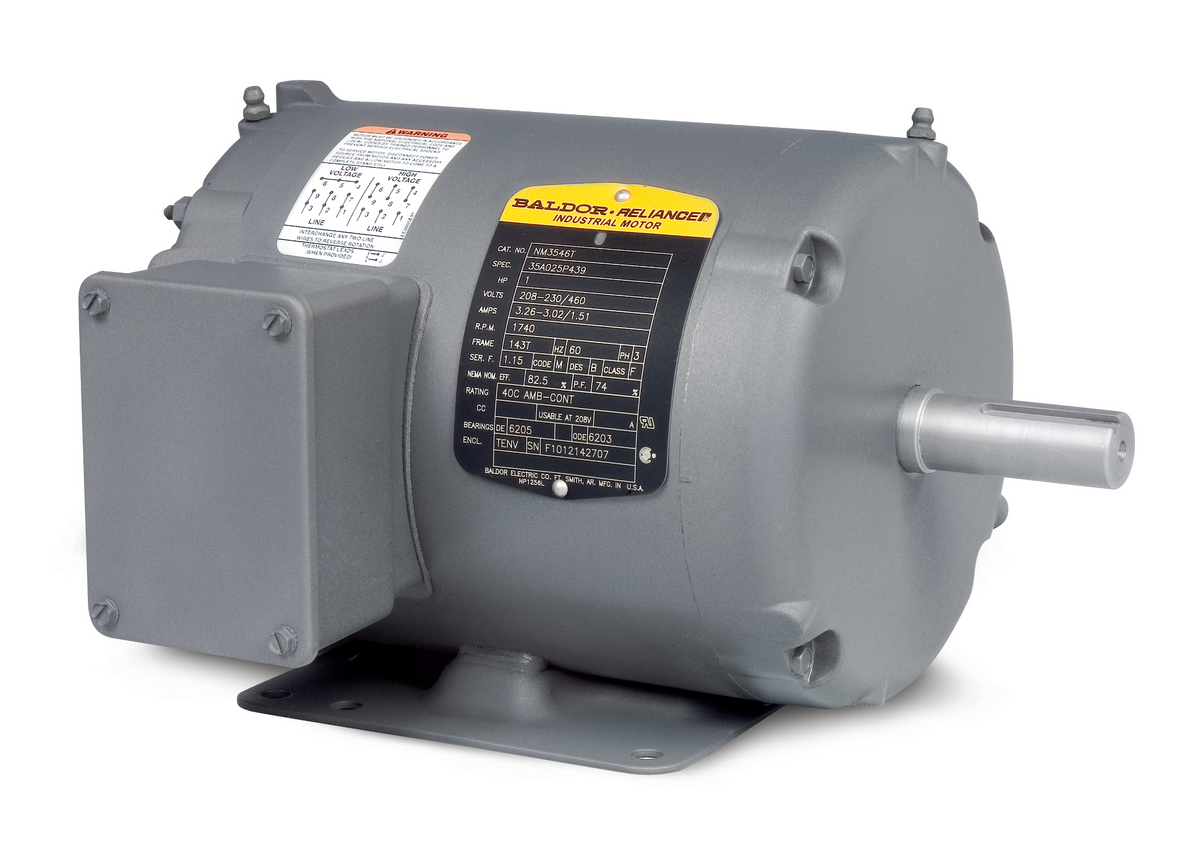

Baldor AOM3704T HVAC Motor
- Brand: Baldor
- PartNumber: AOM3704T
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 9.6/4.8/10.4 |
| Application | HVAC |
| Approvals | CSA, UL |
| Bearings | Ball |
| Construction | Aluminum |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 84.0% |
| Efficiency % | 84 % |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 92.00 |
| Family Series | Baldor Motors, AOM Seri. |
| FL Amps | 10.4-9.6/4.8 |
| FL Efficiency | 84 |
| Frame | 213T |
| Frame Type | 213T |
| Gross Weight | 88 lbs |
| Hertz | 60 |
| Horsepower | 3 HP |
| Horsepower Rating | 3 HP |
| HP | 3 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | AOM3704T |
| Manufacturer | Baldor-Reliance, Baldor. |
| Manufacturer Model # | 37F359S065G1 |
| Manufacturer Part Number | AOM3704T |
| Maximum Ambient Tempera. | 40? C |
| Motor Construction | Steel |
| Motor Amperage (Full Lo. | 4.800 Amp, 10.400 Amp, . |
| Motor Enclosure Type | Totally Enclosed Air Ov. |
| Motor Frame Model | 213T |
| Motor Frequency | 60 Hz |
| Motor Horsepower | 3 HP |
| Motor Insulation Class | Class F Insulation |
| Motor Nema Design | Nema Design H |
| Motor RPM's | 1200 RPM |
| Motor Voltage | 208 Volt, 230 Volt, 460. |
| Motor Voltage Phases | 3 Phase |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed, Foot Mount, Rig. |
| NEMA Frame | 213T |
| Net Weight | 88 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 16.32", 16.32 " |
| Part Number | AOM3704T |
| Phase | 3, 3 Phase |
| Product Series | AOM |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1155, 1155 RPM, 1100 - . |
| Series | HV3 Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 1.375" |
| Ship Weight | 92 lbs. |
| Speed (RPM) | 1155 |
| Supply Voltage | 208-230/460 VAC |
| UPC Code | 781568121771 |
| Voltage | 208-230/460, 208V, 230V. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | galesburgelectric.com | AOM3704T | 893.44 | 1 | In Stock | | Baldor | | 893.44 @ 1 |
 | emotorpro.com | AOM3704T | 900.92 | 1 | In Stock | | Baldor | 92.0 | 900.92 @ 1 |
| us.rs-online.com | 71935109 | 907.86 | 1 | 3 | | Baldor-Reliance | | 907.86 @ 1 |
 | Square One | AOM3704T | 966.24 | 1 | In Stock | | BALDOR | | 966.24 @ 1 |
| factorysupplyoutlet.com | US25OS | 994.37 | 1 | In Stock | | Baldor-Reliance | | 994.37 @ 1 |
 | Galco | AOM3704T-BLDR | 996.87 | 1 | In Stock | | Baldor | 88.0 | 996.87 @ 1 |
 | Walker Industrial | AOM3704T | 996.87 | 1 | In Stock | | Baldor | | 996.87 @ 1 |
| motorsandcontrol.com | AOM3704T | 1038.4 | 1 | In Stock | | Baldor Reliance | 92.0 | 1038.4 @ 1 |
 | Global Industrial | WBB388558 | 1049.0 | 1 | In Stock | | Baldor-Reliance | | 1049.0 @ 1 |
 | pumpproducts.com | AOM3704T | 1180.67 | 1 | In Stock | | Baldor | | 1180.67 @ 1 |
| cbtcompany.com | AOM3704T | 1181.28 | 1 | In Stock | | Baldor Reliance | | 1181.28 @ 1 |
| rspsupply.com | BALDOR AOM3704T | 1223.42 | 1 | In Stock | | Baldor | | 1223.42 @ 1 |
| kirbyrisk.com | 3128820 | 1307.09 | 1 | In Stock | | Baldor | | 1307.09 @ 1 |
 | Zoro | G605129936 | 1750.0 | 1 | In Stock | | Baldor-Reliance | | 1750.0 @ 1 |
 | Raptor Supplies | AJ6NVK | 2969.1229815 | 1 | In Stock | | BALDOR MOTOR | | 2969.1229815 @ 1 |
