Cle-line C20495

mpnC20495
brandname: Cle-Line
manufacturername: Cle-Line

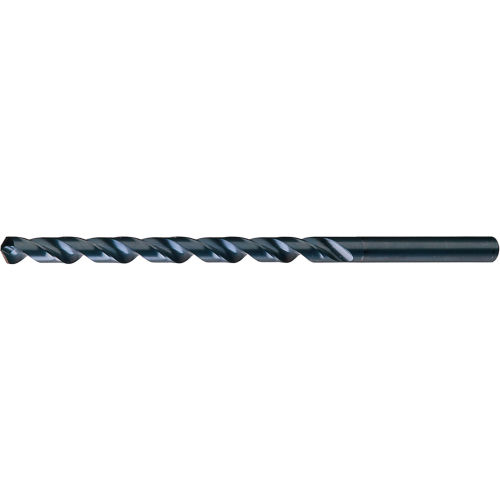

Cle-Line C20495 Extra Length Extended Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 15/32" Drill Diameter

Cle-Line C20495 Extra Length Extended Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 15/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20495
Model: C20495
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Coolant Fed	Non-Coolant Through
Cutting Depth	14 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.4688
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.4688"
Diameter (Fraction)	15/32"
Drill Bit Point Angle	118 Degrees
Drill Bit Size	15/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.1408 in
Drill Size - Decimal In.	0.4688 in
Drill Size - Fraction	15/32 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	14 in, 14.0000"
Flute Length (Metric)	355.60mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	1 7/8 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	18 in, 18.0000"
Overall Length (Metric)	457.20mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Primary Material Applic.	K, P
Series	1807
Shank Configuration	Straight
Shank Dia.	15/32 in
Shank Length	4.0000", 4 in
Shank Length (Metric)	101.60mm
Shank Size	0.4688", 15/32 in
Shank Size (Metric)	11.91mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	C20495
Standards	ASME B94.11M
Style	1807
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	15/32"
Type	General Purpose Heavy D.
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C20495	43.5	1	In Stock		Cle-Line		43.5 @ 1
	heavydutydepot.com	C20495	43.5	3	In Stock		Cle-Line		43.5 @ 3
	Global Industrial	WBB2543705	50.95	1	In Stock		Cle-Line		50.95 @ 1
	usmegastore.com	C20495	53.39	1	In Stock		Cle-Line		53.39 @ 1
	MRO Supply	6123840	54.58	1	In Stock		Cle-Line		54.58 @ 1
	Zoro	G4958661	54.92	1	In Stock	8	Cle-Line	0.65	54.92 @ 1
	AmazonSC	B00J9LVTF6	58.25	1	In Stock		Cle-line		58.25 @ 1
	imsbolt.com	C20495	97.48	1	In Stock		CLE-LINE		97.48 @ 1
