Hubbell HBL13R92D

B008KMGV8A

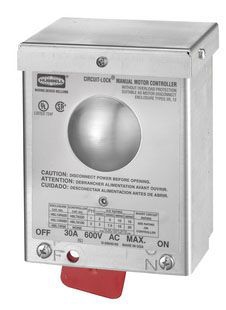

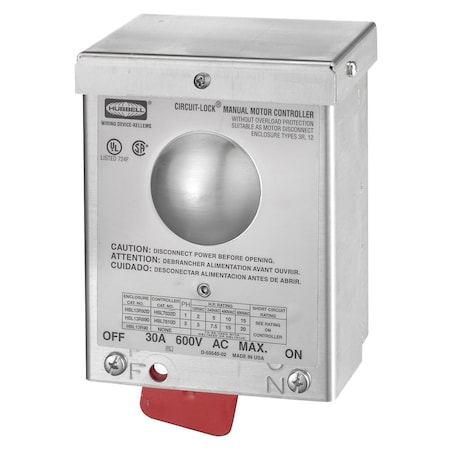

Hubbell HBL13R92D2 Pole Disconnect Switch with NEMA 3R, 30 amp, 600V

Hubbell HBL13R92D2 Pole Disconnect Switch with NEMA 3R, 30 amp, 600Vzoom

Attributes

Key Value
Amperage30A
Amperage Rating30A
Amps AC30 A
ApplicationRed Slide
BrandHubbell Wiring Device -.
Catalog NumberHBL13R92D
ColorAluminum
ConnectionPressure Screw Terminals
Country of OriginUS - United States, Pue.
Country of Origin (subj.United States
Current Rating30 AMPS, 30
Display TypeStandard Sized Product
DutyGeneral Duty
ECCNEAR99
Enclosure TypeNEMA 3R
Family SeriesHubbell Manual Motor Co.
Gross Weight1.555 lbs
ItemDisconnect Switch With .
Item NumberHBL13R92D
Item TypeDisconnect Switches
Length4.28 in.
Made in USANo
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL13R92D
Material of ConstructionAluminum
Max HP 120V 1PH2 hp
Max HP 240V 3PH5 hp
Max HP 480V 3PH10 hp
Max HP 600V 3PH15 hp
Metallic / Non-MetallicMetallic
MountingScrew
NEMA Enclosure Type3R
Net Weight1.405 lbs
Number of Poles2
Operating Current30 A
Phase1
Power Rating18000 W
Protection MethodNonfusible
Size5.52 in x 4.4 in x 3.3 .
Special FeaturesStandard Product
StandardUL508
StyleStandard Duty
Sub BrandManual Motor Controllers
Temperature RatingMinimum Continuous -40 .
TerminalsTerminal Screws
TypeDisconnect Switches
UNSPSC39121521
UPC783585202709
Voltage600V AC, 600V AC Max
Voltage Rating600

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caHBLHBL13R92D59.160447061In StockHUBBELL WIRING DEVICE-KELLEMS1.059.16044706 @ 1
Onlinecomponents.comHBL13R92D85.31In StockHubbell Wiring Device-Kellems85.3 @ 1
standardelectricsupply.com2205954100.01In StockHubbell100.0 @ 1
thumbzoomMRO Supply1019728100.01In StockHubbell Wiring100.0 @ 1
thumbzoomgordonelectricsupply.comHBL13R92D101.51In StockHUBBELL101.5 @ 1
thumbzoombscsource.comHBL13R92D105.891In StockHubbell Wiring Device-Kellems105.89 @ 1
thumbzoomGalcoHBL13R92D-HBBL110.241In StockHubbell1.555110.24 @ 1
us.rs-online.com73515418113.531In StockHubbell Wiring Device-Kellems113.53 @ 1
thumbzoomZoroG600702097116.121In Stock18Hubbell Wiring Device-Kellems116.12 @ 1
thumbzoomcrescentelectric.com32995124.291In StockHubbell Wiring Device - Kellems124.29 @ 1
thumbzoomRadwellHBL13R92D125.01In StockHUBBELL KELLEMS125.0 @ 1
Graybar25027463125.1041In StockHubbell Wiring Device - Kellems125.104 @ 1
steinerelectric.com263708144.391In StockHubbell Wiring Device-Kellems144.39 @ 1
thumbzoomUnited Electric767404160.171In StockWIRING DEVICE-KELLEMS160.17 @ 1
thumbzoomNational Supply Network54032818167.911In StockHubbell Wiring Device-Kellems167.91 @ 1
Newark71K4675172.91In StockHUBBELL WIRING DEVICES172.9 @ 1
kirbyrisk.com2059743182.961In StockHubbell182.96 @ 1
