Leeson 141268.00

B01MCZXLHF

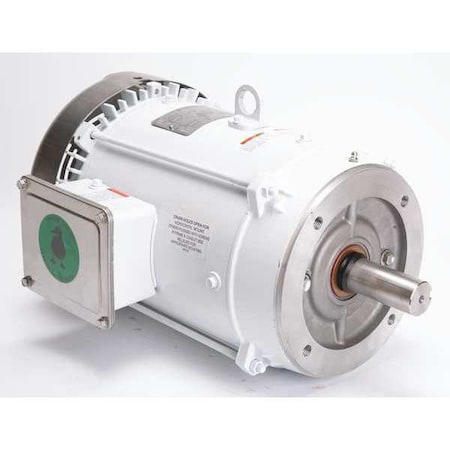

Leeson / Regal Beloit - 141268.00 - 10 HP Washdown Motor, 3-Phase, 1760 Nameplate RPM, 230/460 Voltage, Frame 215TC

Leeson / Regal Beloit - 141268.00 - 10 HP Washdown Motor, 3-Phase, 1760 Nameplate RPM, 230/460 Voltage, Frame 215TCzoom

Attributes

Key Value
Amperage Rating26.4/13.2 A
Amps26.4/13.2
Bearing TypeBall
BearingsBall
Body Dia.11.5 in
Bolt Circle Dia.7 1/4 in
CategoryElectric Motor
CompositionSteel
ConstructionRolled Steel
Description:..10HP..1800RPM.215TC.T.
Dimensions20.27 in L x 12.92 in W.
Drive End Bearing Size6309
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency91.7, 91.7%
Efficiency %91.7 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight161.00
Family SeriesLeeson Motors
FL Amps26.4/13.2&24.6/12.3
FL Efficiency91.7
Frame215TC
Frame MaterialRolled Steel
Frame RemarksWashdown, Footless
Frequency60, 50 Hz
Frequency Rating60 Hz
Full Load Amps26.4/13.2
Gross Weight0 lbs
Hertz50, 60
Horsepower10 hp
HP10
Hz60
Insulation ClassClass F4, F
ItemWashdown Brake Motor
Item ConditionFACTORY NEW
Item Number141268.00
KW7.5
Length Less Shaft17 1/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number141268.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:141268.00
Motor ApplicationWashdown
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting TypeFace
Motor Shell Length11.15"
Motor Thermal ProtectionNone
mountingC-face (NO base)
MountingRound, Footless
Mounting TypeC-Face, Round
NEMA Frame215TC
Net Weight0 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6206
Opp. Drive End Bearing .Ball
Overall Length20.27", 20 1/4 in
Part Number141268.00
Phase3, Three, 3 ph
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM1760, 1700 - 1800, 1,46.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.1 3/8 in
Shaft Diameter1.375", 1.375
Shaft Length3.4, 3 3/8 in, 3.4"
Shaft Size1.375 in Dia x 3.4 in L
Ship Weight180 lbs.
Special FeaturesWashdown Duty Motors
Speed1465 rpm
Speed (RPM)1465, 1760
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720051900
Voltage190V, 230V, 380V, 460V,.
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1412681370.01In StockLEESON1370.0 @ 1
Grainger48ZG421495.01In Stock10LEESON1495.0 @ 1
thumbzoomMRO Supply28341891587.581In StockLeeson1587.58 @ 1
AmazonTPB01MCZXLHF1736.811In Stock30Leeson / Regal Beloit1736.81 @ 1
thumbzoomZoroG47023151759.9911Leeson187.01759.99 @ 1
thumbzoomemotorpro.com141268.001895.211In StockLeeson180.01895.21 @ 1
thumbzoommotorsandcontrol.comLE-141268.002054.511In StockLeeson Electric161.02054.51 @ 1
thumbzoomDealers Electric141268.002145.9713Leeson180.02145.97 @ 1
us.rs-online.com733966702149.341In StockLeeson2149.34 @ 1
thumbzoomGalco141268.00-LEES2149.341In StockLeeson2149.34 @ 1
kscdirect.comLEE 141268.002213.651In StockLEESON ELECTRIC CORPORATION2213.65 @ 1
thumbzoomWalker Industrial141268-002526.951In Stock17Leeson2526.95 @ 1
