Leeson 141269.00

B01N1SCC0P

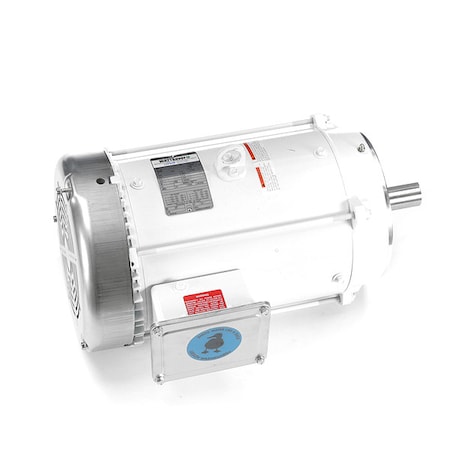

Leeson / Regal Beloit - C215T34WC5A - 10 HP Washdown Motor, 3-Phase, 3525 Nameplate RPM, 230/460 Voltage, Frame 215TC

Leeson / Regal Beloit - C215T34WC5A - 10 HP Washdown Motor, 3-Phase, 3525 Nameplate RPM, 230/460 Voltage, Frame 215TCzoom

Attributes

Key Value
Amperage Rating23.6/11.8 A
Amps23.6/11.8
Bearing TypeBall
BearingsBall
Body Dia.8.5 in
CategoryElectric Motor
CompositionSteel
ConstructionRolled Steel
Description:..10HP..3600RPM.215TC.T.
Dimensions20.27 in L x 12.92 in W.
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency90.2%
Efficiency %90.2 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight182.00
Family SeriesLeeson Motors
FL Amps23.6/11.8&22/11
FL Efficiency90.2
Frame215TC
Frame RemarksWashdown, Footless
Frequency50 Hz
Frequency Rating60/50 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower10 hp
HP10
Hz60, 60 Hz
Insulation ClassClass F, F
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number141269.00
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number141269.00
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:141269.00
Motor ApplicationWashdown
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Service Factor1.15
Motor Shaft DesignThreaded
Motor Shell Length11.15"
Motor Thermal ProtectionNone
MountingRound, Footless
mountingC-face (NO base)
Mounting TypeC-Face, Round
Nameplate RPM3,600 rpm
NEMA DesignB
NEMA Frame215TC
Net Weight0 lbs
Nominal Efficiency90.2 %
Nominal Voltage240 VAC, 480 VAC
Number of Speeds1
Overall Length20.27", 20 27/100 in
Part Number141269.00
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3600, 3525, 2,930 RPM
Service Factor1.15
Shaft Dia.1 3/8 in
Shaft Diameter1.375"
Shaft Length3.4"
Shaft Size1.375 in Dia x 3.4 in L
Ship Weight170 lbs.
Special FeaturesWashdown Duty Motors
Speed3525 rpm
Speed (RPM)2930, 3525
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720051917
Voltage190V, 230V, 380V, 460V,.
Voltage (AC)230 VAC, 460 VAC
Volts230/460
Weight170 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1412691377.01In StockLEESON1377.0 @ 1
thumbzoomMRO Supply28342031646.751In Stock14Leeson170.01646.75 @ 1
Grainger48ZG411755.01In Stock45LEESON1755.0 @ 1
thumbzoomZoroG0066266691898.9911Leeson170.01898.99 @ 1
thumbzoomemotorpro.com141269.001950.71In StockLeeson170.01950.7 @ 1
AmazonTPB01N1SCC0P1966.351In Stock30Leeson / Regal Beloit1966.35 @ 1
thumbzoommotorsandcontrol.comLE-141269.002134.313Leeson Electric182.02134.3 @ 1
thumbzoomDealers Electric141269.002220.5816Leeson170.02220.58 @ 1
us.rs-online.com733966872232.811In StockLeeson2232.81 @ 1
thumbzoomGalco141269.00-LEES2232.821In StockLeeson2232.82 @ 1
kscdirect.comLEE 141269.002278.461In StockLEESON ELECTRIC CORPORATION2278.46 @ 1
thumbzoomWalker Industrial141269-002600.931In Stock17Leeson2600.93 @ 1
