Marathon Electric GT0005

B006KM70NW

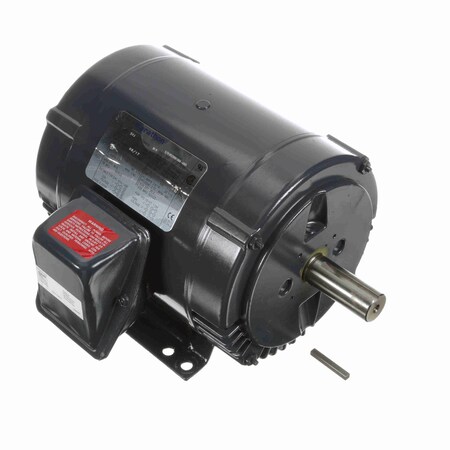

Marathon GT0005 182T Frame 182TTDB6076 Open Drip Proof General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 1-1/2 hp, 1200 RPM, 1 Speed, 208-230/460 VAC

Marathon GT0005 182T Frame 182TTDB6076 Open Drip Proof General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 1-1/2 hp, 1200 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.182TTDB6076
Amps4.4/2.2, 4.4/2.2 A
BearingsBall
BrandMarathon
C-Dimension13.72 (in.)
Catalog NumberGT0005
CEY
Country of Origin (subj.United States
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency86.5%
Electrical TypeSquirrel Cage Induction.
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Frame182T
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:182T
Frame Type182T
Frequency60/50
frequency rating:60 Hz
full load current:4.80
full load efficiency:86.50 %
HP1-1/2
Hz60
Insulation ClassF
insulation class:F
IP Code22
ip rating:12
KVA CodeJ
Manufacturer Model #182TTDB6076
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor horsepower:1-1/2 hp, 1.50 hp
Motor OrientationHorizontal
motor phase:3 ph
motor supply voltage:230/460 V
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Rigid Base
Number of Speeds1
ODE Bearing TypeBall
Overall Length13.72"
overall length (c-dimen.13.72 in
Phase3
Product CategoryGeneral Purpose NEMA Ge.
Product Type3 Phase
RotationReversible
RPM1180
RPM (Nameplate)1180
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1.15
service factor:1.15
Shaft Diameter1-1/8", 1-1/8 (in.)
shaft diameter:1.13 in
Shaft Extension2.75 (in.)
Shaft Length2.75"
Shaft TypeT
Ship Weight68 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1200 rpm
Type of Overload Protec.No
ULRecognized
Volts230/460
weight:75 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
emotorpro.comGT0005291.71In StockMarathon68.0291.7 @ 1
us.rs-online.com72649863425.511In StockMarathon Motors425.51 @ 1
thumbzoommotionindustries.com04869846461.741In StockMarathon Electric461.74 @ 1
thumbzoommidwestapplianceparts.comGT0005-MT-P477.871In StockMarathon477.87 @ 1
thumbzoomDreisilkerMA-RBC-GT0005528.321In StockMarathon528.32 @ 1
thumbzoomZoroG202060908557.31In StockMarathon557.3 @ 1
