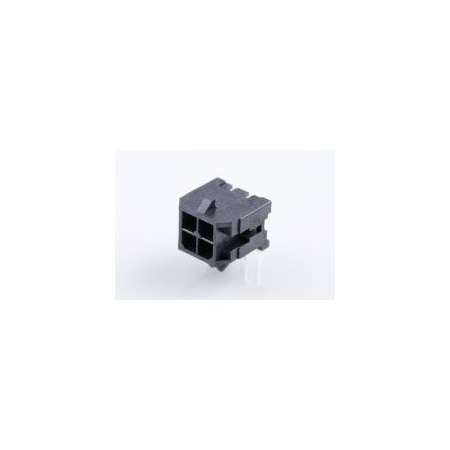

Molex / Waldom 43045-0401 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 430450401
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 43045-0401 |
| Angle | Right Angle |
| Application | Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 043045 |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header, Male Pin |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | 15.0?in (0.38?m), Gold |
| Contact Finish - Post | Brass, Tin |
| Contact Finish Thicknes. | Tin, 15.0?in (0.38?m) |
| Contact Finish Thicknes. | 100.0?in (2.54?m), Gene. |
| Contact Length - Mating | 0.125"" (3.18mm), - |
| Contact Length - Post | 0.125" (3.18mm), - |
| Contact Material | Liquid Crystal Polymer . |
| Contact Plating Thickne. | 0.381 ?m |
| Contact Shape | Square, Gold |
| Contact Type | 0.118"" (3.00mm), Male . |
| Current Rating | 8.5 A |
| Current Rating (Amps) | 600V, Varies by Wire Ga. |
| Description | CONN HEADER R/A 4POS 3MM |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM3248-ND |
| Family Name | Micro-Fit 3.0 |
| Fastening Type | -, Locking Ramp |
| Features | -, Glow-Wire Capable; S. |
| Flammability Rating | UL 94V-0 |
| For Use With | PCB Right-Angle Header |
| Hole Center to Center | 3 mm |
| Ingress Protection | UL94 V-0, - |
| Insulation Color | 8A, Black |
| Insulation Height | 0.290" (7.37mm), Square |
| Insulation Material | Liquid Crystal Polymer . |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0430450401 |
| Manufacturer Standard L. | 8 Weeks |
| Mated Stacking Heights | -, 100.0?in (2.54?m) |
| Material | High Temperature Thermo. |
| Material Flammability R. | UL94 V-0, Black |
| Max. Temp. | 260?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Type | Solder, Through Hole, R. |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 2, 4 |
| Number of Positions Loa. | All, Board to Cable/Wire |
| Number of Rows | 0.118"" (3.00mm), 2 |
| Operating Temperature | -40 to +105 ?C, -, -40?. |
| Orientation | Right Angle |
| Overall Contact Length | -, 0.290"" (7.37mm) |
| Package | Active, Tray |
| Part Status | Header |
| Pin Spacing | 0.118 " |
| Pitch | 3.00 mm (0.118") |
| Pitch - Mating | 0.118" (3.00mm), 4 |
| Plating Material | Gold |
| Primary Type | Soft Shell |
| Product Header | Micro-Fit 3.0? Wire-to-. |
| Product Status | Active |
| Row Spacing - Mating | All, 0.118" (3.00mm) |
| Series | Micro-Fit 3.0 43045, Tr. |
| Shrouding | Shrouded - 4 Wall, Thro. |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire, Sh. |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Solder, Locking Ramp, S. |
| Type | Right Angle Header |
| Voltage Rating | 600V, - |
