Molex / Waldom 76015-5402

B00GQQILDK

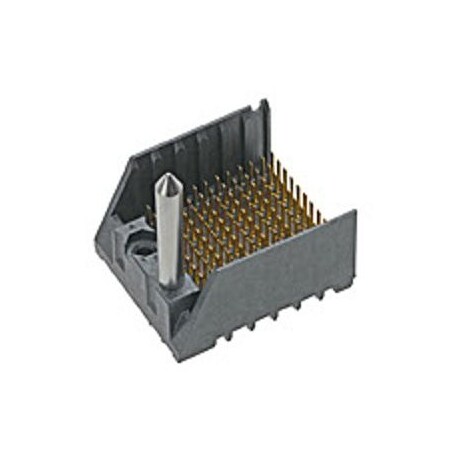

Molex / Waldom 76015-5402 Connector Backplane

Molex / Waldom 76015-5402 Connector Backplanezoom

Attributes

Key Value
Base Product Number076015
CategoryConnectors, Interconnec.
ColorBlack
Connector StyleI-Trac
Connector TypeHeader, Male Pins
Connector Usage-
Contact FinishGold Plated, Gold
Contact Finish Thickness30.0?in (0.76?m)
Contact Layout, Typical-
Contact Plating Thickne.0.762 ?m
Current Rating1 A
Current Rating (Amps)-
DescriptionCONN HEADER I-TRAC 56PO.
Detailed Description56 Connector Header, Ma.
Digi-Key Part Number0760155402-ND
Features-, Surface Mount Compat.
Flammability RatingUL 94V-0
Hole Center to Center1.85 mm, 3.7 mm (Mating.
ManufacturerMolex
Manufacturer Product Nu.0760155402
Manufacturer Standard L.14 Weeks
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.85?C
Max. Voltage120V AC/DC
MfrMolex
Mounting TypeThrough Hole
Number of Columns4
Number of Contacts56
Number of Positions56
Number of Positions Loa.All
Number of Rows7
Operating Temperature-
PackageTray
Package Quantity1
Pitch0.073" (1.85mm)
Product StatusActive
SeriesGbX I-Trac 76015
StandardsUL E29179
Terminal FinishTin Plated
Terminal TypeThrough Hole - Complian.
TerminationPress-Fit
Voltage Rating120V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 76015-54026.6310440MOLEX6.63 @ 10
thumbzoomjensentools.com101966558.841In StockMolex8.84 @ 1
thumbzoomDigi-Key27886579.0652300In StockMolex9.0652 @ 300
Newark56R95349.5300In StockMOLEX9.5 @ 300
thumbzoomZoroG60592651189.510In StockMolex89.5 @ 10
