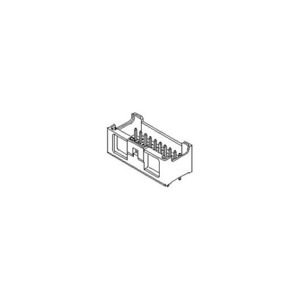

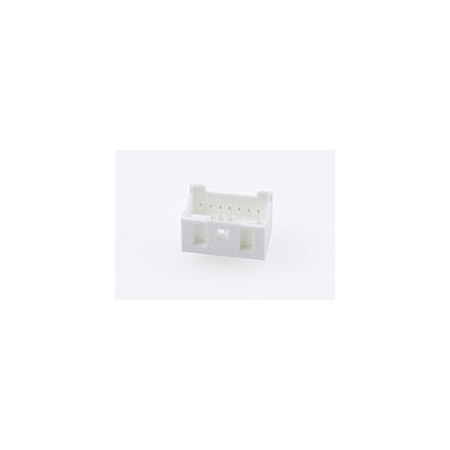

MOLEX - 55917-1410 - Multipole Connector

mpn55917-1410
brandname: Molex
manufacturername: Molex

MOLEX - 55917-1410 - Multipole Connector

PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	55917-1410
Application	Signal ; Wire-to-Board
Applications	General Purpose, Indust.
Base Product Number	055917
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	-
Contact Finish Thicknes.	-
Contact Length - Mating	0.150" (3.81mm)
Contact Length - Post	0.126" (3.20mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 14POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM9818-ND
Family Name	MicroClasp
Fastening Type	Latch Holder
Features	Board Guide
Flammability Rating	UL 94V-0
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.384" (9.75mm)
Insulation Material	Polybutylene Terephthal.
Manufacturer	MOLEX
Manufacturer Product Nu.	0559171410
Manufacturer Standard L.	10 Weeks
Mated Stacking Heights	13.2mm
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Max. Voltage	250V AC/DC
Mfr	MOLEX
Mounting Type	Through Hole
Number of Circuits	14
Number of Contacts	14
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.366" (9.30mm)
Package	Tray
Package Quantity	1
Pitch	2.00 mm (0.079")
Pitch - Mating	0.079" (2.00mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	0.197" (5.00mm)
Series	55917 Series, MicroClas.
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Standards	UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Kinked Pin, Solder, Thr.
Type	Vertical Header
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	01AH1448	0.346	1	74	MOLEX	0.346 @ 50
Waldom	MOLEX 55917-1410	0.35	200	54246	MOLEX	0.35 @ 200
Onlinecomponents.com	55917-1410	0.392	1	50	MOLEX / WALDOM	0.392 @ 50
jensentools.com	10194335	0.48	1	50	Molex	0.48 @ 50
Mouser	538-55917-1410	0.65	1	1039	Molex	0.65 @ 50
TME	MX-55917-1410	0.653	5	50	MOLEX	0.653 @ 50
Arrow	55917-1410	0.667	1	50	Molex	0.667 @ 50
Digi-Key	3263362	0.737	1	15730	Molex	0.737 @ 50
RS Delivers	406-445P	0.9336	1	4090	Molex	0.9336 @ 50
us.rs-online.com	70372921	0.94	1	100	Molex Incorporated	0.94 @ 50
Component Electronics	299-10135	1.38	1	110	Molex	1.38 @ 50
Radwell	55917-1410	1.8	1	50	MOLEX	1.8 @ 50
Zoro	G2079661	94.5	150	50	Molex	94.5 @ 150
