- mpnT25R-CY
- brandname: Panduit
- manufacturername: Panduit

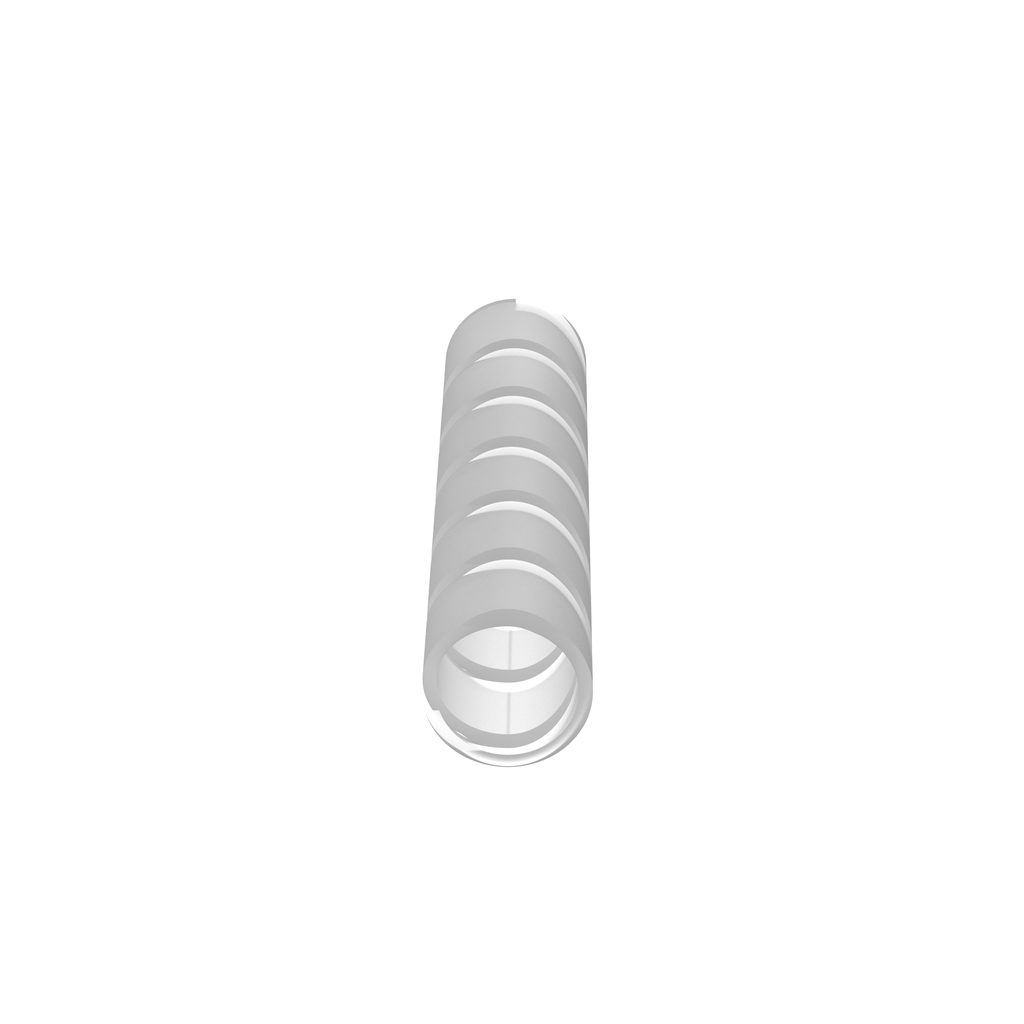

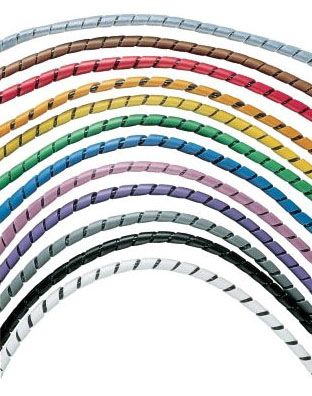

Panduit T25R-CY Spiral Wrap, Fire Resistant Polyethylene, Natural (100-Foot)
- Brand: Panduit
- PartNumber: T25R-CY
- Model: T25R-CY
- Color: Natural
- Size: .25-Inch by 100-Foot
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Abrasion Protection | Abrasion Resistant |
| Accessory Type | Spiral Wrap |
| Application | Harness Multiple Cables. |
| Approval | Approval |
| Approvals | UL |
| ARRA Compliant | Y |
| Base Product Number | T25 |
| Bundle Diameter | 3/16 to 2 in. |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Category | Cables, Wires - Managem. |
| Color | Color, Off White, White. |
| Color Family | Natural |
| Country of Origin | US - United States |
| Country of Origin (subj. | United States |
| Country of Origin 2Digit | US |
| Cut | Reverse/Left-Handed/Cou. |
| Diameter | 1/4 in |
| Diameter - Inside, Expa. | 2.000" (50.80mm) |
| Diameter - Inside, Non-. | - |
| Diameter - Outside, Non. | 0.250" (6.35mm) |
| EAN | 00074983396948 |
| ECCN | EAR99 |
| Environment | Indoor |
| Environment Protection | - |
| Family Series | Panduit Wire Harnesses,. |
| Features | - |
| Flammability Rating | UL94V-2 |
| For Maximum Bundle Diam. | 2 in |
| For Minimum Bundle Diam. | 3/16 in |
| Gross Weight | 1.75 lbs |
| GTIN Package | 00074983396948 |
| Hazardous Material Flag | N |
| Heat Protection | Fire Resistant |
| Includes | Installation Tool |
| Item | Spiral Wrap,0.25"x100ft. |
| Item Number | T25R-CY |
| Lead Content Indicator | N |
| Length | 100 ft., Length, 0.25 x. |
| Liquid Protection | - |
| Manufacturer | Panduit |
| Manufacturer Part Number | T25R-CY |
| Material | Polyethylene (PE), Poly. |
| Material Flammability R. | UL94 V-2 |
| Max. Operating Temperat. | 122 Degrees F |
| Maximum Bundle Diameter. | 2 |
| Maximum Bundle Diameter. | 50.8 |
| Maximum Bundle Outer Di. | Maximum Bundle Outer Di. |
| Maximum Bundle Size | 2 " |
| Maximum Operating Tempe. | 50 |
| Maximum Operating Tempe. | 122 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Order Qty | 1 |
| Min. Operating Temperat. | -40 Degrees F |
| Min. Order UOM | Roll |
| Minimum Bundle Diameter. | 0.1875 |
| Minimum Bundle Diameter. | 4.8 |
| Minimum Bundle Outer Di. | Minimum Bundle Outer Di. |
| Minimum Bundle Size | 0.1875 " |
| Minimum Operating Tempe. | -40 |
| Minimum Operating Tempe. | -40 |
| Net Weight | 0 lbs |
| Note | T25R-CY replaces T25R-C |
| Operating Temp. | -40 Degrees F to 122 . |
| Operating Temperature | -40 Degrees F to 122 . |
| Outer Diameter | 0.25 in. |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Package | Bulk |
| Packaging | Coil |
| Pallet Quantity | 160 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 280.0000 |
| Product Segment | IEI |
| Product Series | Spiral Wrap |
| Product Status | Active |
| Product Type | Spiral Wrap |
| Properties | Abrasion Resistant, Fla. |
| REACH Status | False |
| Resistance Properties | Abrasion Resistance; Fi. |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant |
| Roll Length | 100 ' |
| Series | T Series, T |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.2695 |
| Standard Package Weight. | 1.7500 |
| Standards | UL Recognized - E141152. |
| Standards Met | UL Recognized - E141152. |
| Std Ctn Qty | 0 |
| Std Package Height In | 4.35 |
| Std Package Height MM | 110.49 |
| Std Package Length In | 10.5 |
| Std Package Length MM | 266.7 |
| Std Package Width In | 10.3 |
| Std Package Width MM | 261.62 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. UOM | Roll |
| Temperature Range | -40-122 ?F |
| Tube Size | Tube Size |
| Type | Spiral Wrap |
| Type Attributes | Harness |
| UNSPSC | 39131604 |
| UOM EA PK | EA |
| UPC | 07498339694 |
| UPC Code | 074983396948 |
| UPC ID | UPC ID |
| Wall Thickness | 1/16 in, 0.04 in., Wall. |
| Wall Thickness (In.) | 0.04 |
| Wall Thickness (mm) | 1.02 |
| Width | 1/4 in, - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NEP Electronics | T25R-CY | 0.075 | 1200 | 146460 | | Panduit | | 0.075 @ 1200 |
 | Newark | 61AC8574 | 50.58 | 1 | 100 | | PANDUIT | | 50.58 @ 100 |
| Onlinecomponents.com | T25R-CY | 72.66 | 1 | 100 | | PANDUIT | | 72.66 @ 100 |
 | Carlton Bates Company | 07498339694 | 85.95 | 1 | 100 | | PANDUIT | | 85.95 @ 100 |
| us.rs-online.com | 70327841 | 94.42 | 1 | 100 | | Panduit | | 94.42 @ 100 |
 | Zoro | G0794637 | 96.0 | 1 | 100 | 15 | Panduit | 1.75 | 96.0 @ 100 |
 | mecampbell.com | PANT25R-CY | 101.56 | 1 | 100 | 56 | Panduit | | 101.56 @ 100 |
 | Galco | T25R-CY-PNDT | 101.56 | 1 | 100 | | Panduit | 1.75 | 101.56 @ 100 |
 | cbtcompany.com | T25R-CY | 101.56 | 1 | 100 | | PANDUIT | | 101.56 @ 100 |
 | alldataresource.com | PAN-T25R-CY | 102.0 | 1 | 100 | | Panduit | | 102.0 @ 100 |
 | gordonelectricsupply.com | T25R-CY | 107.09 | 1 | 100 | 12 | PANDUIT | | 107.09 @ 100 |
| Digi-Key | 4578993 | 111.2914 | 1 | 100 | | Panduit Corp | | 111.2914 @ 100 |
 | mayerelectric.com | PANT25RCY | 111.84 | 1 | 100 | | PANDUIT | 1.75 | 111.84 @ 100 |
 | jensentools.com | 10017732 | 112.78 | 1 | 100 | | Panduit | | 112.78 @ 100 |
 | Platt.com | 0733795 | 118.72 | 1 | 100 | | Panduit | | 118.72 @ 100 |
 | turtle.com | PAN T25R-CY | 119.67 | 1 | 100 | | Panduit | | 119.67 @ 100 |
| Airline Hydraulics | 2050975 | 122.39 | 1 | 100 | | PANDUIT | | 122.39 @ 100 |
| Graybar | 25063656 | 125.4064 | 1 | 100 | | Panduit | | 125.4064 @ 100 |
| steinerelectric.com | 726127 | 125.93 | 1 | 100 | | Panduit | | 125.93 @ 100 |
