Sealmaster SFT-21

B006MICEY4

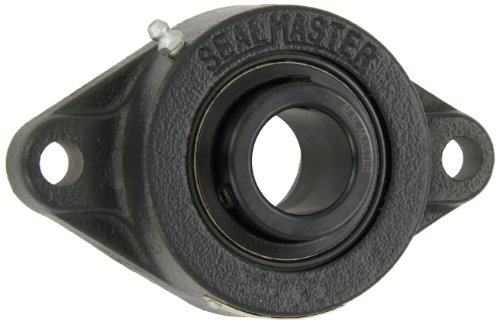

Sealmaster SFT-21 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1-5/16" Bore, 6-1/8" Overall Length, 5-1/8" Bolt Hole Spacing Width, 9/16" Flange Height, ?2 Degrees Misalignment Angle

Sealmaster SFT-21 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1-5/16" Bore, 6-1/8" Overall Length, 5-1/8" Bolt Hole Spacing Width, 9/16" Flange Height, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Back Side to Center Wid.0.75 in
Bearing Insert TypeBall
bearing material:52100 Steel/Black Oxide
Bearing TypeTwo Bolt Flange
Bolt Size1/2 in
bolt size:.5000 in
Bolt Spacing5.125 Inch | 130.18 Mil.
Bore1.313 Inch | 33.35 Mill.
Bore Dia.1 5/16 in
Bore Diameter1 5/16 in
bore type:Round
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Dimension A6 1/8 in
Dimension B5 1/8 in
Dimension C9/16 in
Dimension D1 11/32 in
Dimension E1 3/4 in
Dimension F17/32 in
Dimension G9/16 in
Dimension H3 5/16 in
Dimension J3 3/4 in
Dimension L1 55/64 in
Dimension M1 in
Dimension N11/16 in
Duty SeriesStandard
duty type:Standard Duty
EAN0662461004340
Estimated Weight3.20
Expansion / Non-expansi.Non-expansion
expansion type:Non-Expansion Bearing (.
Family SeriesSealmaster Bearings, SF.
finish/coating:Uncoated
Global Part Number GPN16888
Gross Weight0 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
housing material:Cast Iron
Housing Style2 Bolt Flange Block
housing width:1.3438 in
Inch - MetricInch
inner ring width:1.6875 in
Insert Material52100 Steel/Black Oxide.
Insert Part Number2-15
Item NumberSFT-21
length through bore:1.6875 in
Length Thru Bore1.688 Inch | 42.87 Mill.
Locking DeviceSetscrew, Set Screw
locking device:Set Screw
lubrication type:Lubrication Fitting
ManufacturerSEALMASTER
manufacturer catalog nu.700549
Manufacturer NameREGAL BELOIT
Manufacturer Part Number700549
Mount Hole Center-to-Ce.5.125 in
Mount Hole Center-to-Ce.5.125 in
Mount Hole Size33/64 in
Mounting Bolt Size7/16 in
Mounting Bolts17/32 Inch
Mounting MethodSet Screw
mounting type:Two-Bolt Flange
Net Weight0.2 lbs
Nominal Bolt Circle Dia.5.1 Inch | 130 Millimet.
Number of Mounting Holes2
operating temperature r.Max 220
Other FeaturesSingle Row | Standard D.
Overall Height3 3/4 in
Overall Length6 1/8 in
Overall Width1 3/4 in
overall width:3.7500 in
Part NumberSFT-21
Pilot ConfigurationNo Pilot
price$ 189.85 / each
Product SeriesSFT
RelubricatableYes
replacement bearing:2-15
Seal TypeStandard Felt Seal
seal type:Felt Seal
SealsFelt Labyrinth
series:SFT
Shaft Diameter (in)1.3125 ", 1.3125
Shaft Range1-1.49
titleSFT-21
TypeTwo Bolt Flange
UNSPSC31171501
Weight / kgm1.453
Weight / LBS3.2

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD267873123.01In StockSEALMASTER123.0 @ 1
thumbzoomLily BearingSFT-21161.371In StockSEALMASTER3.1966161.37 @ 1
thumbzoomGalcoSFT-21-SMST248.091In StockSealmaster0.2248.09 @ 1
thumbzoommotorsandcontrol.comSFT-21248.091In StockSealmaster3.2248.09 @ 1
us.rs-online.com73759438258.141In StockSealmaster258.14 @ 1
thumbzoommotionindustries.com00564426275.321In StockSealmaster275.32 @ 1
thumbzoomZoroG7928234327.611In Stock15Sealmaster3.2327.61 @ 1
