Sealmaster SFT-25

B006MICGI8

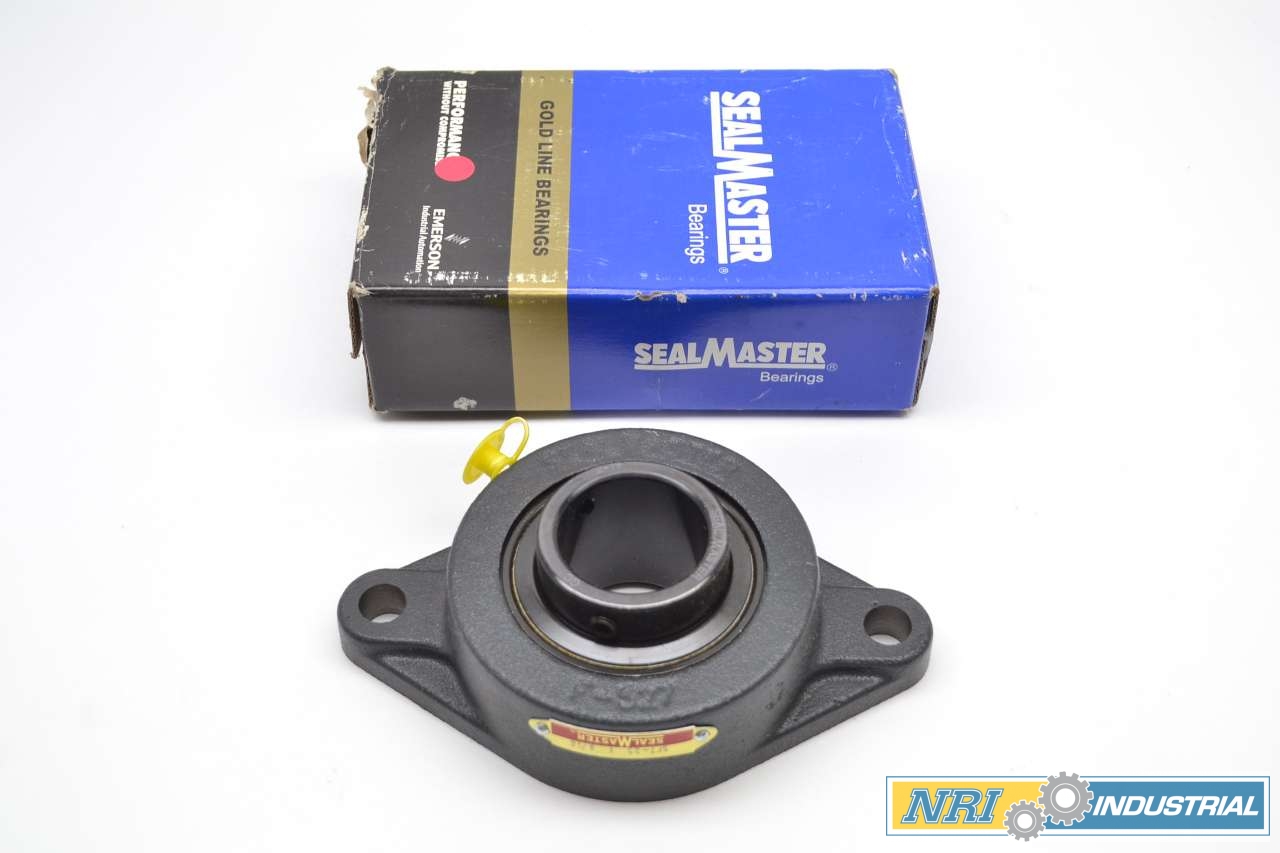

Sealmaster SFT-25 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1-9/16" Bore, 6-3/4" Overall Length, 5-21/32" Bolt Hole Spacing Width, 9/16" Flange Height, ?2 Degrees Misalignment Angle

Sealmaster SFT-25 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1-9/16" Bore, 6-3/4" Overall Length, 5-21/32" Bolt Hole Spacing Width, 9/16" Flange Height, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bearing LubricationSealmaster GoldPlex-HP .
bearing material:52100 Steel/Black Oxide
Bolt Hole Center-to-Cen.5 21/32 in
Bolt Size1/2 in
bolt size:.5000 in
Bolt Spacing5.656 Inch | 143.67 Mil.
Bore1.563 Inch | 39.7 Milli.
Bore Dia.1 9/16 in
bore type:Round
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Country of Origin (subj.Multiple
Dimension A6 3/4 in
Dimension B5 21/32 in
Dimension C9/16 in
Dimension D1 1/2 in
Dimension E2 1/64 in
Dimension F17/32 in
Dimension G9/16 in
Dimension H3 1/2 in
Dimension J4 1/8 in
Dimension L2 1/16 in
Dimension M1 3/16 in
Dimension N3/4 in
Duty SeriesStandard
duty type:Standard Duty
Dynamic Load Capacity7,340 lb
EAN0662461004388
Estimated Weight4.25
Expansion / Non-expansi.Non-expansion
expansion type:Non-Expansion Bearing (.
Finishblack oxide
finish/coating:Uncoated
Global Part Number GPN16923
Gross Weight0 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
housing material:Cast Iron
Housing Style2 Bolt Flange Block
housing width:1.5000 in
Inch - MetricInch
inner ring width:1.9375 in
Insert Material52100 Steel/Black Oxide
Insert Part Number2-19
Item2-bolt Flange Bearing
length through bore:1.9375 in
Length Thru Bore1.938 Inch | 49.225 Mil.
Locking DeviceSetscrew
locking device:Set Screw
Locking TypeSet Screw
lubrication type:Lubrication Fitting
ManufacturerSEALMASTER
manufacturer catalog nu.700553
Manufacturer NameREGAL BELOIT
Mounting Bolts17/32 Inch
Mounting MethodSet Screw
mounting type:Two-Bolt Flange
Nominal Bolt Circle Dia.5.7 Inch | 144 Millimet.
Number of Mounting Holes2
operating temperature r.Max 220
Other FeaturesSingle Row | Standard D.
Overall Height4 1/8 in
Overall Length6 3/4 in
Overall Width2 1/64 in
overall width:4.1250 in
Part NumberSFT-25
Pilot ConfigurationNo Pilot
price$ 204.32 / each
RelubricatableYes
replacement bearing:2-19
Seal TypeStandard Felt Seal
seal type:Felt Seal
SealsFelt Labyrinth
SeriesSFT
series:SFT
Shaft Diameter (in)1.5625
Shaft Locking TypeSet Screw
Static Load Capacity4,467 lb
Temp. Range-20 Degrees to 220 Deg.
titleSFT-25
TypeTwo Bolt Flange
UNSPSC31171501
Weight / kgm1.93
Weight / LBS4.5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialB448123137.551In StockSEALMASTER137.55 @ 1
thumbzoomLily BearingSFT-25173.671In StockSEALMASTER4.246173.67 @ 1
thumbzoomapexindustrialautomation.comSFT-25268.491In StockSealmaster268.49 @ 1
thumbzoomGalcoSFT-25-SMST277.891In StockSealmaster277.89 @ 1
thumbzoommotorsandcontrol.comSFT-25277.891In StockSealmaster4.25277.89 @ 1
us.rs-online.com73759463289.141In StockSealmaster289.14 @ 1
Grainger44A564302.01In Stock15SEALMASTER302.0 @ 1
thumbzoommotionindustries.com00564479311.311In StockSealmaster311.31 @ 1
thumbzoomZoroG0105981349.031In Stock20Sealmaster349.03 @ 1
