Sealmaster SFT-32

B006MICIUE

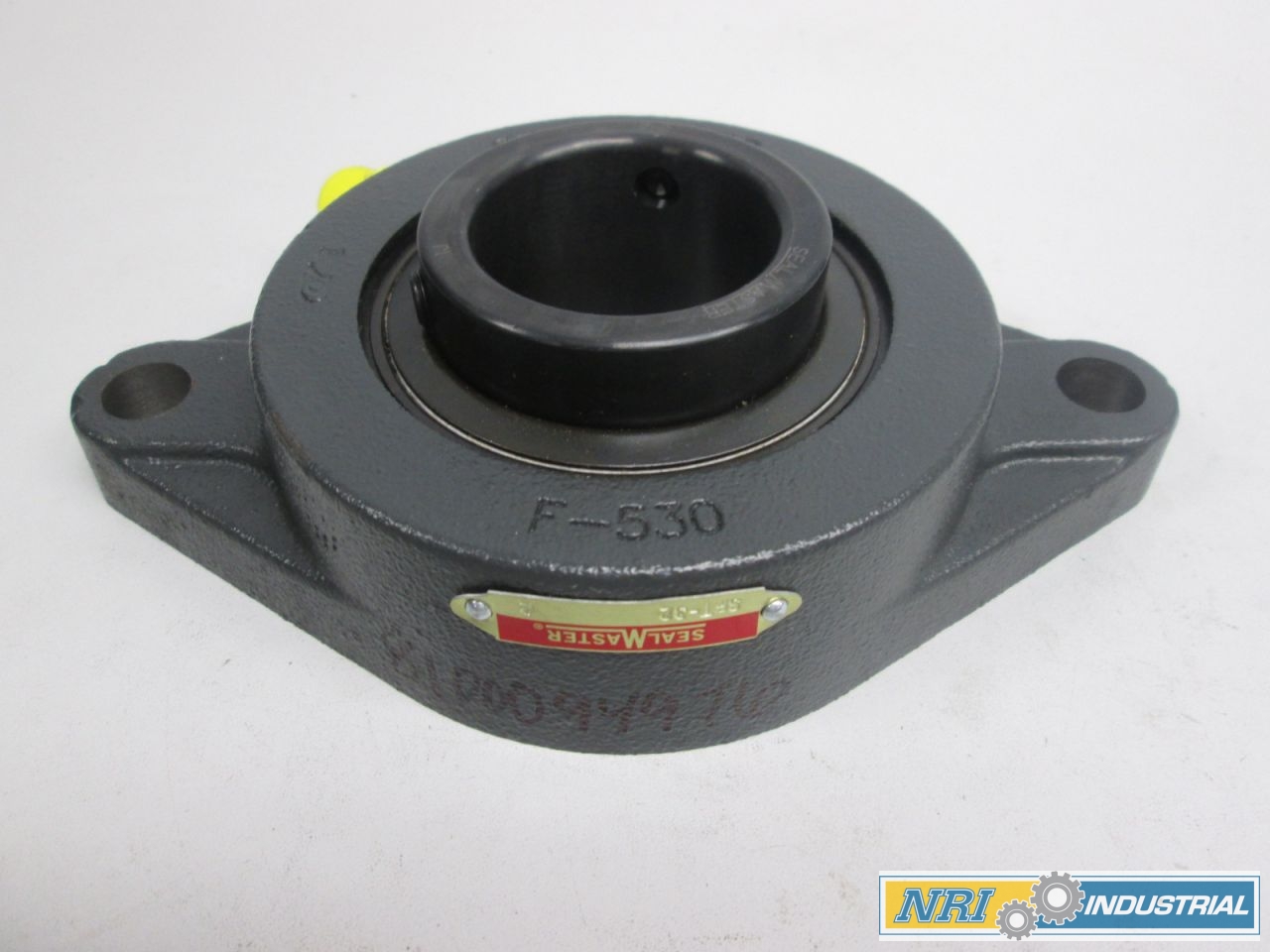

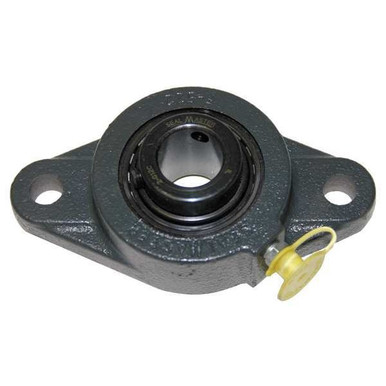

Sealmaster SFT-32 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 2" Bore, 8-1/2" Overall Length, 7-1/4" Bolt Hole Spacing Width, 13/16" Flange Height, ?2 Degrees Misalignment Angle

Sealmaster SFT-32 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 2" Bore, 8-1/2" Overall Length, 7-1/4" Bolt Hole Spacing Width, 13/16" Flange Height, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Back Side to Center Wid.0.984 in
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Size5/8 in
Bolt Spacing7.25 Inch | 184.15 Mill.
Bore2 Inch | 50.8 Millimeter
Bore Dia.2 in
Bore Diameter2 in
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Current Stock11
Dimension A8 1/2 in
Dimension B7 1/4 in
Dimension C13/16 in
Dimension D1 3/4 in
Dimension E2 5/16 in
Dimension F21/32 in
Dimension G13/16 in
Dimension H4 1/4 in
Dimension J5 1/4 in
Dimension L2 23/32 in
Dimension M1 5/16 in
Dimension N7/8 in
Duty SeriesStandard
EAN0662461004463
Estimated Weight8.35
Expansion / Non-expansi.Non-expansion
Family SeriesSealmaster Bearings, SF.
Global Part Number GPN16957
Gross Weight0 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Flange Block
Inch - MetricInch
Insert Material52100 Steel/Black Oxide.
Insert Part Number2-2
International ShippingNo
Item NumberSFT-32
Length Thru Bore2.188 Inch | 55.575 Mil.
Locking DeviceSetscrew, Set Screw
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Manufacturer Part NumberSFT-32
Mount Hole Center-to-Ce.7.25 in
Mount Hole Center-to-Ce.7.25 in
Mount Hole Size41/64 in
Mounting Bolt Size9/16 in
Mounting Bolts21/32 Inch
Mounting MethodSet Screw
MpnSFT-32
Net Weight0.5219 lbs
Nominal Bolt Circle Dia.7.3 Inch | 184.2 Millim.
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height5 1/4 in
Overall Length8 1/2 in
Overall Width2 5/16 in
Part NumberSFT-32
Pilot ConfigurationNo Pilot
price$ 198.27 / each
Product SeriesSFT
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)2, 2 "
Shaft Range2-2.49
SKUZO-G8122091
SubCategoryPower Transmission
titleSFT-32
TypeTwo Bolt Flange
UNSPSC31171501
UPC Code662461004463
Weight / kgm3.81
Weight / LBS8.4

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD26786547.351In StockSEALMASTER47.35 @ 1
thumbzoomLily BearingSFT-32168.531In StockSEALMASTER8.382168.53 @ 1
thumbzoomGalcoSFT-32-SMST218.041In StockSealmaster0.5219218.04 @ 1
thumbzoommotorsandcontrol.comSFT-32218.041In StockSealmaster8.35218.04 @ 1
thumbzoomRadwellSFT-32233.511SEALMASTER7.75233.5 @ 1
us.rs-online.com72115639242.271In StockSealmaster242.27 @ 1
thumbzoomPurvisSFT-32263.541In StockSealmaster263.54 @ 1
thumbzoomZoroG8122091272.99119Sealmaster8.3272.99 @ 1
thumbzoomsimsupply.comZO-G8122091316.41111Sealmaster316.41 @ 1
Grainger44A571349.751In Stock15SEALMASTER349.75 @ 1
