Schneider Electric PJL36060M68

B00CONM7DY

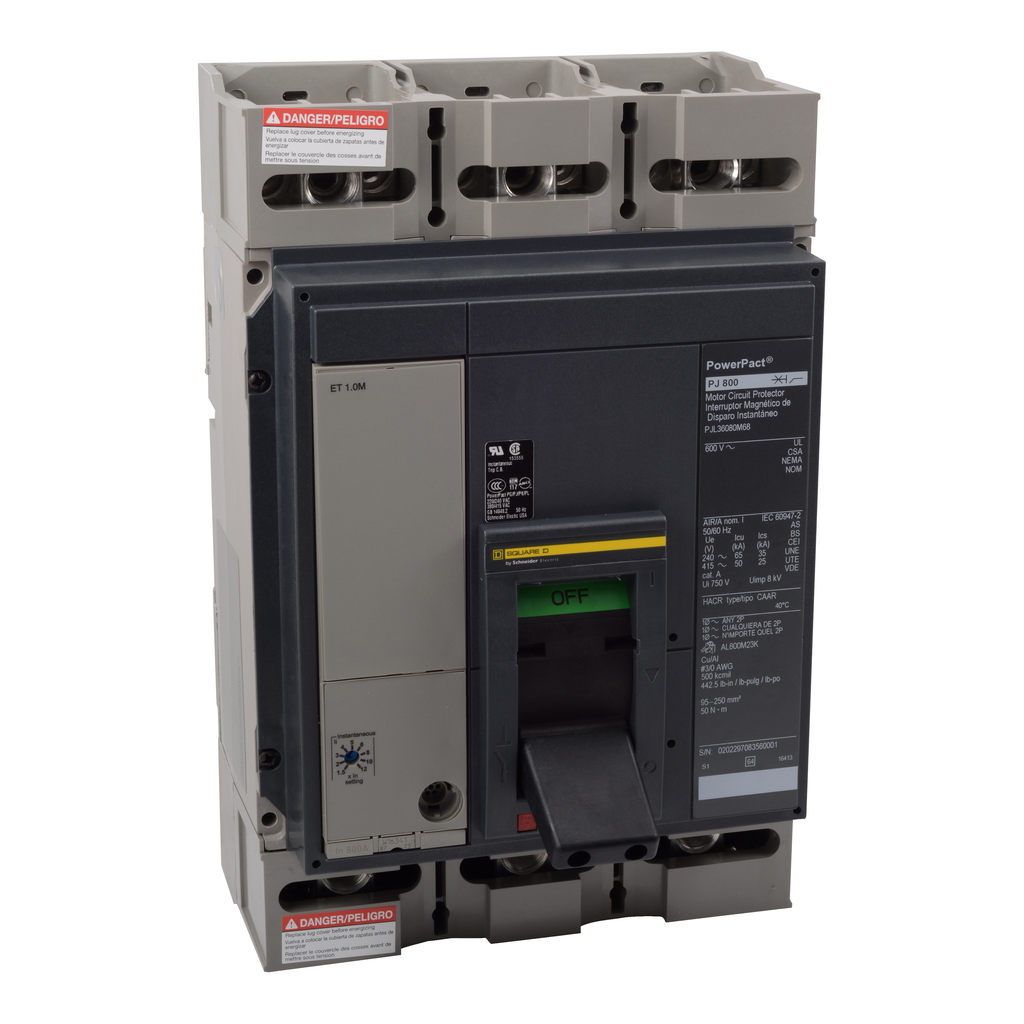

SCHNEIDER ELECTRIC Motor Circuit Protector 600V 600A PJL36060M68 Manual Starter 600Vac 4Amp Iec

SCHNEIDER ELECTRIC Motor Circuit Protector 600V 600A PJL36060M68 Manual Starter 600Vac 4Amp Ieczoom

Attributes

Key Value
[Ics] Rated Service Bre.35 kA 240 V AC 50/60 Hz.
[Ith] Conventional Free.600-600 A
[Ue] Rated Operational .600 V AC 50/60 Hz UL 489
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
ApplicationDistribution
Awg Gauge3 x AWG 3/0...3 x 500 k.
AWG Range3 x AWG 3/0...3 x 500 k.
BrandSquare D, Square D by S.
Breaking CapacityAIR 100 kA 240 V AC 50/.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberPJL36060M68
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1407012EN
ConnectionLugs line;lugs load; 3 .
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating600A
Depth8.05 in., 8.05 in
Device ApplicationDistribution
DisplayPJL36060M68 Motor Circu.
ECCNEAR99
Electrical Connectionlugs line || lugs load
Environmental DisclosureENVPEP1407012EN
Eu Rohs DirectiveCompliant
FrameP-FRAME
Gtin00785901915973
Height12.86 in, 12.86, 12.86 .
Height UOMInch
Interrupt Rating25kA, 100 KA 240 V AC-6.
Ip Degree Of Protectionfront cover IP40
Item TypeMotor Circuit Protector
Length25 mm, 8.05
Length UOMInch
Line Rated Current600-600 A
Local Signalling1 trip indicator green)
Made in USAYes
Magnetic Tripping Curre.1200-10000 A
ManufacturerSchneider Electric
Mercury FreeYes
Mounting Modeunit mount lug)
Mounting Supportlug
MpnPJL36060M68
Net Weight32 lb(US)
Network Frequency50/60 Hz
No. of Poles3-Pole
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Phase3
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact P
Product Or Component Ty.Motor Circuit Protector
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage600V AC 50/60 Hz UL 489
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPJL
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL800M23K
Tightening Torque50-50 N.m 95-240 mm? (3.
Torque50-50 N.m 95-240 mm? (3.
Trip TypeElectronic, basic, ET 1.
Trip Unit NameET 1.0
Trip Unit TechnologyElectronic, basic, ET 1.
UNSPSC39121616
Upc785901915973
UPC785901915973
Voltage600
Voltage Rating600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width8.27 in, 8.27 in., 8.27
Width UOMInch
Wire Stripping Length25 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comPJL36060M681397.81In StockSquare D1397.8 @ 1
thumbzoomgordonelectricsupply.comPJL36060M686635.01In Stock10SQUARE D6635.0 @ 1
thumbzoomcrescentelectric.com10124776768.321In StockSquare D by Schneider Electric6768.32 @ 1
thumbzoomRadwellPJL36060M686900.01In StockSCHNEIDER ELECTRIC SQUARE D6900.0 @ 1
Newark52T47466901.911In StockSQUARE D BY SCHNEIDER ELECTRIC6901.91 @ 1
thumbzoommayerelectric.comSQDPJL36060M687236.381In StockSQUARE D32.07236.38 @ 1
Graybar253737318467.21In StockSquare D (Schneider Electric)8467.2 @ 1
