TELEMECANIQUE SENSORS XS612B1MAL5

mpnXS612B1MAL5
brandname: SquareD
manufacturername: SquareD

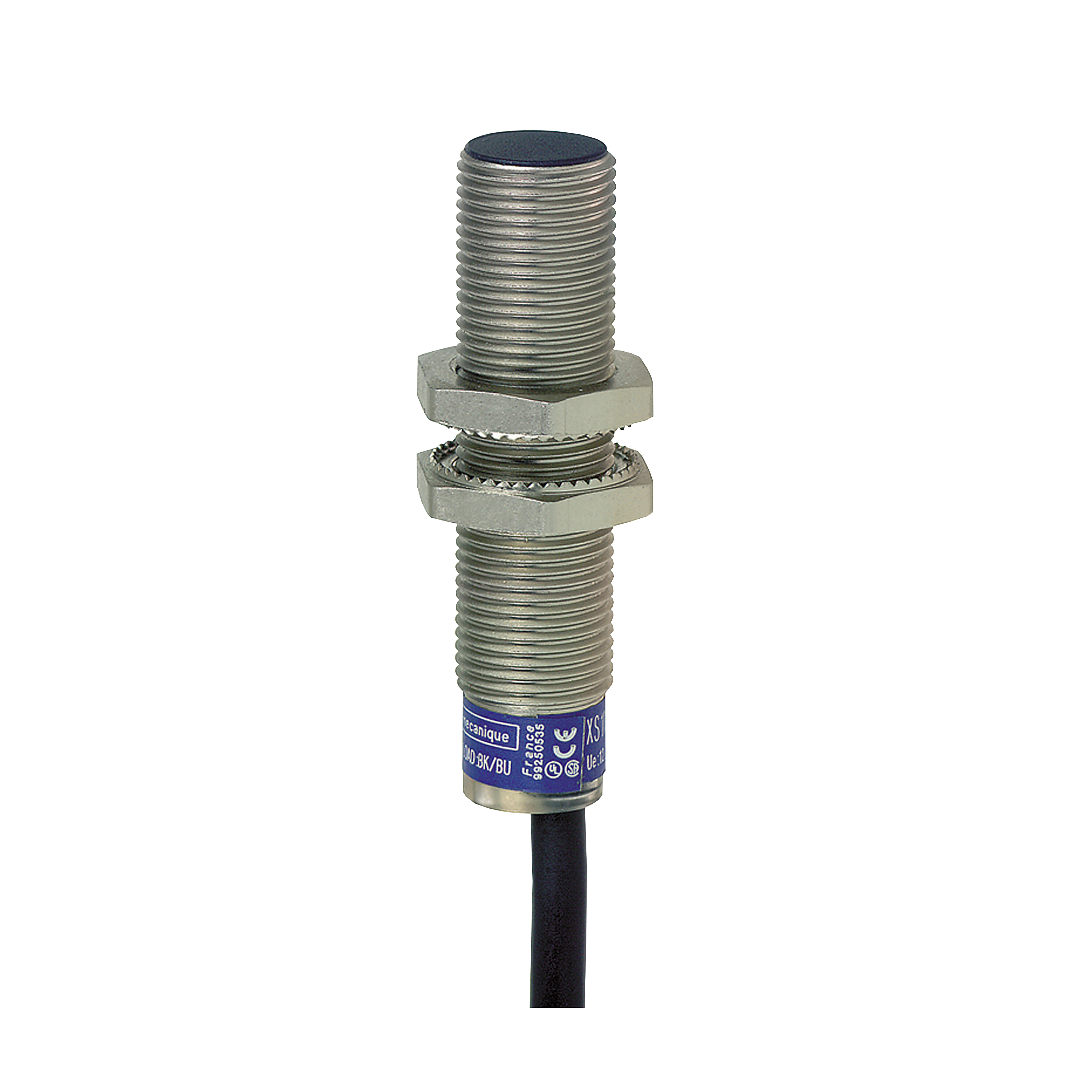

Telemecanique XS612B1MAL5 Universal Series Inductive Proximity Sensor, Multi-Function, Metal 12-mm Barrel, 2-Wire AC/DC Wiring, PNP Input, NO Output, 5-m Electrical Cable

Brand: TELEMECANIQUE SENSORS
PartNumber: XS612B1MAL5
Model: XS612B1MAL5
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schneider Electric
Label: Schneider Electric

Attributes

Key	Value
[Sn] Nominal Sensing Di.	4 mm
[Us] Rated Supply Volta.	24...240 V AC/DC 50/60 .
Ambient Air Temperature.	-25-70 ?C
Ambient Air Temperature.	-40-85 ?C
Body material	nickel plated brass
Body Type	fixed
Cable Composition	2 x 0.34 mm?
Cable Length	5 m
California Proposition .	Diisononyl phthalate (D.
Circularity Profile	ENVEOLI1110045
Condition	New
Connection	lead 5m
Connection type	5 m Cable
Contact Configuration	1NO
Detection Face	frontal
Detector Flush Mounting.	flush mountable
Differential Travel	1...15% of Sr
Discrete Output Function	1 NO
Electrical Connection	cable
Enclosure Material	nickel plated brass
Enclosure Type	IP68/IP69K
Environmental Conditions	-40 to 185 deg F Storag.
Environmental Disclosure	ENVPEP111006EN
Eu Rohs Directive	Pro-active compliance (.
Front Material	PPS
Ip Degree Of Protection	IP68 double insulation .
IP rating	IP68,
Kind of forehead	embedded
Length	54 mm
Manufacturer	Square D, SCHNEIDER ELE.
Manufacturer series	XS
Marking	CE
Material	metal, nickel plated br.
Max. operating current	200mA
Maximum Delay First Up	20 ms
Maximum Delay Recovery	0.2 ms
Maximum Delay Response	0.5 ms
Maximum Residual Current	0.8 mA open state
Measuring Range	0 to 0.13
Mercury Free	Yes
Mounting type	Flush
Net Weight	0.195 kg
Operating temperature	-25...70?C
Operating Zone	0-3.2 mm
Output Circuit Type	AC/DC
Output configuration	NO
Output type	Discrete
Overall length	54mm
Product Certifications	UL \|\| CSA
Range	0...4mm
Range Of Product	Telemecanique Inductive.
Reach Regulation	Reference contains Subs.
Rohs Exemption Informat.	Yes
Sensing Distance	0.16
Sensing Method	Inductive
Sensing Position	Front
Sensing Range	> 0.1...0.16 in (> 2.5..
Sensor Design	cylindrical M12
Sensor Name	XS6
Sensor Type	inductive proximity sen.
Series	XS6
Series Name	general purpose
Shock Resistance	50 gn 11 ms IEC 60068-2.
Size	54 mm, 53
Status Led	output state 1 LED yell.
Supply Voltage Limits	20-264 V AC/DC
Sustainable Offer Status	Green Premium product
Switch housing	M12
Switching Capacity In Ma	5...200 mA AC/DC
Switching frequency max	1kHz
Temperature Rating (Deg.	-25 to 70
Thread Type	M12 x 1
Threaded Length	42 mm
Type	Fixed Cylindrical Long .
Type Of Output Signal	Discrete
Type of sensor	proximity
Vibration Resistance	25 gn +/- 2 mm 10-55 Hz.
Voltage Rating	20 to 264/24 to 240
Warranty	18 months
Weight	2.000000
Wire Insulation Material	PvR
Wiring Technique	2-wire

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
TME	XS612B1MAL5	72.0	1	In Stock		SCHNEIDER ELECTRIC		72.0 @ 1
standardelectricsupply.com	2219066	84.17	1	In Stock		Square D (Schneider Electric)		84.17 @ 1
gordonelectricsupply.com	XS612B1MAL5	84.59	1	In Stock	10	SQUARE D		84.59 @ 1
industrialrefrigerationparts.com	XS612B1MAL5	85.05	1	In Stock		Square D	2.0	85.05 @ 1
mayerelectric.com	SQDXS612B1MAL5	93.01	1	In Stock		SQUARE D	0.429	93.01 @ 1
Radwell	XS612B1MAL5	100.0	1	In Stock		SCHNEIDER ELECTRIC TELEMECANIQUE		100.0 @ 1
mostelectric.com	XS612B1MAL5	117.0	1	3		SQUARE D/TELEMECANIQUE		117.0 @ 1
kempstoncontrols.co.uk	XS612B1MAL5	128.49525	1	In Stock		Schneider		128.49525 @ 1
